Diesel Mobile Ntsia Hlau Cua Compressor
video
Diesel Mobile Ntsia Hlau Cua Compressor

Diesel Mobile Ntsia Hlau Cua Compressor

Qhov no diesel ntsia hlau cua compressor portable compressor yog tsim tshwj xeeb rau mine drilling rigs nrog kev ntseeg siab, kev ua haujlwm yooj yim thiab kev saib xyuas, zoo zog sib npaug thiab kev thauj mus los yooj yim.
Xa kev nug
Hauj lwm lawm



Specifications



Qauv

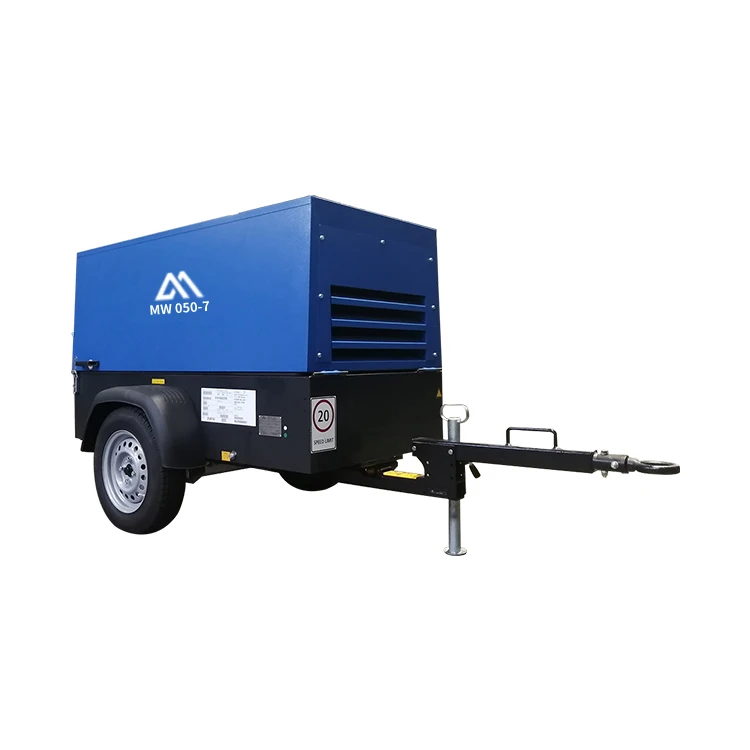

MW 050-7

MW 120-7

MW 100-10

MW 100-14

Cua siab (bar)

7

7

10

14

FAD (m³ / min)

5

12

10

10

Lub cev muaj zog (Kw)

33

96

96

96

Max. ceev ntawm kiv puag ncig (rpm)

2950

2300

2300

2300

Qhov Loj (mm)

1940*1200*1240

2350*1300*1550

2350*1300*1550

2350*1300*1550

Qhov hnyav (kg)

650

1470

1470

1470



Khoom nthuav dav



  • Lub npe: miningwell
  • Ntawv pov thawj: CE, ISO
  • Yam tsawg kawg nkaus kom muaj nuj nqis: 1set
  • Pob Paub meej: 40HQ-20GP
  • Lub sij hawm xa tuaj: 15-20 hnub
  • Cov nqe lus them nqi: L / C, T / T, Western Union



Khoom upgrade nta

1) Tag nrho cov xov tooj ntawm tes ntsia hlau compressors tau ua kom zoo nrog cov ncej muaj zog, kev tiv thaiv zoo dua thiab kev nyab xeeb; lub ru tsev muaj zog nqa lub peev xwm nrog roj hmab tiv thaiv strips, uas tuaj yeem ua tau raws li cov neeg siv khoom xav tau.

2) Txhua lub siab hoses txuas nrog cov kav hlau nrog zoo sealing los tiv thaiv roj hmab los ntawm kev laus, tsis txhob hnav thiab zoo nkauj tsos.

3) Patented tsim kev nyab xeeb huab cua lim chav tsev thiab stainless hlau inlet yeeb nkab tau txais yuav los xyuas kom meej cov plua plav lim muaj peev xwm thiab zoo dua tiv thaiv cov pa phem vim roj hmab hose puas.

Diesel Screw Air Compressor 1

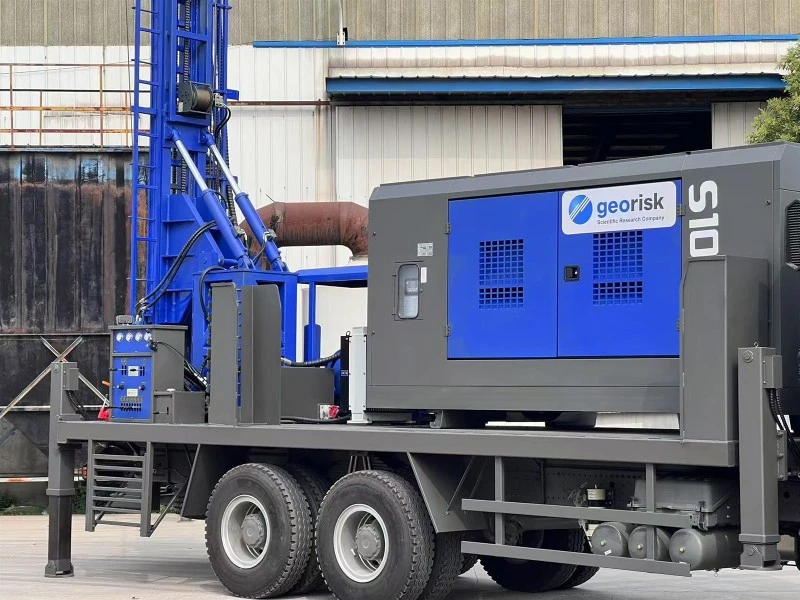

Diesel Screw Air Compressor 2

4) Lub tshuab cua txias tshiab tau txais kev ywj pheej modular chav tsev, kho los ntawm cov txheej txheem yam tsis muaj qhov taw tes siab, nrog cov ntaub qhwv cushioning, uas zoo tshem tawm qhov kev puas tsuaj ntawm lub tshuab txias vim qhov deformation ntawm daim ntaub; lub tsev nyob ywj pheej puas tuaj yeem hloov tau yooj yim yam tsis muaj disassembling lub tshuab ua kom txias.

5) Diesel mobile compressors yog tag nrho cov nruab nrog thoob ntiaj teb hom controllers nrog optimized interfaces uas yuav tsum tau tsuas yog 3 hloov mus ua hauj lwm, hwj chim, on thiab off. Tsis siv neeg sov so, thauj khoom thiab tshem tawm cov txheej txheem, kev tswj siab thiab lub cav roj txhaj tshuaj tshem tawm kev kub siab kaw thiab roj surge. Controller yog dej thiab noo noo resistant.

6) Los ua kom tiav nrog cov ntaub ntawv thiab cov cuab yeej lub thawv kom yooj yim nkag mus rau txhua yam kev saib xyuas kom zoo dua cov cuab yeej tswj, khaws cov ntaub ntawv thiab kev siv lub tshuab kom zoo dua.

7) Lub tshuab hluav taws xob portable nrog lub tshuab hluav taws xob hluav taws xob thiab hluav taws xob hloov rau kev nkag tau yooj yim thiab kev tiv thaiv, yooj yim thiab kev nyab xeeb.

8) Tshiab tsim kev tiv thaiv cua txias kom zoo dua qub thiab kev tiv thaiv kev nyab xeeb. Tag nrho lub cev suab absorbing paj rwb thiab rear tsheb muffler tsim ua lub suab nrov ua haujlwm 40% qis dua li cov khoom qub.

Diesel Screw Air Compressor 4
Diesel Screw Air Compressor 5



Kev Tswj Xyuas Zoo



Miningwell muaj cov txheej txheem QC ua tiav. Thawj zaug yog kev tshuaj xyuas ntau lawm hauv lub sijhawm: txhawm rau xyuas kom meej tias cov khoom tsim tau raws li cov lus qhia tshwj xeeb thiab cov khoom tsis raug puas tsuaj. Qhov thib ob yog tag nrho lub Hoobkas tshuaj xyuas: txhua yam khoom siv thiab cov cuab yeej drilling ntawm Miningwell yuav raug tshuaj xyuas lub Hoobkas nruj. Tom qab ntawd muaj kev kuaj xyuas kev nyab xeeb: txhawm rau kom muaj kev nyab xeeb ntawm cov khoom hauv lub thawv. Thaum kawg, tsis tu ncua mus ntsib cov neeg siv khoom, kev pabcuam zoo tom qab muag thiab kev saib xyuas cov khoom siv export.



Shipping & Them Nyiaj



Txhua daim ntawm Miningwell cov cuab yeej thiab cov khoom siv drilling tau dhau los ua kev kuaj xyuas kev nyab xeeb kom ruaj ntseg ntawm cov khoom thauj hauv lub thawv.



Peb txoj kev them nyiaj: credit card, L / C, T / T, Western Union, thiab peb txhawb nqa shipping los ntawm huab cua thiab hiav txwv.

Diesel Screw Air Compressor 3



Cim npe nrov: Tuam Tshoj Diesel Mobile Ntsia Hlau Cua Compressor manufacturers, lwm tus neeg, Hoobkas
