一, Dab tsi yog Powerer nto laum RIG RIG?
Top Hammer nto laum Rig yog qhov sib zog ua haujlwm hauv lub zog, thiab muaj kev sib hloov ntawm lub taub hau tsheb, thiab muaj cov tshuab hluav taws xob nyuaj, thiab yog siv dav hauv:
Qhib-Pine Mine Blasting Qhov Kev Siv
Lub hauv paus kev khawb hauv txoj kev tsheb ciav hlau thiab kev tsheb nqaj hlau
DRILLING hauv pob zeb chaw ua haujlwm thiab chaw sib quav
Kev tsim hluav taws xob loj loj xws li cov chaw nres tsheb hydroorkower
2, Yuav ua li cas sab saum toj rauj nto laum rig ua haujlwm
Sab saum toj rauj xyaum ua haujlwm ua ke kom tiav cov haujlwm drilling los ntawm peb lub ntsiab:
Cuam tshuam:Lub pob zeb hydraulic laum nyob rau sab saum toj tsim kev cuam tshuam ntau zog, uas yog kis tau rau laum me ntsis los ntawm kev txiav lub pob zeb .
Kev sib hloov:Lub cav Laum tau tsav los ntawm kev ywj pheej teb lub cev muaj zog kom sib koom tes nrog cov kev cuam tshuam rau daim ntawv txiav .
Cov ntawv qaij:Cov txheej txheem thev naus laus zis siv cov siab ruaj khov qis rau lub laum me ntsis los xyuas kom meej pob zeb tawg .
Tsis tas li ntawd, lub drilling rig yog nruab nrog cov plua plav tshem tawm, tsis siv neeg lub pas dej hloov chaw, thiab lwm yam kev nyab xeeb kom ua tiav kev nyab xeeb thiab kev ua haujlwm lom zem.
3, Top Rauj nto laum RIG Cov ntsiab lus tseem ceeb
Sab saum toj rauj
Ntsia nyob rau pem hauv ntej kawg ntawm cov nqaj feed, tawm high-frecency cuam tshuam lub zog ....
Feem ntau hydraulic tsav, qhov cuam tshuam zaus tuaj yeem mus txog 2500-3000 lub sij hawm / feeb.
Noj Bewb
Siv los txhawb nqa thiab coj cov kev txav ntawm lub laum, thiab tuaj yeem hloov kho ntsug lossis ntawm lub kaum ntse ntse los yog.
Laum Qws System
Siv t series (xws li T38, T45, T45, T45, T45, T45, T45, T45, T41) Hollow hexagonal lossis roundchaw rau lub pob zeb laum me ntsis {}}
HYDRAULIC Fais fab System
Muab kev tsav tsheb rau pob zeb tho, cov tshuaj laus, kev sib hloov, crawlers, thiab lwm yam.
Plua Plav Tawm System
Qhuav los yog ntub dej tshem tawm, txo cov plua plav plua plav thiab txhim kho kev nyab xeeb kev nyab xeeb .
Ncig Teb Chaws Ntaus
Feem ntau crawler hom, haum rau rugged street; Qee cov qauv yog whoved .
Operating system

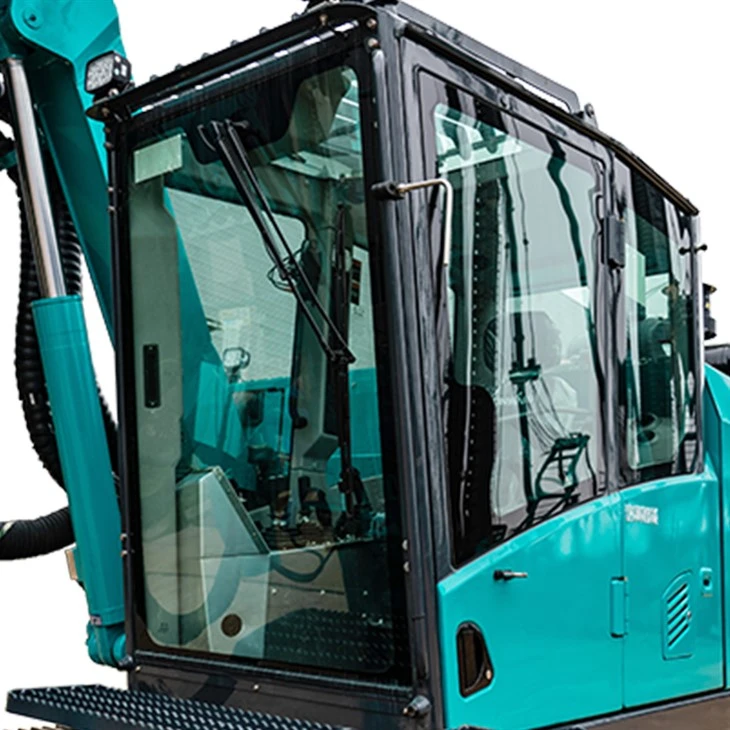

Kev ntsuas hluav taws xob niaj hnub no nruab nrog tus cab, LCD tswj interface, thiab txawm tias kev txhawb nqa wireless chaw taws teeb lossis chaw ua haujlwm tej chaw ua haujlwm {}}
4, Top Rauj nto laum Rig kev zoo thiab cov yam ntxwv
Ceev drilling ceev
Kev cuam tshuam siab ntau zaus thiab muaj zog, haum rau pob zeb nyuaj .
Siab Zoo Nkauj Zoo
Ruaj khov Borehole txoj kab uas tsis pom thiab me me deitection, conducive kom meej blasting tsim {}}
Muaj roj ua tau zoo
Piv nrog dth drilling rigs, nws yog qhov ua tau zoo dua hauv pob zeb nyuaj thiab muaj qis dua kev noj hluav taws xob .
Kev loj ntawm kev txawj ntse
Kev ntsuas hluav taws xob niaj hnub ua haujlwm xws li GPS tso tseg, Drilling cov ntaub ntawv kaw cia, thiab tsis siv neeg lub pas nrig hloov kev hloov pauv system {}}
Yooj yim txij nkawm
Modular tsim, cov khoom tseem ceeb yog qhov yooj yim los hloov thiab tswj .
5, sab saum toj rauj vs . dth
| yam haujlwm | Toping Rauj Drilling | DTH DRILLING |
|---|---|---|
| Muaj cuab yeej siv pob zeb | Nruab nrab-nyuaj rau cov pob zeb nyuaj | Nyuaj rau kev nyuaj pob zeb, cov khaubncaws sab nraud povtseg |
| Drilling Diam | Me me rau nruab nrab aperture (64-127 mm) | Nruab nrab rau cov aperture loj (90-300mm) |
| DRILLING qhov tob | Nruab nrab (<40 m) | Larger (>100m) |
| Ua tau zoo | Siab (zoo tshaj plaws rau nruab nrab-tawv pob zeb) | Siab dua (zoo dua efficiency hauv lub pob zeb nyuaj) |
| Kev Siv Zog / Economic Efficiency | Tsawg, Tsawg Zog Siv Kev Siv Ib | Kev siv nkev siv roj ntau, tus nqi siab |
6, Xaus
Lub rauj sab saum toj laum rig official greation thiab fertic rauv taws thiab tswj tau cov kev daws teeb meem sab saum toj yog qhov ua tau zoo tshaj plaws {}}
Yog tias koj muaj hom kev xav tau tshwj xeeb (pob zeb yam, qhov tob, Kuv tuaj yeem pab koj pom zoo cov qauv tsim nyog thiab muab cov qauv kev txhawb nqa kom tsim nyog thiab muab cov qauv kev txhawb nqa kom tsim nyog thiab muab cov qauv kev txhawb nqa kom tsim nyog thiab muab cov qauv kev pab tsim nyog thiab muab cov khoom lag luam tsis tsim nyog txhawb {}}

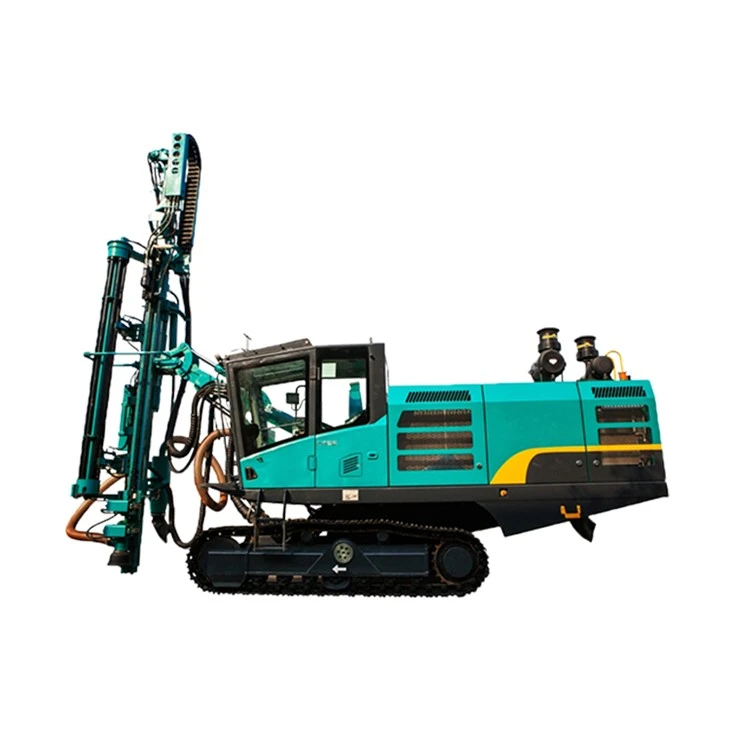

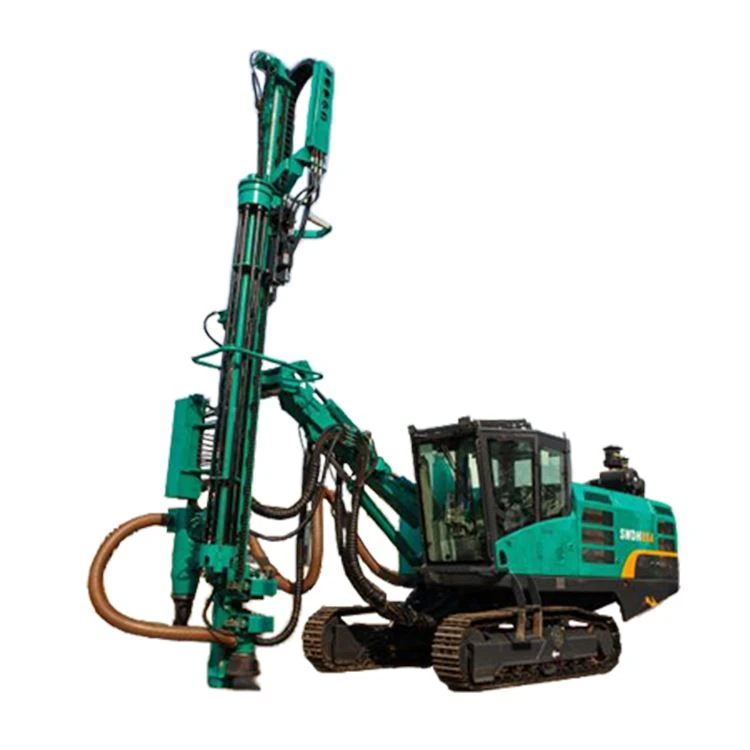

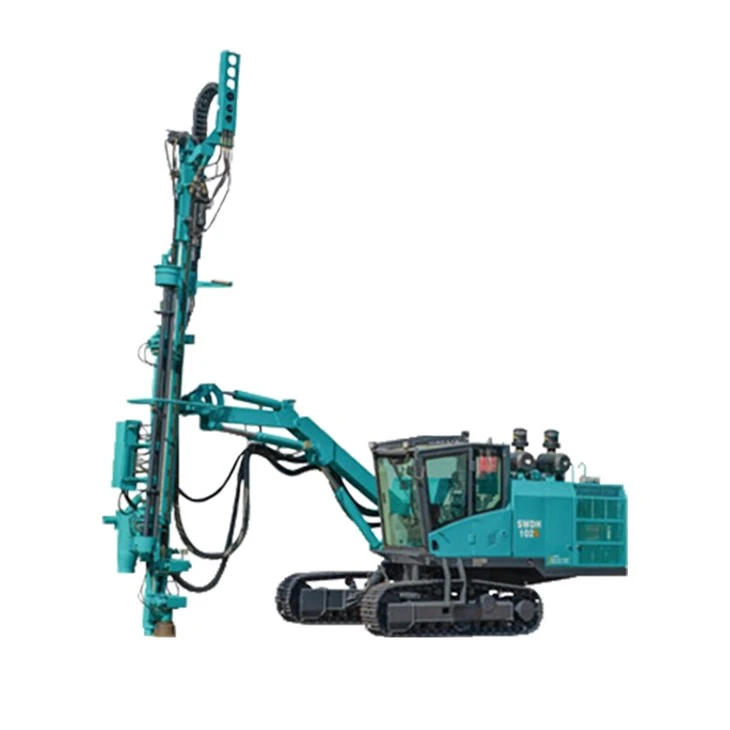

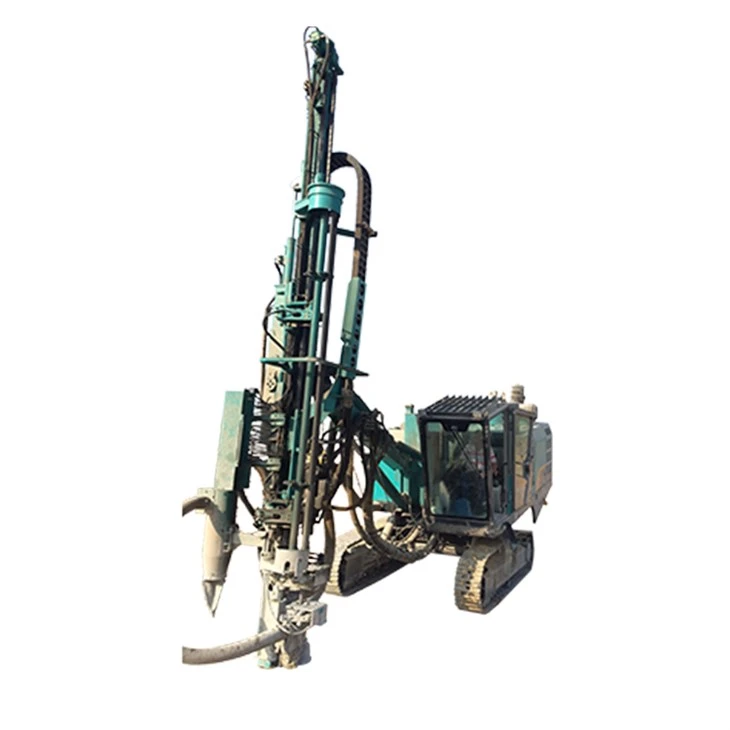

Khoom Qhia Qhia
Qhov kev sib tsoo sab saum toj laum rig los ua qhov haum nrog cov pob zeb hydraulic, thiab ua tau zoo nyob rau hauv kev ua hauj lwm druminate ua hauj lwm {}}
Cov pob zeb laum-huab cua compressor-cav muaj zog ntawm SWDH series qhib qhov ntau tshaj plaws ntawm cov khoom siv hydraulic ntawm cov hydraulic lub rig yog:
1. high-power Hydraulic pob zeb laum, nrog rau kev pheej hmoo loj lub zog thiab txuag cov cuab yeej drilling;
2. Cov khoom sib xyaw ua ke yog cov khoom lag luam nrov thoob ntiaj teb, nrog kev ntseeg tau zoo, kev ua haujlwm siab;
3. pob zeb laum-cua compressor-cav sib txuam, kev lag luam ntau dual ua haujlwm zoo thiab ua haujlwm qis;
4. tag nrho crawler hydraulic drilling Rig muaj cov qauv compact, me me, nrawm nrawm nrawm thiab muaj zog tawm ntawm txoj kev muaj zog;
5. Hydraulic dth drilling Rig Saws ntawm ib lub sij hawm drilling qhov tswj hwm thiab ceev thiab ceev.
6.} nws siv cov lus qhia sib tw-kos cov qauv sib tw ntawm cov qauv hlau npaj ua ke thiab muaj zog thiab kev qhia zoo}
7.}} Ntau lub qhov drilling, ntsug, inclined Azimuth li cas tuaj yeem ua kom drilling.
8.} Cov ntse ib yam hauv qab tswj cov kab ke, kho kom meej ntawm lub kaum thiab tob.
{{{0} Mus npaj, qhov kev npaj ua raws kev npaj, qhov kev taw qhia, tso tawm nrawm.
Daim ntawv thov
Hydraulic rig drilling tshuab tuaj yeem siv rau cov pob zeb blasting drilling hauv kev cav, kev cog qoob loo, thiab chaw nres tsheb hydroking.
Thauj & Them Nyiaj
Txhua txhua daim ntawm cov khoom siv miningwell thiab drilling rig undergoes qhov ruaj nrob kev ruaj ntseg kos kom ntseeg tau tias kev nyab xeeb ntawm cov thawv thauj khoom hauv lub thawv {}}
Peb txoj kev them nyiaj: Daim npav rho nyiaj, L / C, T / T, Western Union, thiab peb txhawb nqa los ntawm huab cua thiab los ntawm hiav txwv .
|
Kev tsis muaj |
Swdh89s |
SWDH10T |
Swdh115f |
|
Ua haujlwm tsis muaj |
|||
|
Qhov ntau pua (mm) |
64-115 |
76-127 |
76-127 |
|
Laum Qws Qauv |
T38,T45,T51 |
T45,T51 |
T38,T45,T51 |
|
Laum Qws Ntev (hli) |
3660 |
3660 |
3050 |
|
Economic Drilling Qhov tob (MM) |
24 |
24 |
21 |
|
Hydraulic Pob Zeb Drifter |
|||
|
Kev Cuam Tshuam Lub Zog (KW) |
14 |
18 |
20 |
|
Kev sib hloov Torque (NM) |
700 |
1000 |
1300 |
|
Kev sib hloov ceev (NM) |
0-180 |
0-150 |
0-175 |
|
Lub cav diesel |
|||
|
Tus qauv |
Miv C7.1 |
Miv C7.1 |
QSB4.5 |
|
Lub Hwj Chim (Kw / RPM) |
168/2200 |
168/2200 |
97/2200 |
|
Roj Tank (L) |
450 |
450 |
300 |
|
Cua Compressor |
|||
|
Siab (Bar) |
8 |
10 |
/ |
|
F . . d (m3 / min) |
8 |
10 |
/ |
|
Laum Caj Npab |
|||
|
Ntaus |
Caj Npab Folding |
Caj Npab Folding |
Ib Leeg Ncaj |
|
Lifting kaum sab xis (degree) |
+70~-10 |
+70~-10 |
-30~+45 |
|
Folding kaum sab xis (degree) |
65~165 |
65~165 |
/ |
|
Viav Vias Lub (Qib) |
+20~-30 |
+20~-30 |
+30~-30 |
|
Ua Ntej Ntu |
|||
|
Ua ntej ntev (hli) |
7300 |
7300 |
6700 |
|
Kev them nyiaj stroke (hli) |
1200 |
1200 |
1200 |
|
Tom ntej Lub Kaum (Qib) |
140 |
140 |
140 |
|
Tig lub kaum sab xis (degree) |
-20~90 |
-20~90 |
-20~90 |
|
Max . tus nqi ua ntej (m / s) |
0.8 |
0.8 |
0.8 |
|
Max . propີ က (prop (kn) |
25 |
25 |
25 |
|
Taug kev muaj peev xwm |
|||
|
Max . Taug kev nrawm (KM / H) |
4.2 |
4.2 |
4.2 |
|
Max . traction (kn) |
100 |
100 |
80 |
|
Kev Ntseeg (Degree) |
25 degree |
25 degree |
25 degree |
|
Taug qab ncej kaum sab xis (qib) |
-7~+12 |
-7~+12 |
-10~+10 |
|
Av cathance ntawm chassis (hli) |
400 |
400 |
400 |
|
Qho loj |
|||
|
Hnyav (kg) |
15000 |
15000 |
12000 |
|
Ntev * dav * qhov siab (ua haujlwm) (m) |
92x2.6x8.6 |
92x2.6x8.6 |
6.68x2.42x7.98 |
|
Ntev * dav * qhov siab (thauj) (m) |
11.2x2.6x3.5 |
11.2x2.6x3.5 |
8x2.42x3.4 |
