Specifications
|
Technical Parameters |
|
|
Txoj kab uas hla (mm) |
115-300 |
|
Qhov tob (m) |
260 |
|
Rau pob zeb (F) |
60-20 |
|
Cua siab (m3 / min) |
1.05-3.0 |
|
Cua comsumption (m3 / min) |
16-30 |
|
Ib zaug promotion (mm) |
2000 |
|
Qhov siab tshaj plaws hauv av (mm) |
320 |
|
Roation ceev (r / min) |
0-100 |
|
Lub zog torque (NM) |
3900 |
|
Lifting zog (T) |
6.5 |
|
Qhov Loj (L * W * H) (mm) |
5425*2250*2470 |
|
Lub zog fais fab (Kw) |
56/87 |
|
Qhov hnyav (Kg) |
6000 |
|
Mud Pump |
BW450/5 |
|
Pump ceev (L / min) |
172-450 |
|
Siab (Mpa) |
2.0-5.0 |
Khoom nthuav dav
- Lub npe: miningwell
- Ntawv pov thawj: CE, ISO
- Yam tsawg kawg nkaus kom muaj nuj nqis: 1set
- Pob Paub meej: 40HQ-20GP
- Lub sij hawm xa tuaj: 15-20 hnub
- Cov nqe lus them nqi: L / C, T / T, Western Union

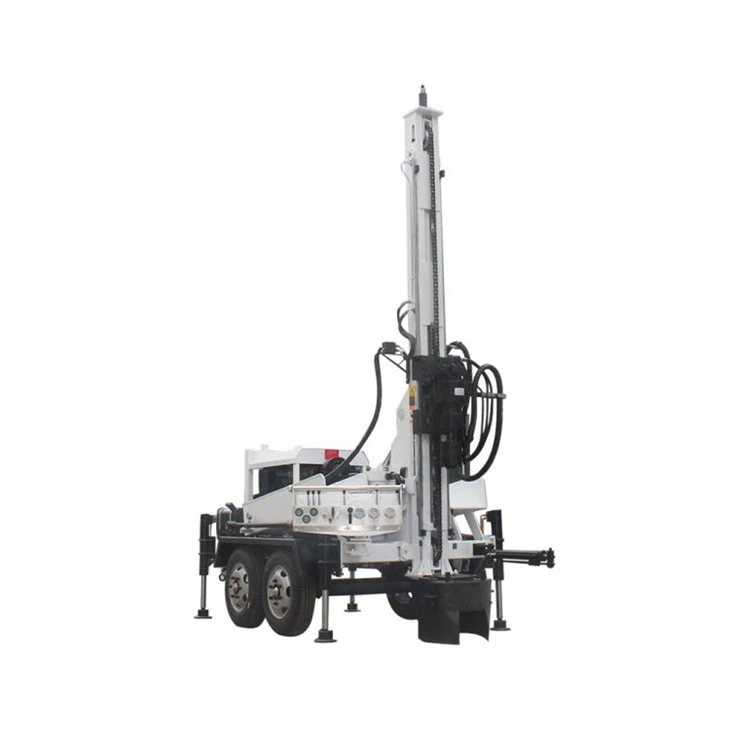

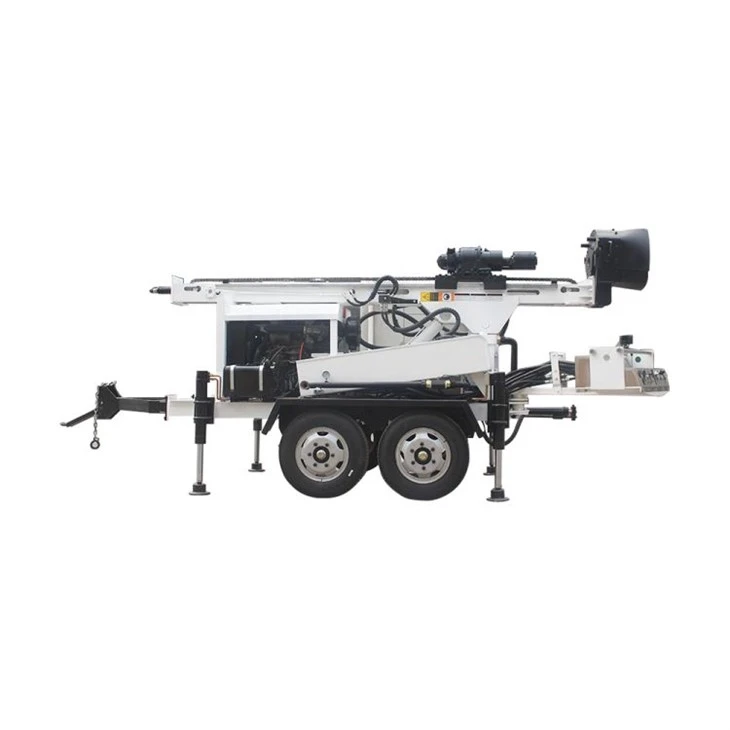

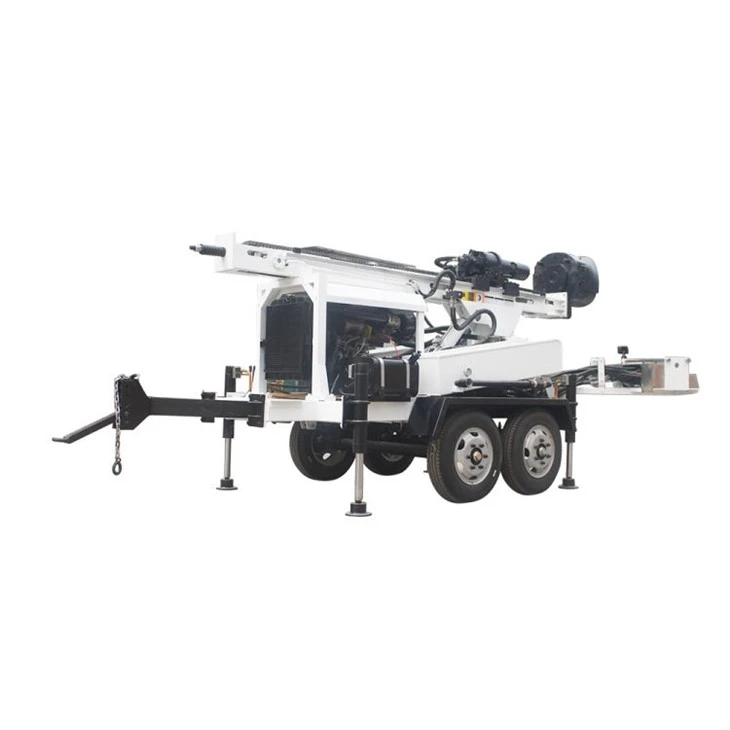

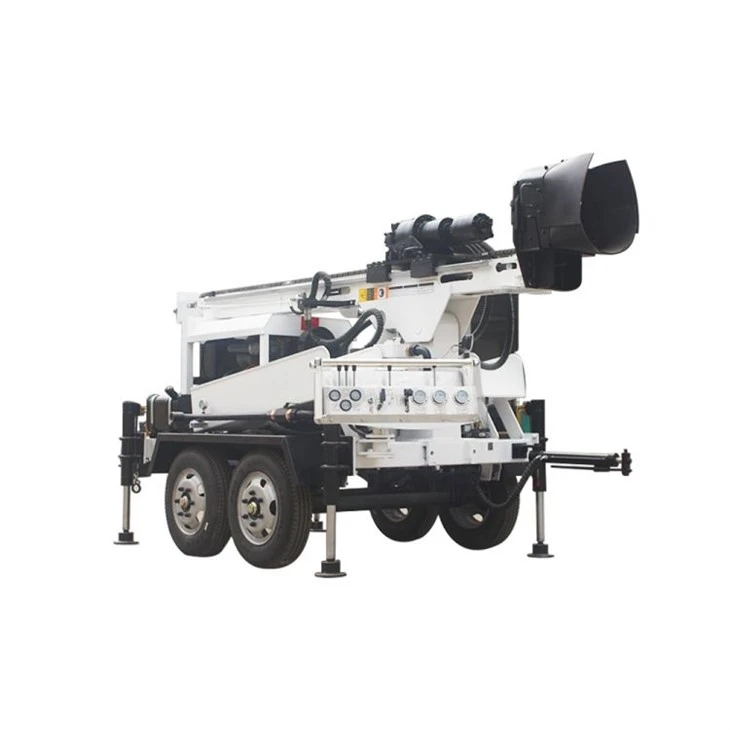

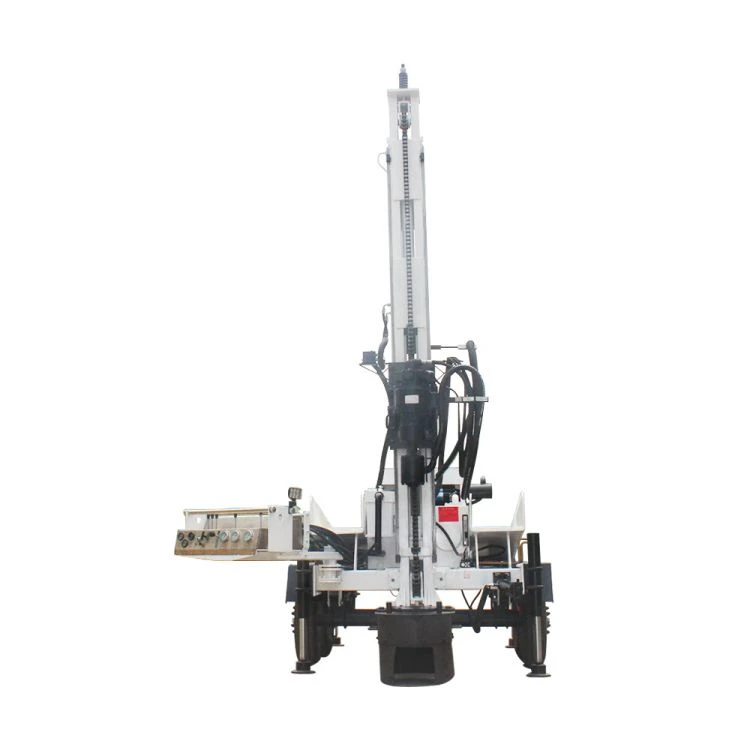

Trail dej zoo drilling SLY410 yog ib qho portable, npaum thiab ntau lub hom phiaj pob zeb drilling khoom uas muaj peev xwm tig rau percussion drilling siv cua, ua npuas ncauj los yog av nkos raws li qhov sib txawv textures. Nws yog dav siv hauv kev lag luam thiab kev txuag dej ua liaj ua teb, xws li cov qhov dej hauv qhov dej, sim qhov dej los yog lwm yam kev tshawb nrhiav drilling, tshwj xeeb tshaj yog thaum drilling geothermal cua sov qhov, thiab nws kuj tuaj yeem ua tau raws li lub hauv paus tsim kho engineering, xoob gravel drilling nrog ntau yam kev xav tau ntawm engineering. rau kev sib txuas pob zeb formations.
Shipping & Them Nyiaj
Txhua daim ntawm Miningwell cov cuab yeej thiab cov khoom siv drilling tau dhau los ua kev kuaj xyuas kev nyab xeeb kom ruaj ntseg ntawm cov khoom thauj hauv lub thawv.
Peb txoj kev them nyiaj: credit card, L / C, T / T, Western Union, thiab peb txhawb nqa shipping los ntawm huab cua thiab hiav txwv.
FAQ
Cim npe nrov: Tuam Tshoj dawb trailer hom dej zoo drilling rig sly410 manufacturers, lwm tus neeg, Hoobkas
