Specifications
|
Qauv |
Rated FAD |
Rated Siab |
Cav |
Cua kawg |
Qhov hnyav |
L*W*H |
|
S60 |
18 m3 / min |
18 bar |
162 kwv |
Ib theem compression |
3000 kg |
3220*1670*1950 |
|
S85T |
24 m3 / min |
22bar ua |
228 kwv |
Ob theem compression |
3 450kg |
3560*1830*2050 |
|
S95T |
29 m3 / min |
24bar ua |
295 kwv |
Ob theem compression |
4 300kg |
3950*2000*2300 |
|
S98T |
30 m3 / min |
24bar ua |
295 kwv |
Ob theem compression |
4 350kg |
3950*2000*2300 |
|
S100D |
31 m3 / min |
25bar ua |
309 kwv |
Ob theem compression |
4 600kg |
3960*2000*2000 |
|

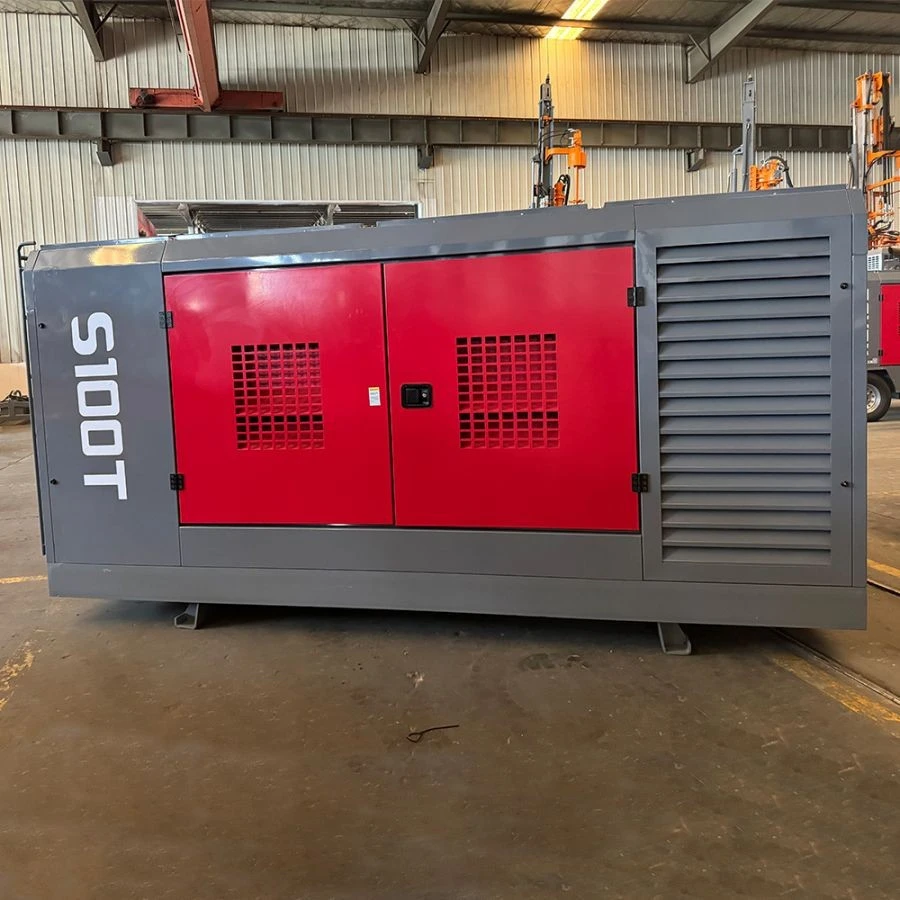

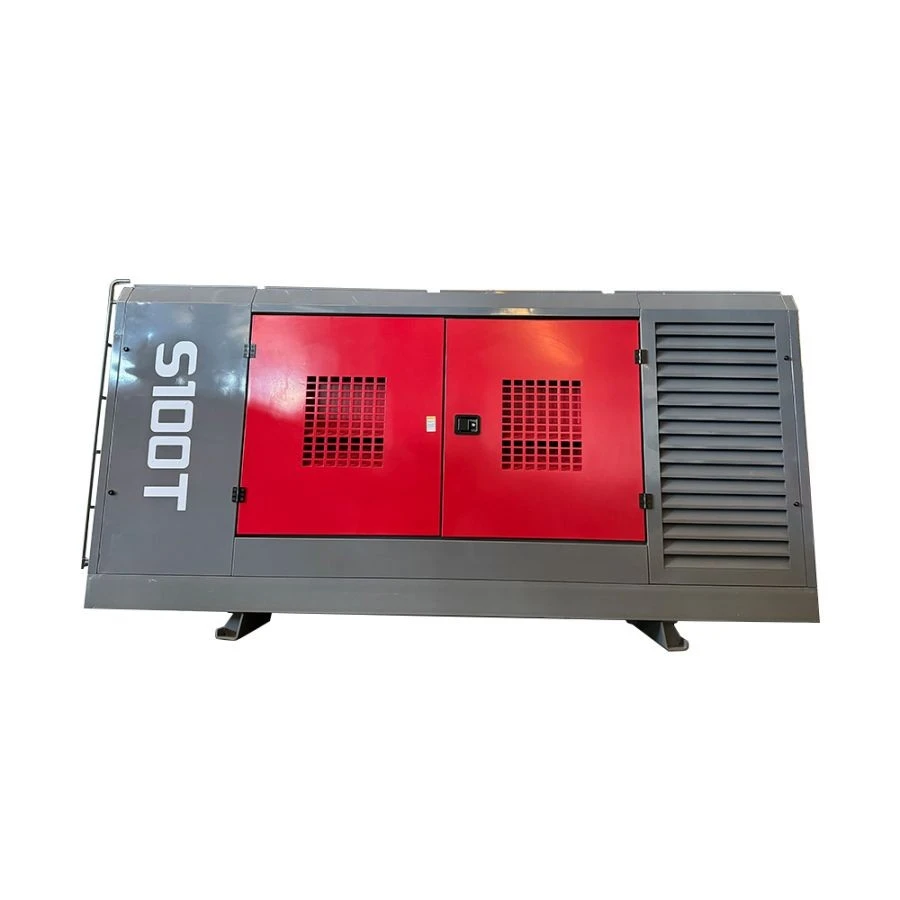

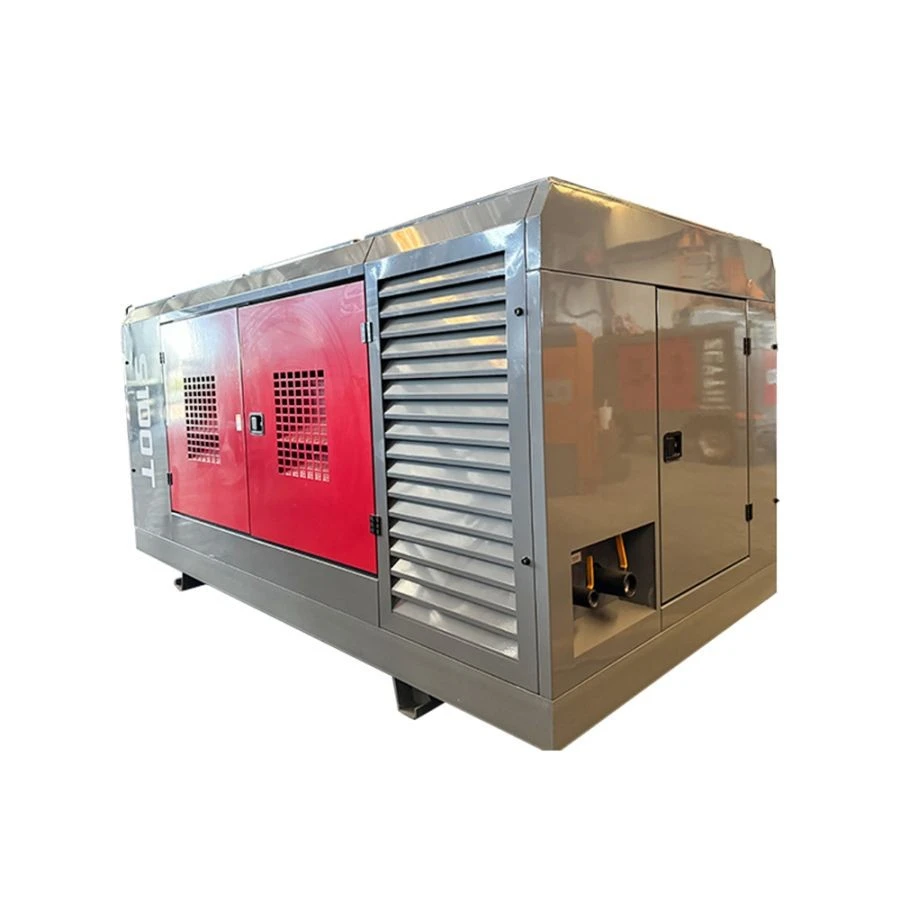

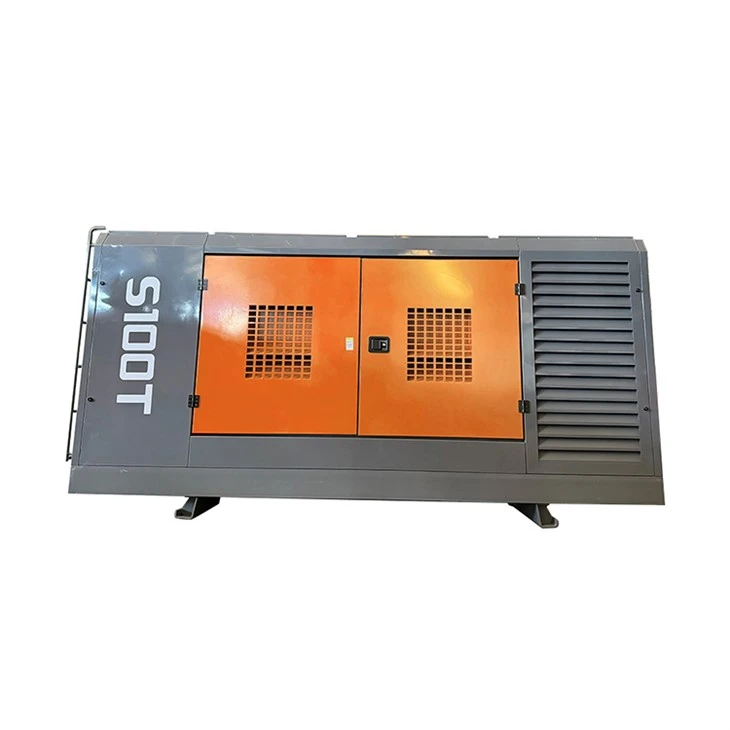

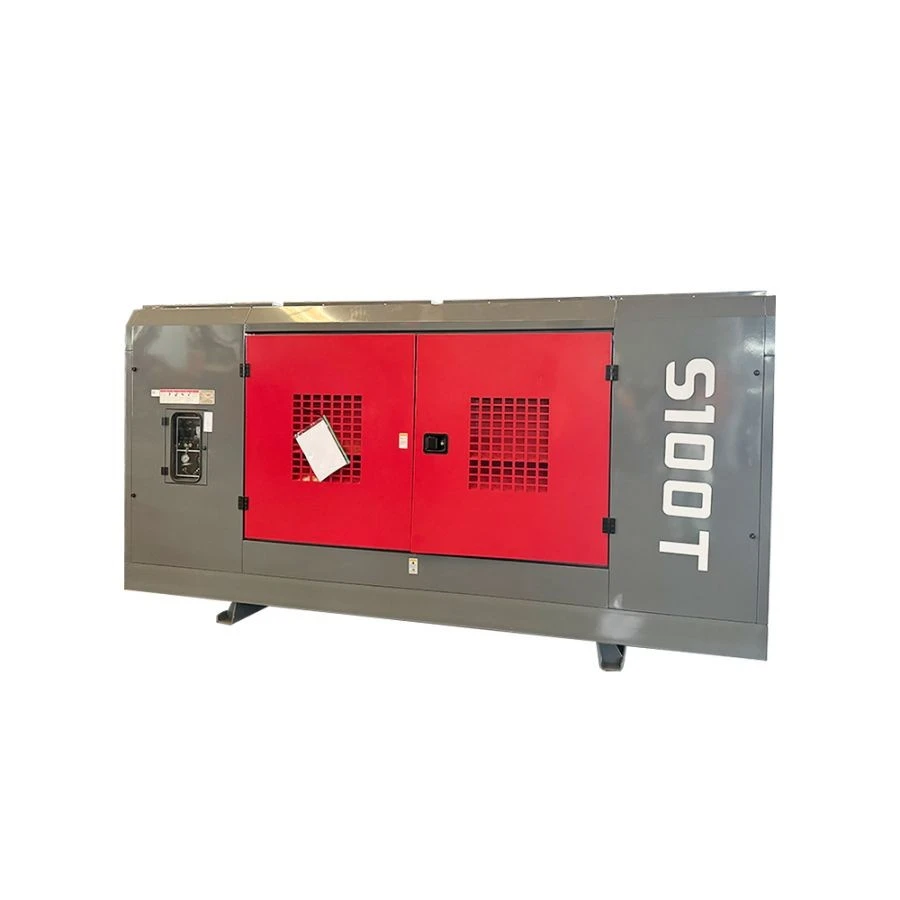

S100T |
31 m3 / min |
25bar ua |
309 kwv |
Ob theem compression |
4500 kg ib |
3960*2000*2000 |
|
S100T-II |
31 m3 / min |
25bar ua |
309 kwv |
Ob theem compression |
4500 kg ib |
3960*2000*2000 |
|
S125D |
36 m3 / min |
30 bar |
410 kwv |
Ob theem compression |
5500 kg ib |
4220*2000*2300 |
Khoom nthuav dav
Thaum tuav cov yam ntxwv zoo heev ntawm lub tshuab cua compressors, cov diesel teb ntsia hlau cua compressors tau kho dua tshiab thiab ua kom zoo rau kev siv tas mus li thiab kev thauj mus los, uas ua rau cov khoom siv ruaj khov dua nrog kev siv roj tsawg.
Product Advantage
-
High quality heavy duty diesel cav, siab dua roj efficiency thiab lub zog txuag.
-
Cua pom system nrog loj-muaj peev xwm hnyav-lub luag hauj lwm lub tshuab nqus tsev ntsuas, haum rau plua plav ib puag ncig.
-
Compressor roj thiab cav coolant cooler kom optimize kev ua tau zoo thiab ntev lub cav lub neej.
-
High-efficiency compressor roj lim los xyuas kom meej tias cov diesel teb ntsia hlau cua compressors nyob rau hauv kev ua haujlwm zoo.
-
Roj lim nrog dej separator.
-
Tshem tau yooj yim, translucent PE roj tank.
-
Ntau lub zog thiab txuag hluav taws xob tshiab cua compressor mainframe.
Shipping & Them Nyiaj
Txhua daim ntawm Miningwell cov cuab yeej thiab cov khoom siv drilling tau dhau los ua kev kuaj xyuas kev nyab xeeb kom ruaj ntseg ntawm cov khoom thauj hauv lub thawv.
Peb txoj kev them nyiaj suav nrog credit card, L / C, T / T, Western Union, thiab peb txhawb nqa shipping los ntawm huab cua thiab hiav txwv.
Peb cov kev pabcuam
Cov kev pabcuam ua ntej muag:
1. Muab kev txhawb nqa kev tshaj lij.
2. Xa cov khoom catalog thiab phau ntawv qhia.
3. Yog tias koj muaj lus nug PLS tiv tauj peb hauv online lossis xa email rau peb, peb cog lus tias peb yuav muab lus teb rau koj thawj zaug!
4. Kev hu xovtooj lossis tuaj ntsib tus kheej tau txais tos txais tos.
Kev muag khoom:
1. Peb cog lus ncaj ncees thiab ncaj ncees, peb zoo siab los pab koj ua koj tus kws pab tswv yim yuav khoom.
2. Peb lav lub sijhawm ua haujlwm, zoo thiab ntau yam nruj me ntsis ua raws li cov lus cog tseg.
Kev pab cuam tom qab muag:
1. Qhov twg yuav peb cov khoom rau ib xyoo warranty thiab lub neej ntev kev tu. Peb muab tshuab installation thiab ua haujlwm cov yeeb yaj duab.
2. 24-teev kev pabcuam hauv xovtooj.
3. Ib qho khoom lag luam loj ntawm cov khoom siv thiab cov khoom siv, yooj yim hnav cov khoom.
Cim npe nrov: Diesel cav mounted ntsia hlau cua compressor rau dej zoo mining, Tuam Tshoj diesel cav mounted ntsia hlau cua compressor rau dej zoo mining manufacturers, lwm tus neeg, Hoobkas
