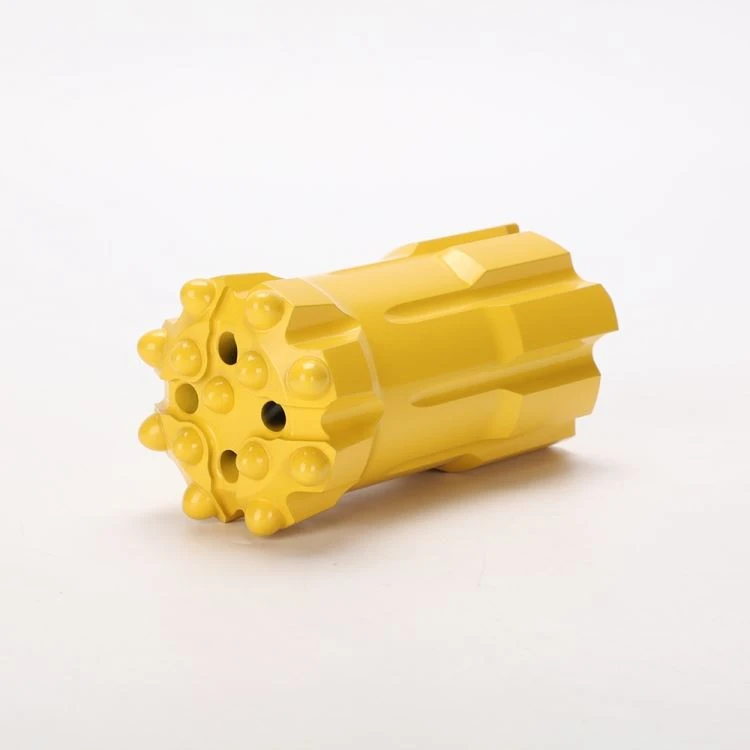

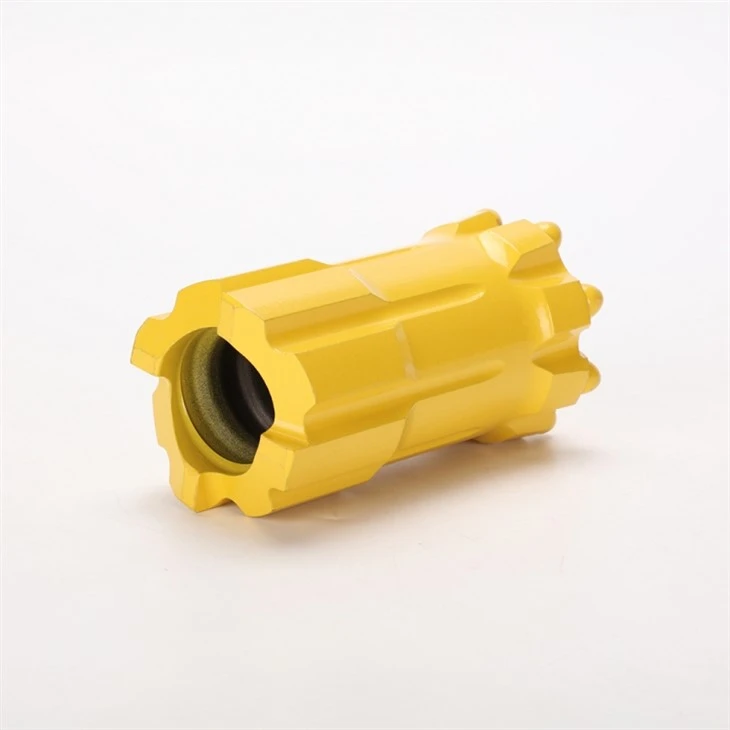

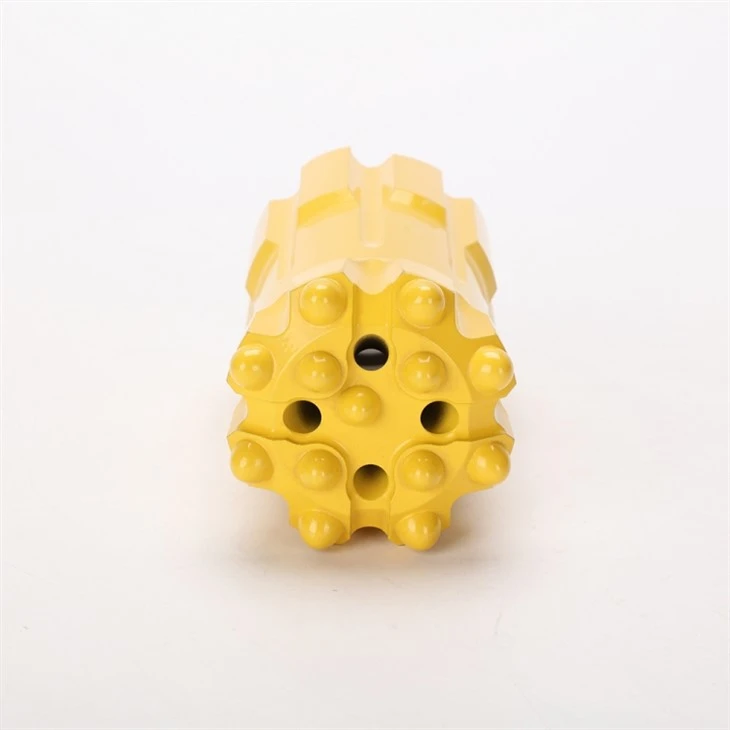

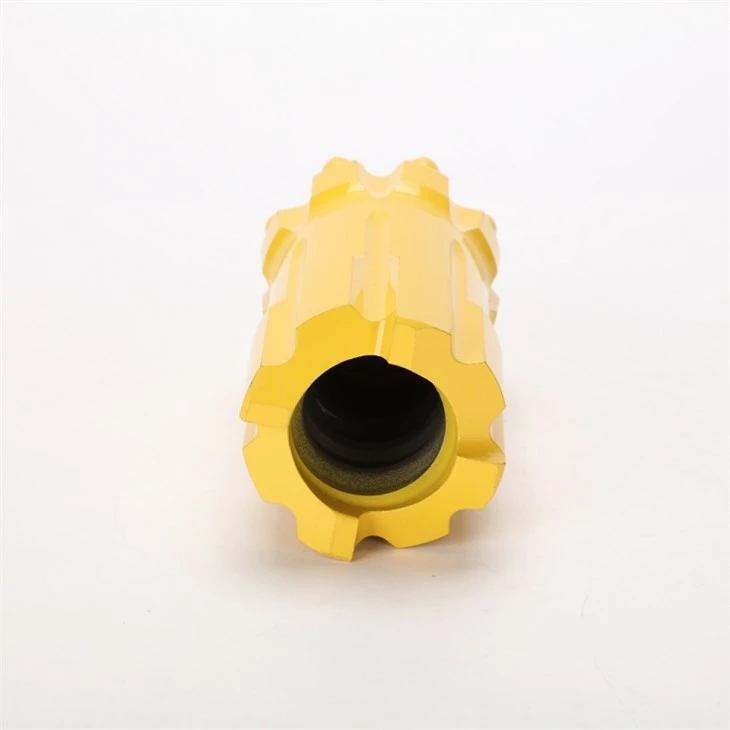

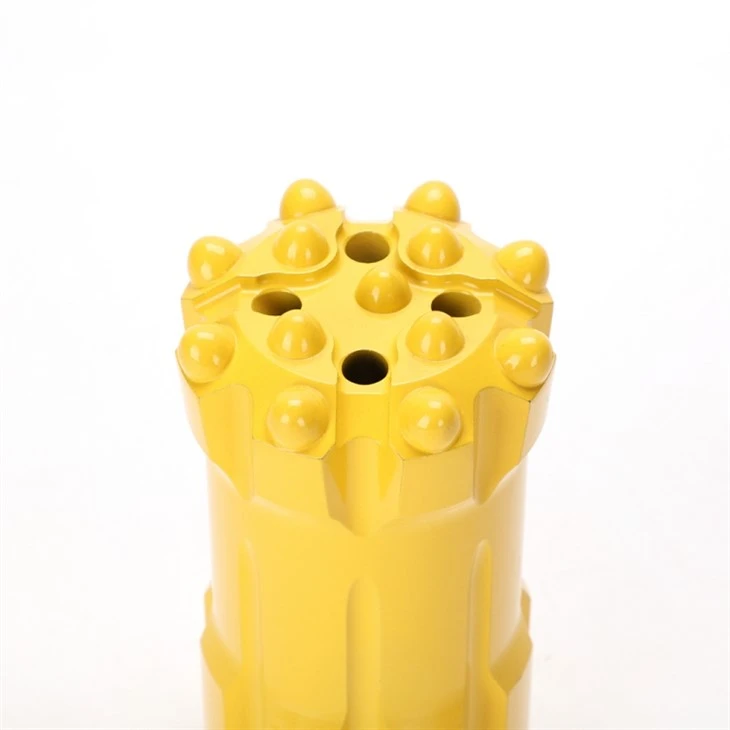

Retrac Sab saum toj Rauj Drill Bits

MININGWELL Retrac cov khoom siv hluav taws xob kho cua sov thiab ua los ntawm cov hlau zoo hlau thiab tungsten carbide, yog li peb cov cuab yeej drilling yog nruj txaus kom tau raws li pob zeb drilling xav tau nrog tsawg zog poob thaum drilling pob zeb. Tsis tas li ntawd, peb kuj muab cov kev pabcuam customized los tsim thiab ua kom tsim nyog threaded khawm cov khoom siv rau cov ntawv sib txawv drilling, thiab cov khoom customized yog tsim rau drilling pob zeb mos, xoob nruab nrab pob zeb thiab pob zeb nyuaj.

Xa kev nug

Hauj lwm lawm

Specifications

Technical Parameters
Qauv	Lub taub hau zoo	Lub taub hau taub (mm)	Ntev	Chaw nres nkoj qhov	Sab Qhov	Gauge Khawm
R25	Lub ntsej muag	38	105	1	2	5*Φ8
R25	Lub ntsej muag	45	110	3	2	6*Φ9
R32	Lub ntsej muag	45	113	3	2	6*Φ9
R32	Lub ntsej muag	64	130	2	/	6*Φ10
R32	Lub ntsej muag Convex	76	130	2	/	6*Φ12
R38	Center Drop Face	64	130	3	/	6*Φ11
R38	Center Drop Face	76	130	2	2	8*Φ12
R38	Center Drop Face	89	130	2	2	8*Φ12
T38	Center Drop Face	64	130	2	/	8*Φ9
T38	Lub ntsej muag	70	130	3	2	6*Φ12
T38	Center Drop Face	76	130	4	/	8*Φ11
T38	Center Drop Face	89	130	4	/	8*Φ12
T45	Center Drop Face	72	140	4	/	8*Φ11
T45	Center Drop Face	76	140	4	/	8*Φ11
T45	Center Drop Face	89	145	4	/	8*Φ12
T45	Center Drop Face	102	150	4	/	8*Φ13
T45	Daim duab peb sab	89	145	4	/	8*Φ13
T45	Lub ntsej muag daim duab peb sab	102	150	3	/	9*Φ13
T45	Lub ntsej muag daim duab peb sab	115	160	3	/	9*Φ14
T51	Center Drop Face	89	155	4	/	8*Φ12
T51	Center Drop Face	102	155	4	/	8*Φ14
T51	Lub ntsej muag	115	160	2	2	8*Φ14
T51	Center Drop Face	127	165	4	/	8*Φ14
T51	Lub ntsej muag daim duab peb sab	102	155	3	/	9*Φ13
T51	Lub ntsej muag daim duab peb sab	115	165	3	/	9*Φ14
T51	Lub ntsej muag daim duab peb sab	127	165	3	/	9*Φ14
TSI 58	Center Drop Face	89	175	4	/	8*Φ12
TSI 58	Lub ntsej muag	102	180	3	/	9*Φ13
TSI 58	Lub ntsej muag	115	185	2	2	8*Φ14
TSI 58	Center Drop Face	127	185	4	/	8*Φ14
GT60 ua	Lub ntsej muag daim duab peb sab	102	220	3	/	9*Φ13
GT60 ua	Lub ntsej muag daim duab peb sab	115	220	3	/	9*Φ14
GT60 ua	Lub ntsej muag daim duab peb sab	127	225	3	/	9*Φ16
GT60 ua	Lub ntsej muag daim duab peb sab	140	230	3	/	9*Φ16
TSI 68	Lub ntsej muag	102	180	2	2	8*Φ14
TSI 68	Center Drop Face	115	180	4	/	8*Φ14
TSI 68	Center Drop Face	127	190	4	/	8*Φ14
TSI 68	Center Drop Face	140	190	4	/	8*Φ16

Khoom nthuav dav

Lub npe: miningwell
Ntawv pov thawj: CE, ISO
Yam tsawg kawg nkaus kom muaj nuj nqis: 1set
Packing Detail: Txheem export packing
Lub sij hawm xa tuaj: 7-10 hnub
Cov nqe lus them nqi: L / C, T / T, Western Union

Sab saum toj rauj khoom nrog pob zeb laum threading yog tsim rau kev sib txuam nrog R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, T60 pob zeb drilling rods. Nws muaj ntau cov xov. Threaded khawm cov khoom siv dav siv hauv cov pob zeb nyuaj (f=8~18) drilling.

1) Xov txuas: R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60

2) Cov khoom siv zoo

3) Technology: kub nias lossis vuam

Thov paub meej cov ntaub ntawv hauv qab no ua ntej xaj xaj:

(1) Xov hom

(2) Txheem lossis thim rov qab

(3) Laum khawm puab (ntsuab puab) - pob lossis ballistic

(4) Laum retrac me ntsis nto zoo li - recessed chaw, tiaj tus, convex, concave, thiab lwm yam ...
