Specifications
|
Technical Parameters |
HT400 |
HT500 |
HT600 |
|
Qhov Loj (mm) |
90-155 |
90-203 |
90-254 |
|
Rauj Loj (Inch) |
3 / 4 / 5 |
3 / 4 / 5 / 6 |
3 / 4 / 5 / 6 / 8 |
|
Txoj kab uas hla (mm) |
76 / 89 |
76 / 89 |
76 / 89 |
|
Laum pas nrig (m) |
2 / 3 |
2 / 3 |
3050 |
|
Economic Drilling Qhov tob (m) |
30 |
30 |
21 |
|
Kev sib hloov torque (nm) |
2800 |
1800-3600 |
2200-4400 |
|
Kev sib hloov ceev (rpm) |
0-110 |
0-110 |
0-110 |
|
Cav Qauv |
Yuchai YC4DK100 |
Yuchai YC4DK100 |
Yuchai YC4DK100 |
|
Lub zog (kw) |
73.5 |
73.5 |
73.5 |
|
Yuav tsum muaj siab (bar) |
7~25 |
7~25 |
7~25 |
|
Cua Comsuption (m3 / min) |
8-20 |
8-20 |
8-20 |
|
Ua ntej ntev (mm) |
3185 |
3185 |
4125 |
|
Max. Kev txhawb zog (kn) |
20.5 |
20.5 |
45.0 |
|
Max taug kev ceev (km / h) |
3.0 |
3.0 |
3.0 |
|
Gradeability (o) |
25 degree |
25 degree |
25 degree |
|
Av clearance ntawm chassis (mm) |
480 |
310 |
400 |
|
Qhov hnyav (kg) |
5500 |
5800 |
6200 |
|
Length * dav * qhov siab (m) |
6.4*2.2*2.4 |
6.4*2.2*2.4 |
6.4*2.2*2.4 |
|
Lub kaum sab xis (o) |
/ |
Pem hauv ntej 13 / Back 13 |
Pem hauv ntej 13 / Back 13 |
|
Plua plav sau |
Hom qhuav |
Hom qhuav |
Hom qhuav |
Khoom nthuav dav
- Hom Lub Npe: D miningwell
- Yam tsawg kawg nkaus Order Quantity: 1 Set
- Ntim Cov Lus Qhia: 40HQ-20GP
- Lub sij hawm xa tuaj: 15-20 Hnub
- Cov nqe lus them nqi: L / C, T / T, Western Union

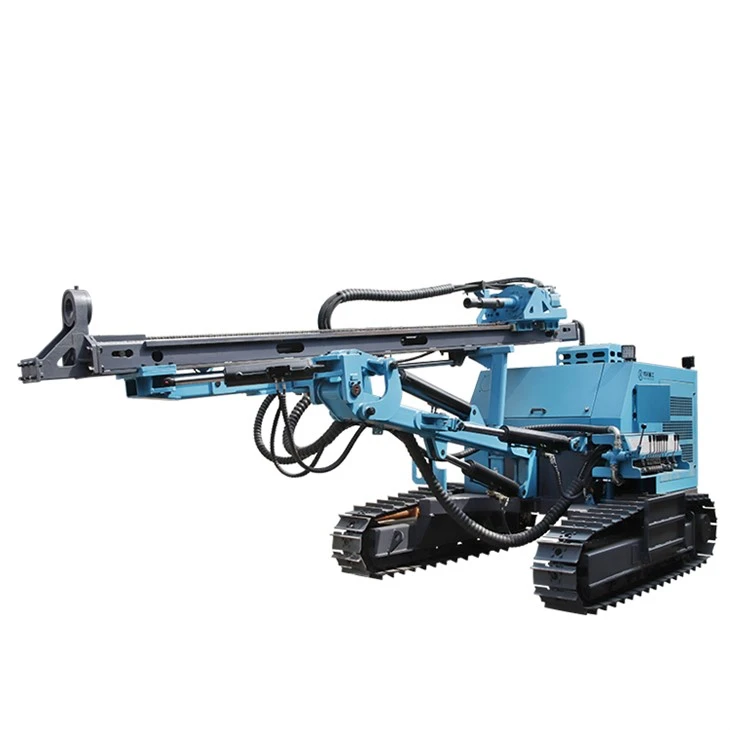

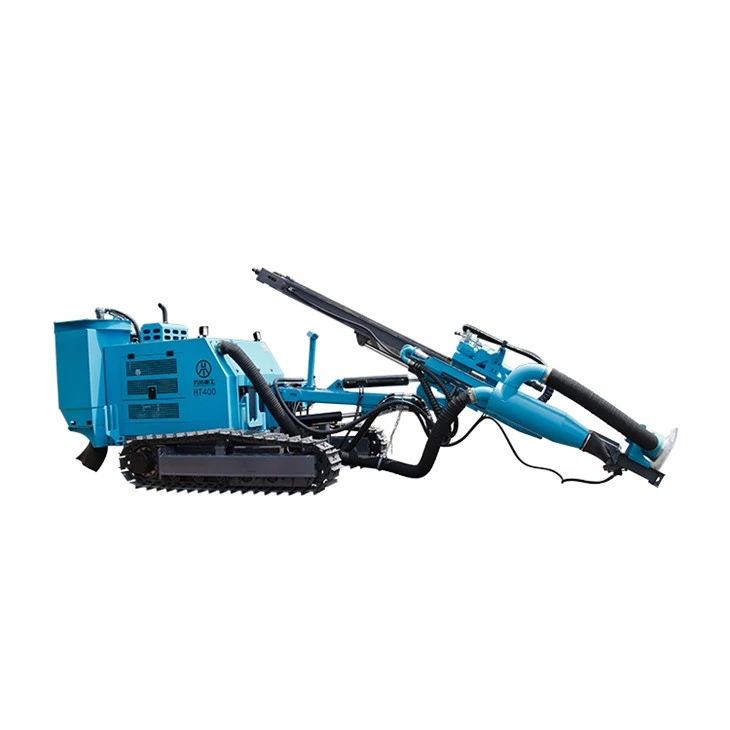

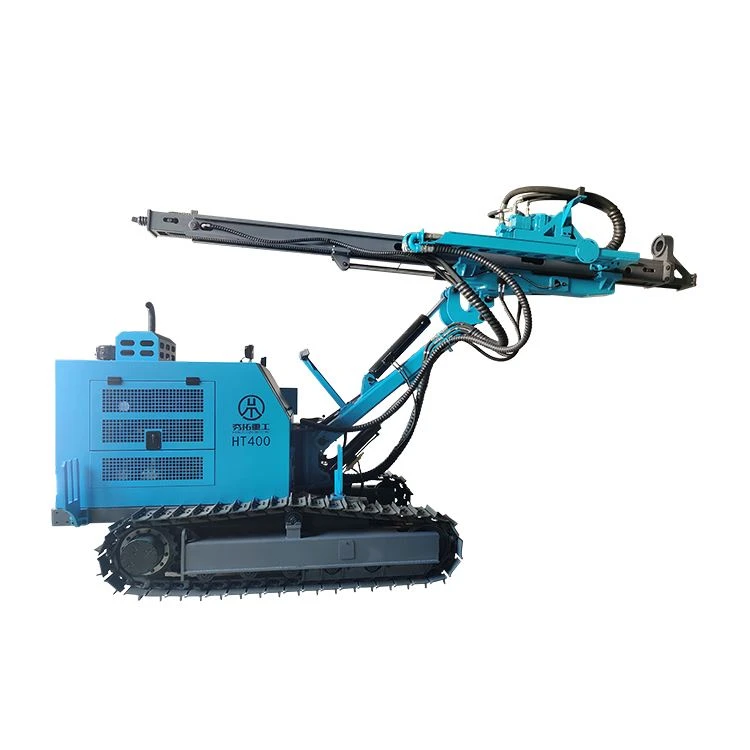

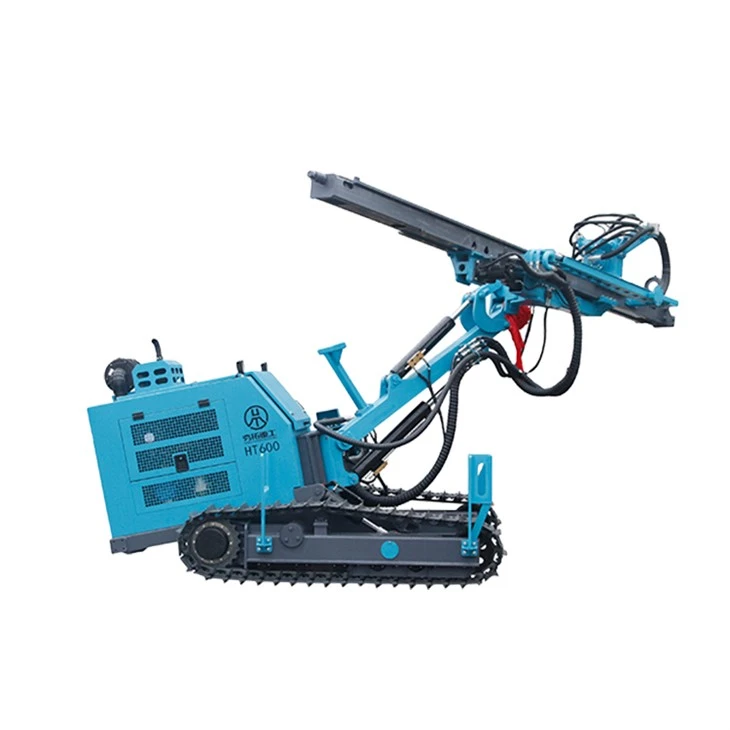

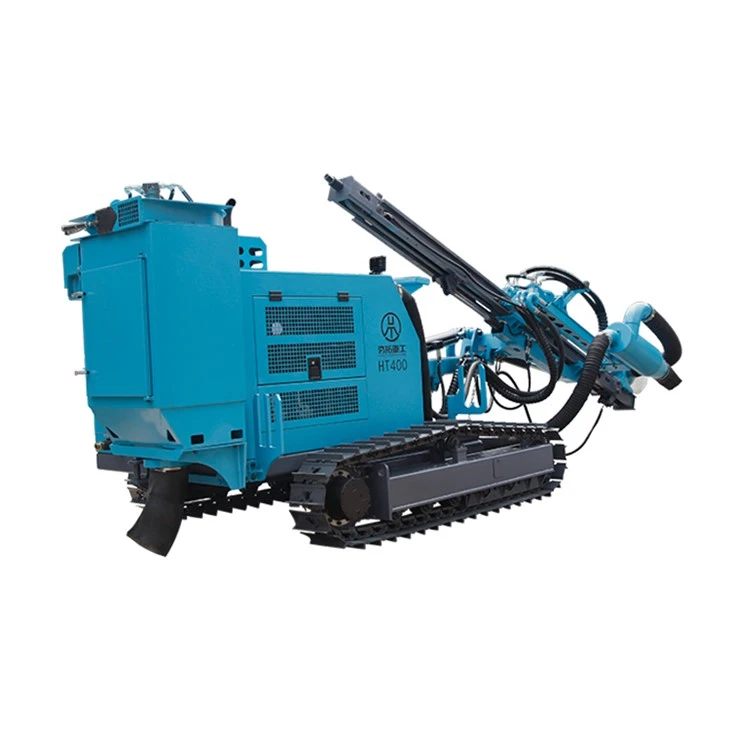

1) Qhov sib cais DTH drilling rig mining yog ua los ntawm ib daim hlau phaj, uas yog txiav ncaj qha los ntawm cov hlau thaiv, uas yog ruaj khov dua. Qhov no yog peb tsim tshiab ob-ceev rotary taub hau, nruab nrog hydraulic plaub-ceev 0-110 rpm, qis ceev siab torque thiab siab ceev tsis tshua muaj torque, uas tuaj yeem ua tau raws li qhov xav tau ntawm ntau yam xwm txheej. Nruab nrog ob lub tshuab hluav taws xob, nws ua haujlwm ruaj khov thiab kev xav rov qab thiab rov qab nrawm dua; lub sab sauv thiab sab qhia rails yog ua los ntawm steel tiaj tus hlau, thiab lub propulsion beam khiav smoothly; ntev hnav-resistant daim hlau thiab kab rov tav rollers, thickened laum caj npab, thiab kev ua haujlwm ruaj khov.
2) EATON propulsion lub cev muaj zog me me, tab sis muaj lub zog siab thiab lub neej ua haujlwm ntev. Nruab nrog thawj-kab hom rau cov menyuam saw, ruaj khov dua. Cov menyuam saw yog tsav los ntawm lub twj tso kua mis hydraulic thiab muaj zog dua. Furukawa pob qij txha ua rau lub laum caj npab ua haujlwm zoo dua. Nruab nrog lub excavator-hom mus ncig teb chaws lub cev muaj zog, DTH phua drilling tshuab rau mining muaj kev ua haujlwm siab, lub zog loj thiab muaj peev xwm nce siab. Engineering crawler lem ua rau tag nrho lub tshuab taug kev du. Lub tshuab tag nrho siv lub tshuab hydraulic tsim tshiab uas yooj yim rau kev khiav lag luam thiab txhim khu kev qha, nrog lub neej ua haujlwm ntev. Tus neeg siv-phooj ywg tag nrho-hauv-ib lub tshuab qhia tag nrho cov ntaub ntawv tshuab, pab txhim kho kev ua haujlwm ntawm lub tshuab.
3) Ob-theem Fleet guard intake air filter, ntiaj teb nto moo hom cua lim, tuaj yeem tiv thaiv lub cav diesel rau lub sijhawm ntev thiab ua rau lub neej ua haujlwm ntawm lub cav diesel. High-lub zog damping shock absorber, txo kev co thiab suab nrov, tiv thaiv lub cav thiab roj twj tso kua mis; thoob ntiaj teb renowned hom cam khwb cia hlau iav twj tso kua mis, siab siab kuj, lub neej ntev; nruab nrog roj-dej separator, tuaj yeem yooj yim lis diesel ntawm cov khoom sib txawv; loj roj tank peev xwm, tuaj yeem ua haujlwm ntev dua ib zaug; nruab nrog laum pas nrig platform rau tso drill rods.
4) Tus kheej-drilling thauj tog rau nkoj pas nrig yog tsim los ntawm lub hollow thauj tog rau nkoj pas nrig lub cev, ib tug txiv ntseej phaj, ib tug txuas lub tes tsho center thiab ib tug laum ntsis. Nws integrates lub zog ntawm drilling, grouting thiab anchoring. Nws muaj zog versatility thiab yog haum rau tawg nyuaj-rau-drill ib puag ncig pob zeb. Tus kheej-drilling anchor rods muab faib ua R series thiab T series, thiab cov qauv muaj xws li R25, R2, R38, R51, T30, T40, T52, thiab T76. Tib yam khoom thiab cov qauv khoom tuaj yeem xaiv tau raws li qhov xav tau ntawm engineering sib txawv.
Shipping & Them Nyiaj
Txhua daim ntawm Miningwell cov cuab yeej thiab cov khoom siv drilling tau dhau los ua kev kuaj xyuas kev nyab xeeb kom ruaj ntseg ntawm cov khoom thauj hauv lub thawv.
Peb txoj kev them nyiaj: credit card, L / C, T / T, Western Union, thiab peb txhawb nqa shipping los ntawm huab cua thiab hiav txwv.
