Specifications
|
Technical Parameters |
|
|
Qauv |
SIB 138 |
|
Kev ua haujlwm parameter |
|
|
Drilling ntau yam (mm) |
105-152 |
|
Txoj kab uas hla (mm) |
83/89 |
|
Laum pas nrig (m) |
5 |
|
Qhov tob, max (m) |
30 |
|
Upper carriage tig (º) |
360 |
|
Cua compressor |
|
|
qauv |
DLQ 550RH |
|
Ua haujlwm siab (MPa) |
1.7 |
|
Kev hloov pauv (m³ / min) |
15.5 |
|
Lub zog (kW / rpm) |
179/1800 |
|
Cav |
|
|
qauv |
QSB7-C187 |
|
Lub zog (kW / rpm) |
140/2050 |
|
Roj tank peev xwm (L) |
500 |
|
Pub |
|
|
Feed beam ntev (mm) |
8200 |
|
Pub Stroke (mm) |
4500 |
|
Pub tus nqi, max (m / s) |
0.8 |
|
Pub zog, max (kN) |
40 |
|
Lub zog nqa. max (kN) |
50 |
|
Boom deflection (º) |
/ |
|
Muaj peev xwm mus ncig |
|
|
Kev ceev ceev (km / h) |
3.45/5.6 |
|
Traction quab yuam (kN) |
160 |
|
Gradeability (º) |
25 |
|
Av clearance (mm) |
480 |
|
Hauv av siab (bar) |
0.5 |
|
Taug qab qaij lub kaum sab xis (º) |
/ |
|
Rotary taub hau |
|
|
Qauv |
DLT40R |
|
Rotary ceev (rpm) |
200 |
|
Lub zog torque (Nm) |
4000 |
|
Diamension |
|
|
Qhov hnyav tag nrho (T) |
24 |
|
LxWxH ua haujlwm (m) |
11*3.4*9.0 |
|
LxWxH Tsheb thauj mus los (m) |
14.8*3.4*3.5 |
Khoom nthuav dav
- Hom Lub Npe: D miningwell
- Yam tsawg kawg nkaus Order Quantity: 1 set
- Ntim Cov Lus Qhia: 40HQ-20GP
- Lub sij hawm xa tuaj: 15-20 hnub
- Cov nqe lus them nqi: L / C, T / T, Western Union

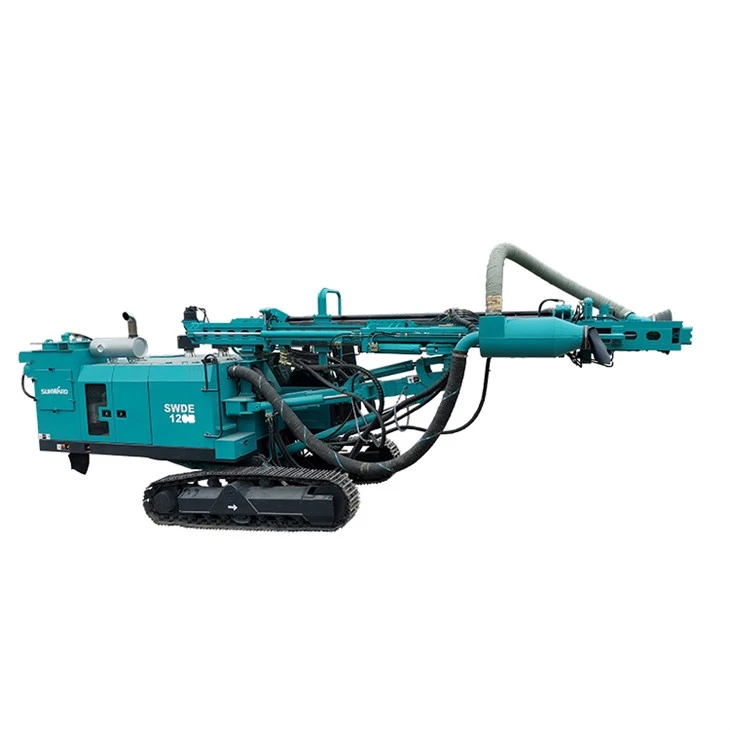

SWDE series yog SUNWARD high-end integrated crawler drilling tshuab uas peb lub tuam txhab sawv cev. Lawv sawv cev rau lub siab tshaj plaws-kawg down qhov drilling rigs nyob rau hauv Tuam Tshoj, thiab lawv cov hom thiab zoo yog paub zoo thoob plaws lub ntiaj teb no.
Cov khoom tseem ceeb ntawm SWDE drilling rigs raug xaiv los ntawm cov npe nrov thoob ntiaj teb, thiab cov qauv tsim tau zoo sib xws, uas txo qis qhov tsis ua haujlwm thiab txhim kho lub neej kev pab cuam. Lub drilling rig kuj siv ob-ceev propulsion, uas txo lub sij hawm pab thiab txhim kho tag nrho cov efficiency. Nws yog tsim nyog hais tias SWDE series crawler DTH laum rigs yog nruab nrog qis-kub pib system thiab ntse tswj qhov kub thiab txias, kom cov drilling rigs tseem tuaj yeem ua haujlwm ib txwm nyob rau hauv huab cua.
Daim ntawv thov
SWDE series yog ncaj caj npab integrated down qhov drilling rigs nrog kev ua tau zoo heev thiab ntau yam kev siv, haum rau blasting qhov nyob rau hauv qhib qhov mines, quarries thiab txhua yam ntawm lub rooj ntev zaum excavations nrog drilling ntau ntawm 90-203 hli.
Shipping & Them Nyiaj
Txhua daim ntawm Miningwell cov cuab yeej thiab cov khoom siv drilling tau dhau los ua kev kuaj xyuas kev nyab xeeb kom ruaj ntseg ntawm cov khoom thauj hauv lub thawv.
Peb txoj kev them nyiaj: credit card, L / C, T / T, Western Union, thiab peb txhawb nqa shipping los ntawm huab cua thiab hiav txwv.
