Khoom nthuav dav
01.
Lub npe: miningwell
Yam tsawg kawg nkaus kom muaj nuj nqis: 1set
Pob Paub meej: 40HQ-20GP
Lub sij hawm xa tuaj: 15-20 hnub
Cov nqe lus them nqi: L / C, T / T, Western Union

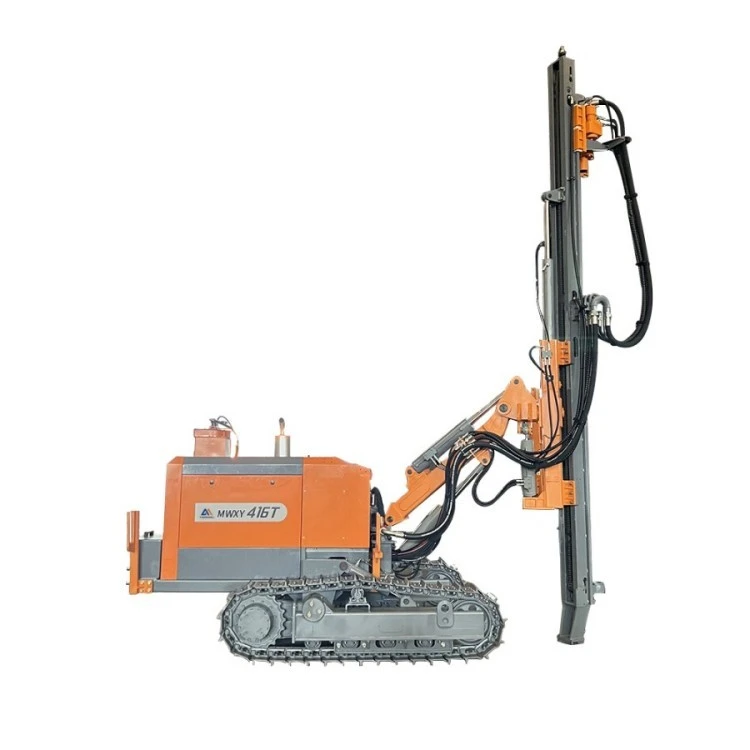

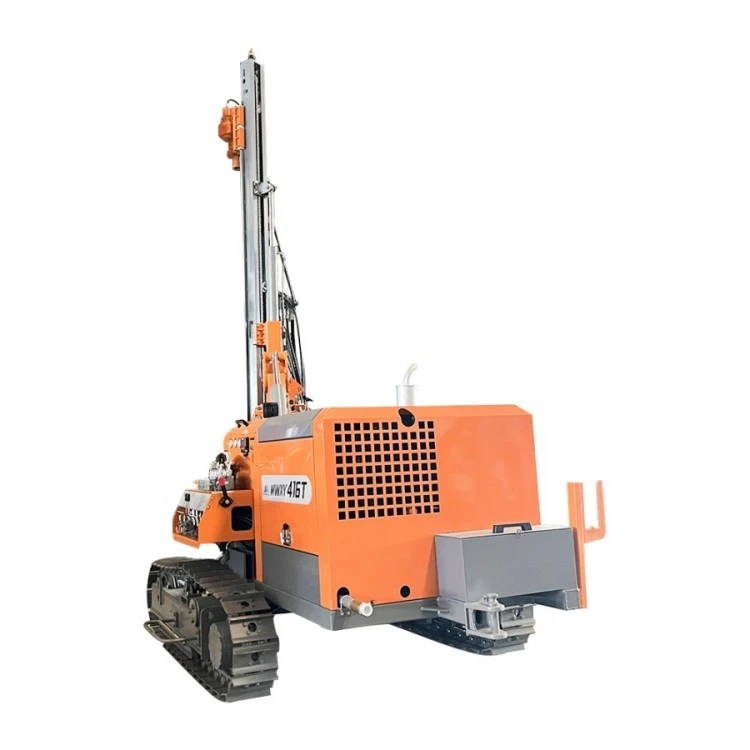

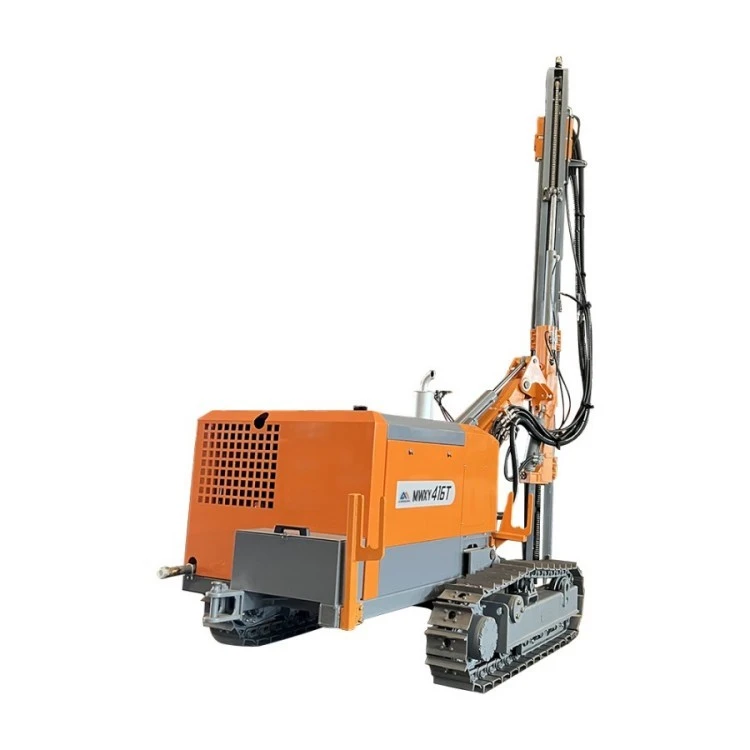

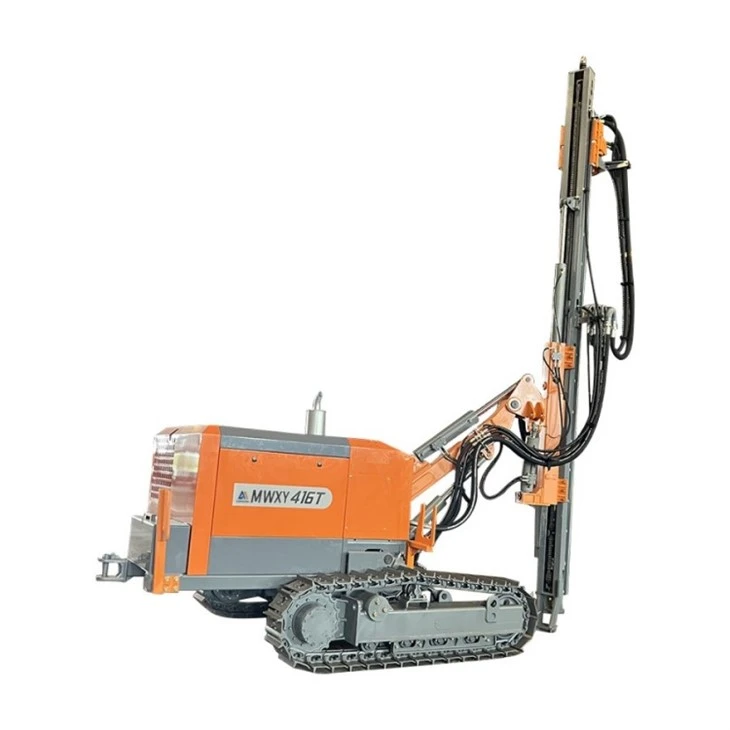

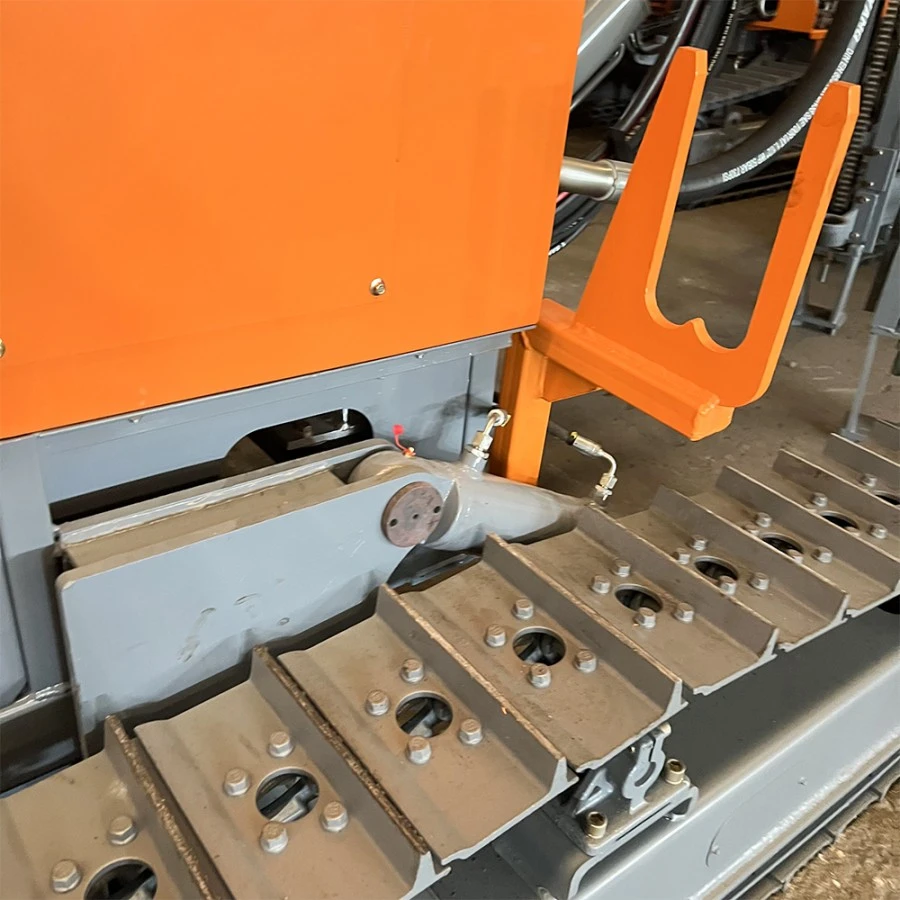

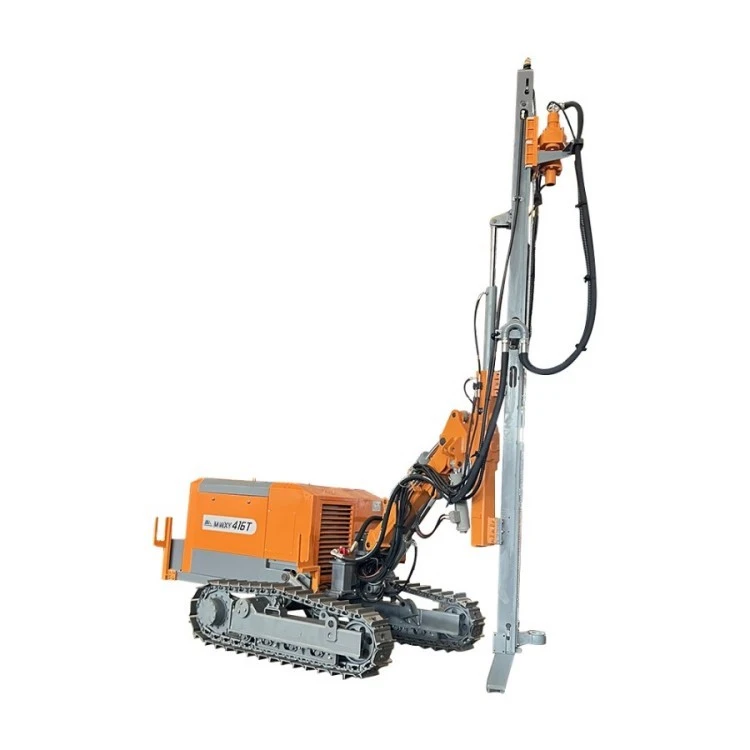

Lub Split Track Leveling Mining Drill Blast Drilling Rig 416T's advanced engineering lem thiab plunger motors muab kev txhim kho kev nce toj, nce traction, thiab ntau dua stability ntawm complex struts. Kev suav nrog kev tsim kho crawlers thiab piston hydraulic motors ntxiv rau nws txoj kev ua tau zoo, ua rau nws muaj kev xaiv zoo rau kev taug kev nyuaj geological ib puag ncig uas feem ntau pom hauv qhov qhib mines.
02.

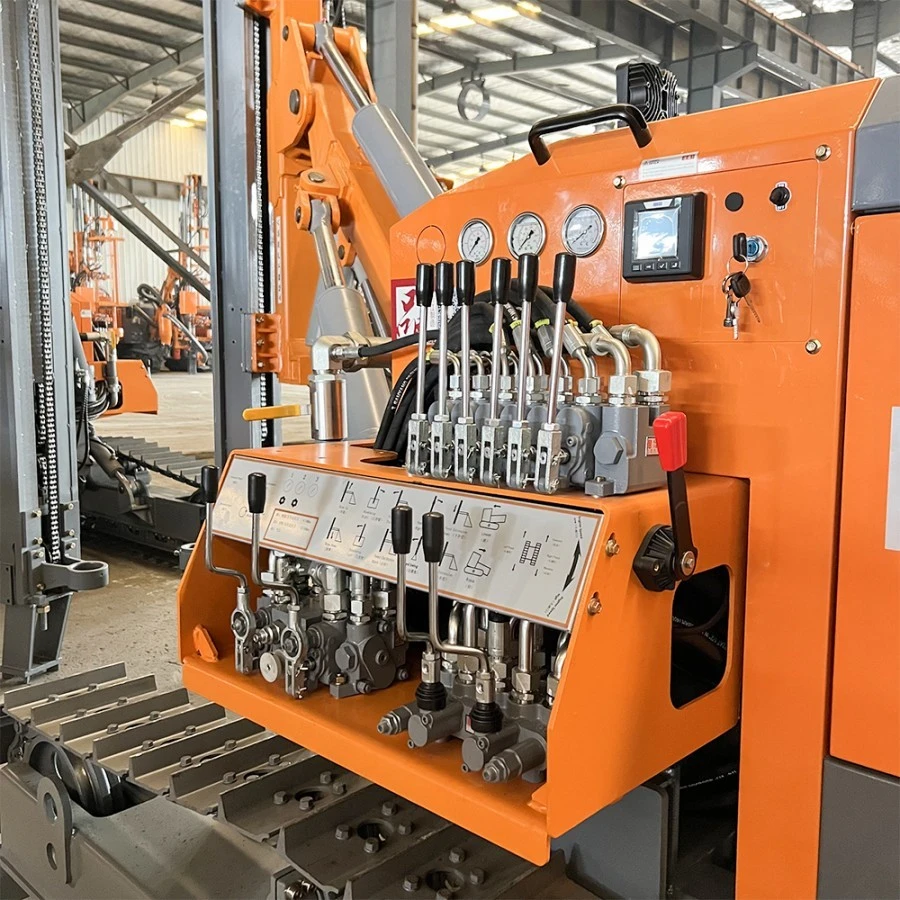

Cov neeg siv-phooj ywg ua haujlwm yog ua tau los ntawm lub hauv paus ergonomic tswj console, uas txhim kho ob qho tib si drilling efficiency thiab kev nyab xeeb ntawm kev ua haujlwm. Lub Separated Laum Rig Rau Blasting 416T tus qauv tsim ua ntej kev nplij siab, tso cai rau cov neeg ua haujlwm ua haujlwm ntev dua nrog kev yooj yim thaum ua kom muaj txiaj ntsig zoo. Ob chav cycloidal hydraulic motors muab siab torque thiab ceev kev sib hloov ceev, kom ntseeg tau tias cov qauv no yog ib qho ntawm cov khoom siv siab tshaj plaws hauv nws cov chav kawm. Nrog nws cov kev sib xyaw ua ke ntawm lub zog, kev ruaj ntseg, thiab kev ua haujlwm yooj yim, qhov sib cais ntawm lub qhov drilling tshuab sawv tawm raws li kev xaiv saum toj kawg nkaus rau kev lag luam mining loj.
Specifications
|
416T General Specification |
|
|
Qhov Loj |
Φ 90-127 hli |
|
Drill Pipe Sizes |
Φ 60 x 3000 mm |
|
Rotation Torque (Max.) |
1950 N.m |
|
Kev sib hloov ceev |
0- 150 rpm |
|
Pub Zog |
15kn ua |
|
Pull Up Force |
25kn ua |
|
Pub hom |
Chain / lub tog raj kheej |
|
Tramming ceev (Max.) |
2.5 km / h |
|
Gradient |
25 degree |
|
Qhov hnyav |
3830kg / 4270kg |
|
Dimension |
5700 * 2130 * 2200 hli |
|
Power Pack-(ZAYX-416) |
YuChai YC4DK80 58KW |
|
Power Pack - (ZAYX-416-1) |
YuChai YC4DK80 58KW |
|
(Dust collection system raws li cov khoom siv txheem) |
|
|
Qhov sib txawv ntawm Cua Compressor |
|
|
Ua Haujlwm Siab |
0.7 ~ 1.5 Mpa |
|
F.A.D |
7-13 m3 / min |
|
Diesel Ntsia Hlau Compressor Model |
141 SCY-15/158SCY-17 |
|
Electric Ntsia Hlau Compressor Model |
90 SDY-14.5/132SDY-13 |
Shipping & Them Nyiaj
Txhua daim ntawm Miningwell cov cuab yeej thiab cov khoom siv drilling tau dhau los ua kev kuaj xyuas kev nyab xeeb kom ruaj ntseg ntawm cov khoom thauj hauv lub thawv.
Peb txoj kev them nyiaj: credit card, L / C, T / T, Western Union, thiab peb txhawb nqa shipping los ntawm huab cua thiab hiav txwv.
