Specifications
|
Rig qauv |
MWLH-800 |
MWLH-1000 |
|
Qhov hnyav tag nrho |
6000kg |
7 300kg |
|
Tshuab loj (lub xeev thauj) |
4500 * 2100 * 2800 hli |
5600 * 2200 * 3000 hli |
|
Machine size (ua hauj lwm lub xeev) |
4500 * 2600 * 7900mm |
5600 * 2600 * 8500mm |
|
Lub kaum sab xis |
0-90 degree |
0-90 degree |
|
Mast swb stroke |
1200 hli |
1200 hli |
|
BTW |
1200m |
1400m |
|
NTW |
1000m |
1200m |
|
HTW |
800m |
1000m |
|
lub zog lub taub hau lifting force |
300kN ib |
360kn ua |
|
lub zog lub taub hau propulsion |
150kN ib |
180kN ib |
|
Rotary ceev ntawm lub hwj chim taub hau |
0-1400rpm (kev tswj ceev tsis muaj zog) |
0-1400rpm (kev tswj ceev tsis muaj zog) |
|
Qhov siab tshaj plaws rotary torque ntawm lub taub hau fais fab |
1800N.m |
2600N.m |
|
Lub zog lub taub hau propulsion stroke |
2000mm / 3500mm (Yeem) |
3500 hli |
|
Hydraulic system |
Main twj tso kua mis 32MPa * 2, auxiliary twj tso kua mis 20MPa * 3 |
Main twj tso kua mis 32MPa * 2, auxiliary twj tso kua mis 20MPa * 3 |
|
cua txias system |
Dej txias + integrated cua txias |
Dej txias + ywj siab cua txias |
|
fais fab system |
92kW / 118kW / 2400rpm (yeem) |
Weichai rau lub tog raj kheej 129kW / 2400rpm |
|
Hydraulic winch hlua muaj peev xwm |
1000m (6mm steel hlau hlua) |
1200m (6mm steel hlau hlua) |
|
Hydraulic winch lifting quab yuam |
20kn ua |
24kn ua |
|
Hydraulic winch lfting ceev |
110m / min |
110m / min |
|
Txhawb nqa av nkos |
BW90/BW100/BW160 (yeem) |
BW90/BW100/BW160 (yeem) |
|
Khiav qauv |
6t steel 300mm 38 ntu / 8t steel 400mm * 43 ntu (yeem) |
8t steel / 400mm * 43 ntu |
|
Nce toj kaum sab xis |
30 degree |
30 degree |
|
sab saum toj ceev |
2 km / h |
2 km / h |
Khoom nthuav dav
- Hom Lub Npe: D miningwell
- Yam tsawg kawg nkaus Order Quantity: 1 Set
- Packing Paub meej: Standard Export Packing
- Lub sij hawm xa tuaj: 15-20 Hnub
- Cov nqe lus them nqi: L / C, T / T, Western Union
Lub taub hau tig
Lub taub hau rotating txais ib lub tshuab ob-ceev stepless ceev kev cai tsim, qis-ceev torque sib npaug, thiab ruaj khov thiab txhim khu kev qha drilling. Lub taub hau tig tau nruab nrog lub tshuab txhais lus sab nraud los pab txhawb nqa thiab tso cov cuab yeej drilling.
Cav ntawm Hydraulic System
Lub cev muaj zog hydraulic, paub txog nws qhov me me, ua haujlwm ntev tiv thaiv kev cuam tshuam, kev ua neej ntev ntev, thiab lub zog loj heev, ua kom muaj txiaj ntsig zoo drilling.
Hwj chim Part
Txais Yuchai turbocharged cav thiab triple iav twj tso kua mis tag nrho hydraulic tsav, lub zog siab yog siab thiab lub zog tso zis muaj zog.
Tus qauv tsim

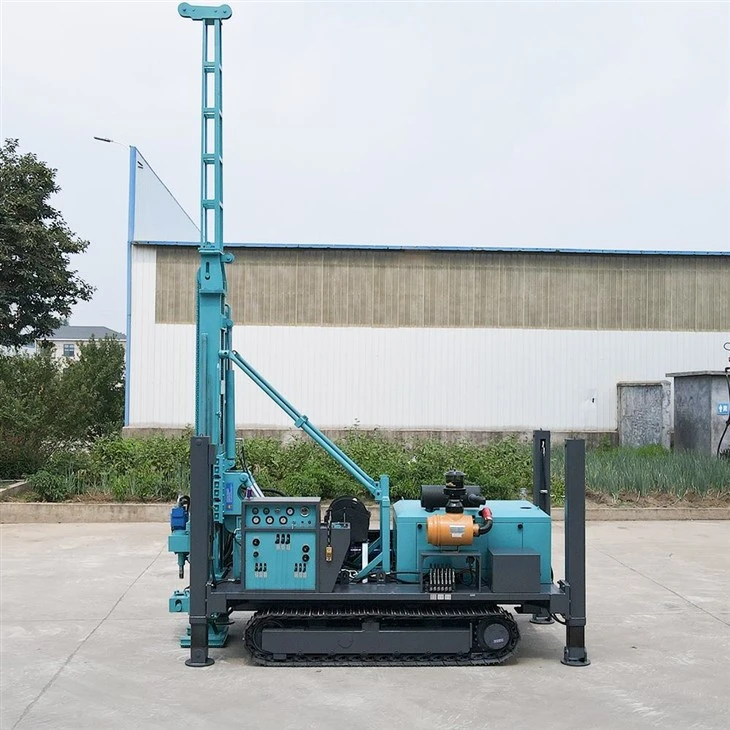

Lub crawler ntawm tag nrho cov hydraulic core drilling rig siv lub tshuab qis-speed high-torque hydraulic, wireless chaw taws teeb tswj taug kev, kev nyab xeeb kev ua haujlwm siab, muaj peev xwm nce siab, thiab kev taug kev ceev ntawm tag nrho lub tshuab tuaj yeem ncav cuag 2Km / h, uas yog tsim nyog. rau thaj chaw roob thiab av nkos hauv av hloov chaw.
Hydraulic Tswj System
Kev teeb tsa hydraulic suav nrog cov roj pom dual-theem, ob-theem cua txias, thiab cov lus qhia-theem dej txias, lav ob qho tib si thermal equilibrium thiab huv huv hauv hydraulic system, yog li txhim kho tag nrho kev ruaj ntseg thiab kev ruaj ntseg ntawm tag nrho cov hydraulic. core drilling rig teeb. Qhov no hydraulic hose yog ua los ntawm lub siab-siab, ob-txheej steel hlau braided tsim, encased nyob rau hauv ib tug ruaj tiv thaiv sab nraud tes tsho.
Shipping & Them Nyiaj
Txhua daim ntawm Miningwell cov cuab yeej thiab cov khoom siv drilling tau dhau los ua kev kuaj xyuas kev nyab xeeb kom ruaj ntseg ntawm cov khoom thauj hauv lub thawv.
Peb txoj kev them nyiaj: credit card, L / C, T / T, Western Union, thiab peb txhawb nqa shipping los ntawm huab cua thiab hiav txwv.
