Khoom nthuav dav
- Hom Lub Npe: D miningwell
- Yam tsawg kawg nkaus Order Quantity: 1 Set
- Ntim Cov Lus Qhia: 40HQ-20GP
- Lub sij hawm xa tuaj: 15-20 Hnub
- Cov nqe lus them nqi: L / C, T / T, Western Union

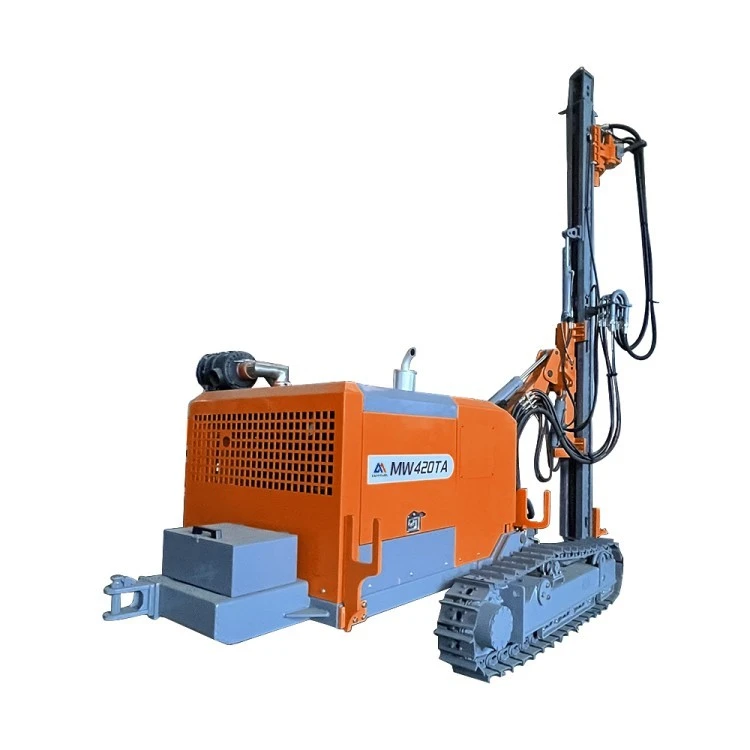

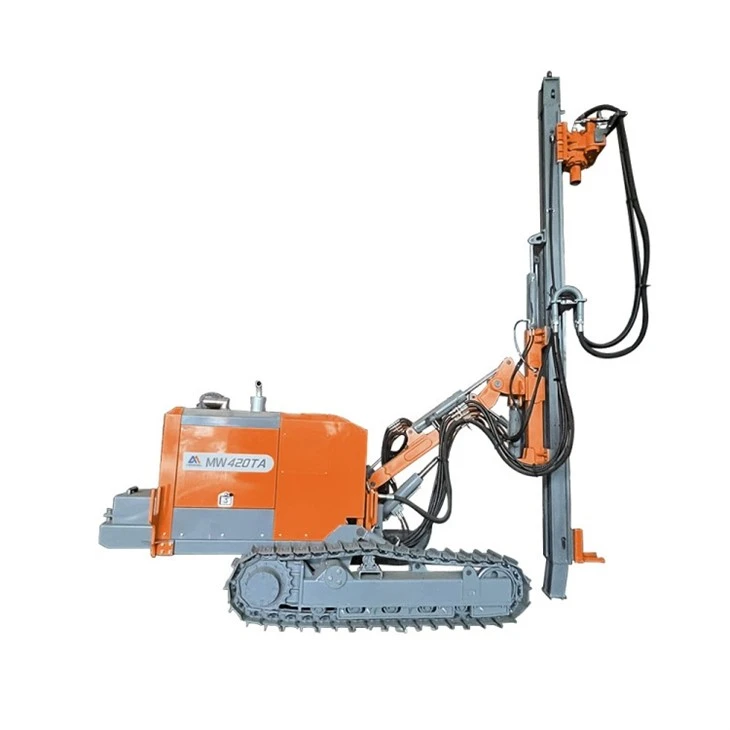

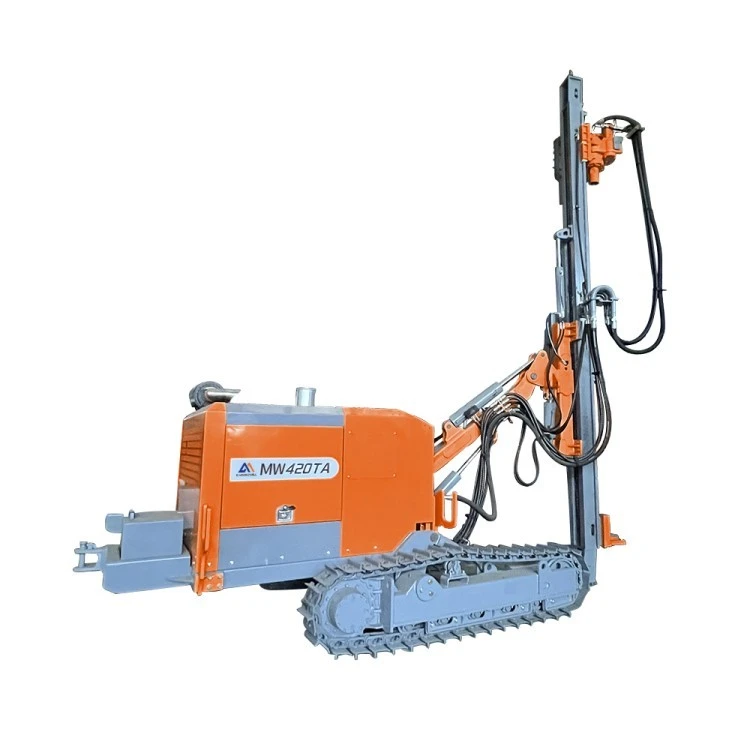

Cov 420 series cia hauv lub qhov drilling cov khoom tau nruab nrog engineering lem thiab plunger motors raws li tus qauv, thiab cov theem ua haujlwm tau ntxiv, uas txhim kho cov cuab yeej nce toj thiab hla lub teb chaws kev ua tau zoo thiab tuaj yeem hloov mus rau qhov chaw nyuaj. Lub down mus rau lub qhov drilling rig tuaj yeem laum qhov ntsug rau qhov chaw siab kom tau raws li qhov xav tau ntawm kev ua haujlwm sib txawv.
Qhov zoo
1. Tag nrho lub cev ntawm MW420TA nqes mus rau lub qhov drilling rig txhawb lub zog ntawm txhua qhov qauv, lub zog txav ntawm lub qhov laum rig tuaj yeem ncav cuag 20KN thiab lub zog nqa tuaj yeem ncav cuag 45KN, uas tuaj yeem ua tau raws li qhov xav tau ntawm ntau yam kev ua haujlwm. tej yam kev mob.
2. Peb rov tsim kho lub taub hau ntawm qhov sib cais ntawm qhov zoo drilling rig 420, siv ob lub cav tig lub taub hau, lub zog rotary tuaj yeem ncav cuag 3200N.m, uas txhim kho lub zog ntawm lub thawv lub cev thiab ua kom lub neej ntev thiab ruaj khov. ntawm tag nrho lub tshuab.
3. Qhov no hauv lub qhov drill rig nta cov ntaub ntawv tsim tshiab, muab kev yooj yim dua hauv kev saib xyuas thiab siv dua li lwm cov qauv drilling rig, thiab nws qhov kev pom zoo tag nrho tau raug txhim kho ntxiv.
4. 420 yog tsim los nrog cov plua plav qhuav qhuav, kom ntseeg tau tias cov txheej txheem drilling tsis muaj plua plav, thaum tseem muab cov txheej txheem ntau dua eco-conscious thiab lub zog txuag drilling.
5. Raws li tus thawj 420, qhov sib cais-hom Down lub qhov drilling rig MW420TA tau ntxiv kev ua haujlwm ntawm kev taug qab theem, uas tuaj yeem hloov mus rau qhov hnyav struts thiab txhim kho kev ua haujlwm ntawm cov khoom siv hla teb chaws, thiab nws tuaj yeem ua tau. laum vertically ntawm qhov chaw siab tshaj kom tau raws li qhov xav tau ntawm kev tsim kho nyob rau hauv kev ua haujlwm sib txawv.
Specifications
Qhov zoo tshaj plaws drilling txoj kab uas hla ntawm down lub qhov xyaum: φ115/138 hli
Matching cua compressor program: Hluav taws xob Portable Screw Compressors: 110SDYT-18, 132SDYT-18
Diesel Portable Ntsia Hlau Compressors: 162SCYT-18, 186SCYT-18, 198SCYT-20
|
Qauv |
MW-420TA |
|
Qhov tob |
30m |
|
Drill Pipe Sizes |
Φ 76x3, 000 hli |
|
Lub qhov taub |
Φ{0}} hli |
|
Rauj |
4''/5'' |
|
Rotation Torque (Max.) |
3200 N.m |
|
Kev sib hloov ceev |
60-120 rpm |
|
Ua Haujlwm Siab |
0 7-2.5Mpa |
|
F.A.D |
8-20m³/min |
|
Pub Zog |
20kn ua |
|
Pull Up Force |
45kn ua |
|
Pub hom |
Chain / Lub tog raj kheej |
|
Tramming ceev (Max.) |
3 km / h |
|
Gradient |
25 degree |
|
Track Frame Oscilation |
± 10 degree |
|
Qhov hnyav tag nrho |
4 700kg |
|
Thauj Dimensions |
5100 * 2324 * 2550mm |
Daim ntawv thov
Qhov sib cais ntawm lub qhov laum rig, feem ntau yog rau quarries, cement mines, qhib qhov chaw mines, thiab lwm yam mines, muaj ib tug 4-inch impactor, lub ntsiab 115- qhov taub, siab drilling efficiency, zoo heev plua plav collection effect. Down lub qhov zoo drilling rig muaj ntau yam kev siv thiab lwm yam nta, yog dav siv nyob rau hauv mines, thiab lub teb chaws tiv thaiv, kev thauj mus los, kev txuag dej, pob zeb, thiab lwm yam dej num, nws yog ib qho zoo tagnrho pob zeb drilling khoom nrov nrog cov neeg siv.
Shipping & Them Nyiaj
Txhua daim ntawm Miningwell cov cuab yeej thiab cov khoom siv drilling tau dhau los ua kev kuaj xyuas kev nyab xeeb kom ruaj ntseg ntawm cov khoom thauj hauv lub thawv.
Peb txoj kev them nyiaj: credit card, L / C, T / T, Western Union, thiab peb txhawb nqa shipping los ntawm huab cua thiab hiav txwv.
Cim npe nrov: Tuam Tshoj hydraulic split mining down lub qhov drilling rig, Tuam Tshoj hydraulic split mining cia lub qhov drilling rig manufacturers, lwm tus neeg, Hoobkas
