Khoom nthuav dav
Lub npe: miningwell
Yam tsawg kawg nkaus kom muaj nuj nqis: 1set
Pob Paub meej: 40HQ-20GP
Lub sij hawm xa tuaj: 15-20 hnub
Cov nqe lus them nqi: L / C, T / T, Western Union

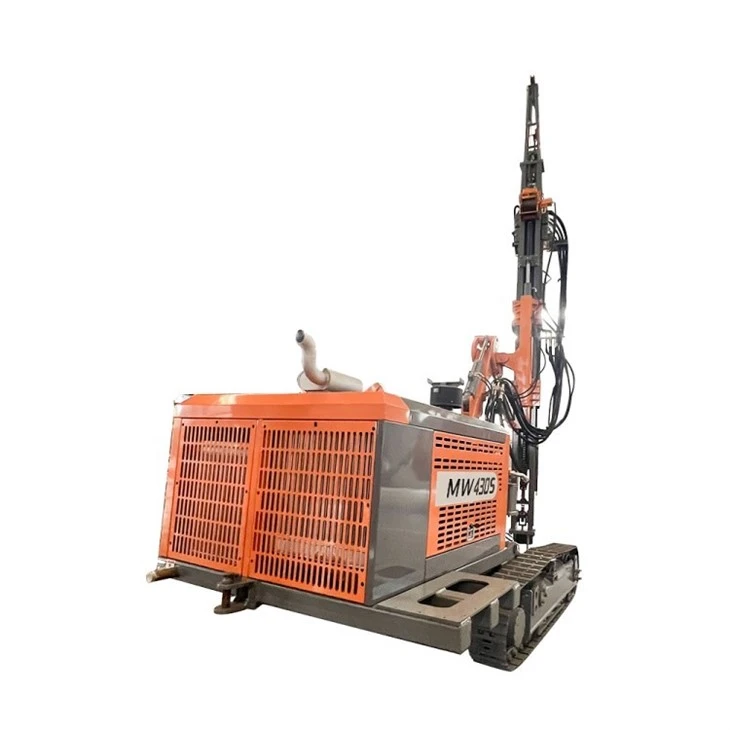

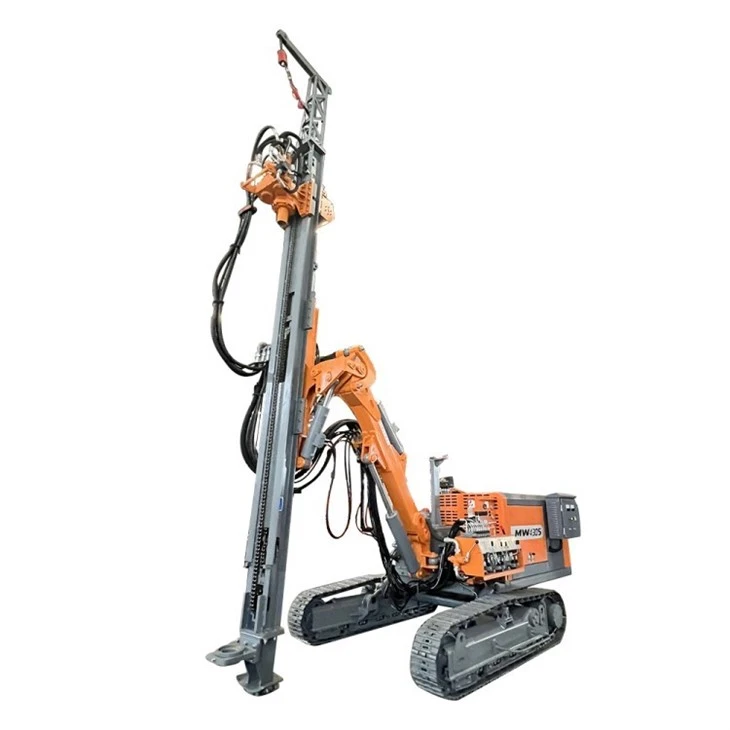

Qhov sib cais thauj tog rau nkoj drilling rig no yog ib qho kev ua haujlwm siab drilling rig ntawm nws tus kheej tsim los ntawm peb lub tuam txhab. Nws yog dav siv nyob rau hauv kev thauj tog rau nkoj, thauj tog rau nkoj reinforcement, foundation pit reinforcement, tunnel support, thiab lwm yam nyob rau hauv engineering teb xws li kev tsim kho, mining, railways, thiab kev loj.

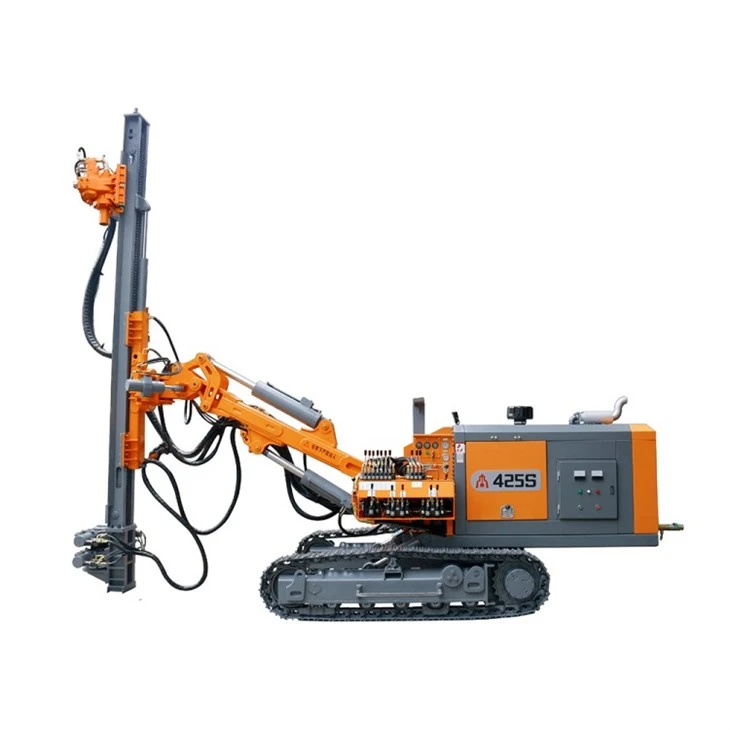

Los ntawm kev kho lub zog lub taub hau, lub thauj tog rau nkoj drilling rig tau yooj yim nqa tawm tag nrho cov kev tsim kho kom tau raws li ntau yam kev xav tau ntawm engineering. Tam sim no, peb cov qauv drilling rig muaj xws li 430S / 430 (2) / 420ST / 425S. Thov nyob twj ywm rau cov qauv tshiab ntxiv.
Khoom nta
1.Tus qauv fais fab ntawm hom kev sib cais thauj tog rau nkoj drilling rig yog ob lub zog tsim, nruab nrog 74KW diesel cav thiab IP54 55KW hluav taws xob lub cev muaj zog. Lub zog tuaj yeem hloov tau txhua lub sijhawm, uas hloov tau yooj yim thiab yooj yim;
2. Lub zog loj-torque ob-cycloid lub cev muaj zog yog siv los tsav lub taub hau rotary, uas ua rau kom lub zog ntawm qhov drilling rig, thiab torque tuaj yeem ncav cuag 8000N.m;
3. Qhov no sib cais diesel-hluav taws xob dual-power thauj tog rau nkoj drilling rig ua rau nws cov pob zeb drilling aperture ntau dua, ua tau raws li qhov xav tau ntawm φ350 loj-inch drilling, thiab tuaj yeem siv dav hauv lub hauv paus qhov chaw thauj tog rau nkoj pas nrig thiab cov yeeb nkab, qhov loj-inch twist laum pas nrig. kev ua haujlwm;
4. Lub rotary dual-speed switching valve yog ib qho yooj yim rau kev khiav lag luam, uas muaj peev xwm ua tau raws li cov kev xav tau ntawm kev khiav hauj lwm nrog txawv torques thiab speeds, thiab yog nruab nrog ib tug pas nrig unloading ntaus ntawv raws li tus qauv;
5. Lub thoob ntiaj teb engineering machinery taug kev crawler muaj zog nce toj thiab txhim khu kev qha zoo.
6. Nruab nrog ib qho kev ywj pheej boom lifting mechanism kom tau raws li qhov chaw lifting xav tau rau cov khoom xws li steel tawb, nce kev ua hauj lwm ntau yam ntawm lub laum caj npab, thiab ua tau raws li qhov yuav tsum tau ntawm ntau yam kev ua hauj lwm xws li ntsug qhov, pem hauv ntej siab thiab qis kab rov tav qhov. , thiab sab siab thiab qis kab rov tav qhov;
7. Lub propulsion beam muaj qhov chaw txaus hloov pas nrig, thiab lub tshuab propulsion siv cov hlua txuas rau cov propulsion, uas muaj cov qauv txhim khu kev qha thiab nce propulsion lifting force;
Qhov zoo
peb cov khoom zoo
Split tsim
Lub cav tseem ceeb sib cais los ntawm cov pab pawg fais fab, uas txhim kho qhov maneuverability ntawm qhov drilling rig, yooj yim txav, thiab tuaj yeem ua haujlwm hauv qhov nqaim thiab tsis sib xws.
Kev ua haujlwm siab
Qhov sib cais diesel-electric dual-power laum rig yog teeb tsa nrog lub zog siab hydraulic. Tag nrho cov no tuaj yeem ua tiav kev ua haujlwm ntawm drilling thiab ua kom pom kev ua tau zoo hauv ntau hom pob zeb.
Muaj kev nyab xeeb thiab txhim khu kev qha
Qhov sib cais thauj tog rau nkoj drilling rig muaj ntau lub ntsiab lus hydraulic tswj system los lav kev nyab xeeb ntawm cov neeg ua haujlwm thiab cov drilling rigs.
Ua haujlwm yooj yim
Lub pob zeb drilling yog nruab nrog lub cab xis xis nrog qhov dav ntawm qhov pom, nrog kev rwb thaiv tsev zoo heev thiab kev ua haujlwm tsis zoo.
Specifications
|

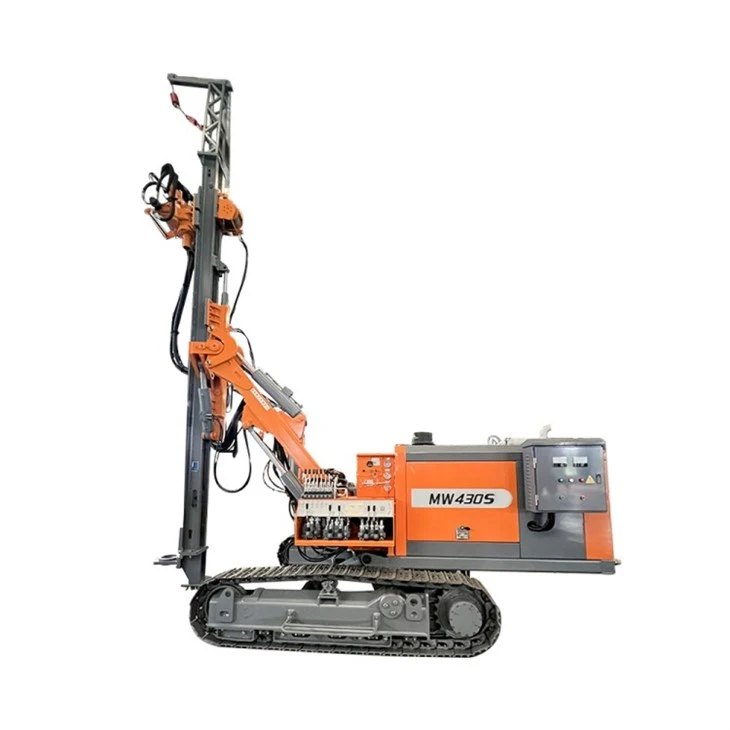

430S Technical Specifications |
|||
|
Cav tsim |
Yuchai (Tuam Tshoj III) |
Pub Zog |
20kn ua |
|
Cav qauv |
YC4DK-100 |
Pull Up Force |
45kn ua |
|
Cav ntsuas lub zog |
73.5 kWm 2 |
Pub hom |
Chain / Lub tog raj kheej |
|
Qhov tob |
30 m |
Tramming ceev (Max.) |
3 km / h |
|
Drill Pipe Sizes |
Φ{0}} hli |
Slope Climbing peev xwm |
30 degree |
|
DTH Rauj Loj |
4" /5" |
Track Frame Oscillation |
± 10 degree |
|
Rotation Torque (Max.) |
0-100rpm |
Qhov hnyav tag nrho |
5,820kg / 6,460kg |
|
Kev sib hloov ceev |
3,500 N.m |
Thauj Dimensions |
7370 * 2360 * 2560 hli |
|
Ua Haujlwm Siab |
0 7-2.5Mpa |
Cov Plua Plav Qhuav |
Kev xaiv |
|
F.A.D |
10-20 m 3 / min |
|
|
Daim ntawv thov
Split anchor drilling rigs feem ntau yog siv rau cov av sib tsoo thiab txaus ntshai pob zeb anchoring tej yaam num, tshwj xeeb tshaj yog rau txoj kab nqes siab pob zeb anchoring tej yaam num. Tsis tas li ntawd, nws tseem tsim nyog rau hauv nroog sib sib zog nqus lub hauv paus qhov kev txhawb nqa, tiv thaiv ntab anchors thiab lub hauv paus grouting reinforcement engineering qhov, blasting qhov rau blasting tej yaam num, high-pressure dav hlau grouting pawg, tunnel yeeb nkab los txhawb lub qhov thiab lwm yam kev tsim kho scenarios.
Shipping & Them Nyiaj
Txhua daim ntawm Miningwell cov cuab yeej thiab cov khoom siv drilling tau dhau los ua kev kuaj xyuas kev nyab xeeb kom ruaj ntseg ntawm cov khoom thauj hauv lub thawv.
Peb txoj kev them nyiaj: credit card, L / C, T / T, Western Union, thiab peb txhawb nqa shipping los ntawm huab cua thiab hiav txwv.
