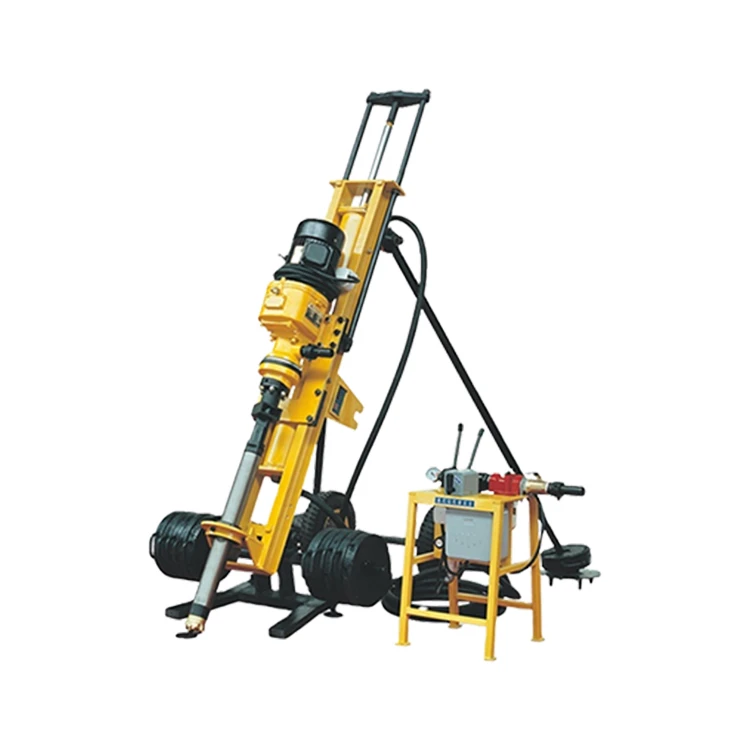

一, Dab tsi yog mini pneumatic Laum?
Mini pneumatic Laum yog lub teeb pob zeb drilling lossis drilling cov chaw muaj cov chaw ua haujlwm lossis txhim kho qhov chaw loj lossis muaj kev nyab xeeb .
2, Mini Pneumatic Laum Qauv Txheej Txheem
Lub cev muaj zog pneumatic / pob zeb laum lub cev
Siv cov cua compressed los tsav lub piston sab hauv los ua kom zoo thiab ua tiav cov kev cuam tshuam thiab kev sib hloov ua haujlwm.
Feem ntau ntawm lawv tau tsim tsa cov kev cuam tshuam, uas tuaj yeem ua tiav "cuam tshuam + kev sib hloov + kev ua haujlwm ntawm tib lub sijhawm.
Laum lossis laum me ntsis
Nyob ntawm daim ntawv thov, Laum Bet Bits, tho kev, Reamer lossis cov khoom siv coring tuaj yeem ntsia .
Kov / mounting puag
Muab kev pab txhawb nqa kev ua haujlwm, tuaj yeem tuav tau, tshem tawm lossis txuas nrog lub bracket rau kev ua haujlwm .
Huab Cua Nkag
Txuas rau ib qho cua sab nraud ua kom haum, thiab xav tau kev sib tw ua pa roj, siab tswj cov qub, roj nplua, etc .
Kev tso tawm thiab plua plav tawm (ib co qauv)
Txhim kho kev ua haujlwm thiab txuas ntxiv lub neej ntawm cov khoom .
3, Mini Pneumatic Laum Cov Nta
| Nta | piav txog |
|---|---|
| Lub teeb pwm thiab hloov tau | Loj me me, lub teeb hnyav (feem ntau 3-25 kg), tuaj yeem ua haujlwm los ntawm ib tus neeg. |
| Muaj zog siv tau | Tuaj yeem ua haujlwm ntawm qhov siab tshaj plaws, ntawm cov toj siab, hauv cov hlua, thiab hauv txoj kab nqaim . |
| Pneumatic Drive | Tsis yog nyob ntawm hluav taws xob, haum rau cov nplaim taws thiab cov hluav taws xob tawg (xws li cov xaim hluav taws xob, roj thiab roj av). |
| Kev nyab xeeb siab | Tsis muaj hluav taws xob lub txim taws, tsis muaj cov hluav taws kub hluav taws xob, kev nyab xeeb ua haujlwm . |
| Yooj yim txij nkawm | Cov qauv yooj yim, ob peb seem, txij nkawm yooj yim . |
4, Kev Ntsuas Cov Lus Ntsuas (Piv Txwv)
| 项目 | 参数范围 |
|---|---|
| Drilling Diam | 20-30 hli |
| Qhov siab tshaj plaws Drilling qhov tob | 0.5-5 米 (nyob ntawm cov pob zeb tsim) |
| Ua Haujlwm Cua Siab | 0.4-0.7 MPa (4-7 bar) |
| Kev Siv Cua Cua | 3-10 m³ / min |
| Cuam Tshuam zaus | 1500-2500 zaug / feeb |
| Drilling qhov hnyav | 3-20 kg |
| Laum Qws Yam | Hexagonal Laum Qws H19 / H22 lossis me me uas hla Laum Qws |
5, Mini Pneumatic Laum Cov Ntawv Cog Lus
Me-teev mining ua haujlwm
Moj tej pob zeb ntiav khib nyiab qhov drilling rau cov hlau thiab tsis-hlau cov mines.
Kev Tshawb Nrhiav Tebchaws Geological thiab Coring
Kev tshawb nrhiav sai sai, tshwj xeeb tshaj yog tsim nyog rau lub teeb ci hauv kev tshawb nrhiav .
Qhov chaw thiab txoj kev txhawb nqa
Drilling ntawm embedded qhov thiab thauj tog rau nkoj lub qhov chaw, haum rau cov chaw txwv zoo .
Pob Zeb Tsuas
Threading ntawm nplua qhov zoo, drilling ntawm blast qhov, thiab lwm yam .
Thiab kev cawm dim
Qhib qhov, cua tshuab, thiab nrhiav tau qhov hauv av qeeg agllide cheeb tsam .
6, sib piv nrog cov riging loj
| yam haujlwm | Mini Pneumatic Laum | Loj Hydraulic / Electric Drilling Rig |
|---|---|---|
| Ua Haujlwm Chaw | Tuaj yeem ua haujlwm hauv qhov chaw me me |
Yuav tsum muaj lub tiaj thiab dav dav ua haujlwm |
| Tus nqi | Tsawg heev | Siab dua |
| Tus tsav | Ib tug neeg nkaus xwb | Ntau tus neeg ua haujlwm lossis tus neeg tsav tsheb ua haujlwm |
| Siv tau ua haujlwm | Ntiav qhov, ua haujlwm hauv zos | Qhov tob tob, txuas ntxiv engineering |
| Fais Fab Hom | Pneumatic (Kev Ruaj Ntseg Siab) | Hydraulic, Fais lossis diesel tsav |
7, Xaus
Mini pneumatic Laum yog qhov zoo tshaj plaws drilling cov cuab yeej haum rau cov kev tshawb fawb txog geologity, kev nyab xeeb, kev nyab xeeb thiab kev ua haujlwm qis.
Yog tias koj muaj ib qho tshwj xeeb lub cheeb, pob zeb tsim lossis siv, Kuv tuaj yeem pom zoo kom haum Mini pneumatic Laum qauv rau koj .
Khoom Qhia Qhia
- Hom Lub Npe: D Miningwell
- Yam tsawg kawg txiav txim kom muaj nuj nqis: 1 teeb
- Ntim Paub meej: Cov qauv export
- Lub sij hawm xa tuaj: 7-10 hnub
- Cov ntsiab lus them nqi: L / C, T / T, Western Union
Nta
{{01.} qhov kev lag luam qis dua, kev lag luam zoo .
2.}} Tus Qauv Ncaws Pob Tawb, ruaj khov thiab txhim kho {1} .
3.}} Tau txais hydraulic thev naus laus zis, txuag lub zog thiab kev ua haujlwm siab.
{{04. Siab High Torque rotque rotures reducer ua kom muaj kev vam meej kev ua haujlwm nyob rau hauv muaj zog kev co lossis hnyav thauj khoom.
5. Cov txheej txheem thev naus laus zis tau nruab nrog lub tshav dav hlau kom kho cov quab yuam tawm thiab xyuas kom meej
{{06. hydraulic tshuab hluav taws xob nrog pneumatic thiab hluav taws xob. Configuration zog kom tau raws li cov kev siv tau ntawm ntau yam kev ua haujlwm.
Daim ntawv thov
Cov khoom siv siv rau kev siv hluav taws xob borehole yog kev sib dhos, ua haujlwm yooj yim, yooj yim nqa cov khoom siv hluav taws xob ua ntej ntawm cov qhib-pit mines.
Thauj & Them Nyiaj
Txhua txhua daim ntawm cov khoom siv miningwell thiab drilling rig undergoes qhov ruaj nrob kev ruaj ntseg kos kom ntseeg tau tias kev nyab xeeb ntawm cov thawv thauj khoom hauv lub thawv {}}
Peb txoj kev them nyiaj: Daim npav rho nyiaj, L / C, T / T, Western Union, thiab peb txhawb nqa los ntawm huab cua thiab los ntawm hiav txwv .
Cov FAQ
|
Kev tsis muaj |
|||
|
Tus qauv |
Qd70 |
Qd100 |
Qd120 |
|
Drilling Inch (MM) |
50-90 |
90-130 |
90-130 |
|
Siv pob zeb |
Ntau dua los yog sib npaug rau 20 |
Ntau dua los yog sib npaug rau 20 |
Ntau dua los yog sib npaug rau 20 |
|
DRILLING qhov tob (m) |
15 |
Ntau dua los yog sib npaug rau 25 |
Ntau dua los yog sib npaug rau 30-40 |
|
DRILLING Rotate Ceev (R / min) |
110 |
110-160 |
110-160 |
|
Kev Ua Haujlwm Cua Siab (Mpa) |
0.5-0.7 |
0.5-1.0 |
0.5-1.0 |
|
Kev Noj Cua (M3 / min) |
7 |
10 |
13 |
|
Lub tog raj kheej taub (hli) |
90 |
140 |
140 |
|
Expulsion stroke (hli) |
1070 |
1070 |
1070 |
|
Max propelled quab yuam (n) |
3600 |
9600 |
9600 |
|
Hluav Taws Xob Lub Zog Hluav Taws Xob (KW) |
3 |
4 |
4 |
|
Hluav Taws Xob Tsav Voltage (V) |
380 |
380 |
380 |
|
Drilling Qws OD (hli) |
42 |
60 |
60 |
|
Drilling Qws Ntev (hli) |
1025 |
1025 |
1025 |
|
Dimension (mm) |
1740*260*420 |
2230*380*550 |
2230*380*550 |
|
Hnyav (kg) |
300 |
450 |
450 |
