Specifications
|
Technical Parameters |
||
|
Drilling peev |
Drilling qhov tob rau qhov dej zoo |
350m (152mm ~ 203mm) |
|
Qauv drilling 75mm Wireline coring N loj |
800m |
|
|
Borehole (Drill ntsis) dia. |
Ø75 ~ 350 hli |
|
|
Drilling kaum sab xis 350m (152mm ~ 203mm) |
75-90 degree |
|
|
Tsav taub hau |
Lifting peev |
240kn ua |
|
Thrusting muaj peev xwm |
180kN ib |
|
|
Rotary ceev RPM |
Tom ntej: 27,51,93,129,156,193,247,437,737,901r / min |
|
|
Rov qab: 48,219 r / min |
||
|
Max. Torque |
10500N.m |
|
|
Lub zog |
Cav Qauv |
YN33GBZ |
|
Rated zog / ceev |
65 kW / 2400r / min |
|
|
Mechanical winch muaj peev xwm |
7.5 t ib |
|
|
Laum lub cev |
Drill pipe dia. |
Ø50 / Ø60 / Ø76 / Ø89mm NQ / HQ / PQ |
|
Drill yeeb nkab ntev |
3000 hli |
|
|
Mud Pump |
BW160/BW200/BW250 |
|
|
Cua compressor |
Kev siv cua |
16 ~ 35m3 / min |
|
Cua siab |
10.5-24.6 hli |
|
|
Crawler chassis |
Taug kev ceev |
0~ 2 km/h |
|
Nce toj kaum |
Max. 25 degree ~ 30 degree |
|
|
Dimension |
Kev thauj mus los |
6300 * 2000 * 2600 hli |
|
Ua haujlwm |
7800 * 2400 * 3800 hli |
|
|
Nyhav nrog steel crawler |
7500kg ib |
|
Khoom nthuav dav
- Lub npe: miningwell
- Yam tsawg kawg nkaus kom muaj nuj nqis: 1set
- Ntim cov ntsiab lus: txheem export ntim
- Lub sij hawm xa tuaj: 15-20 hnub
- Cov nqe lus them nqi: L / C, T / T, Western Union

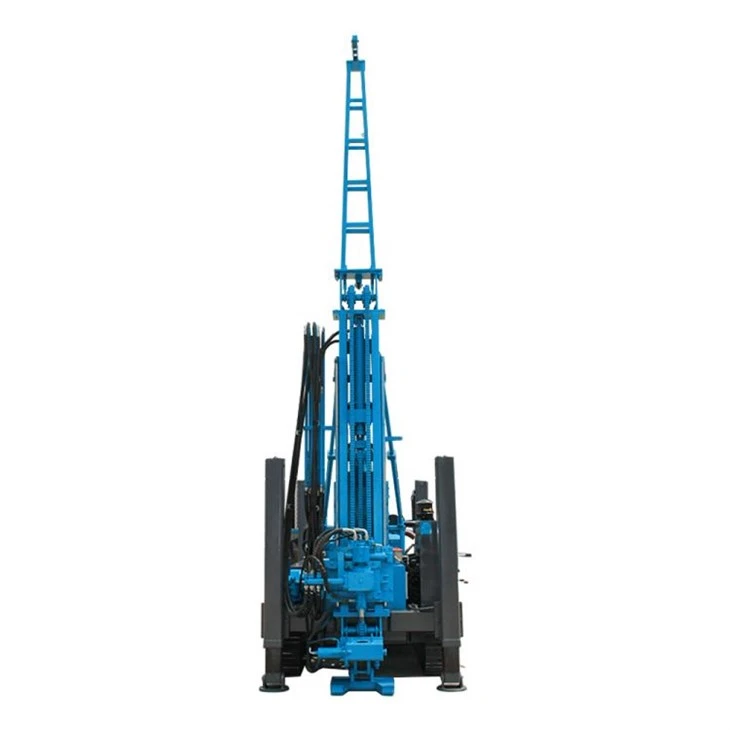

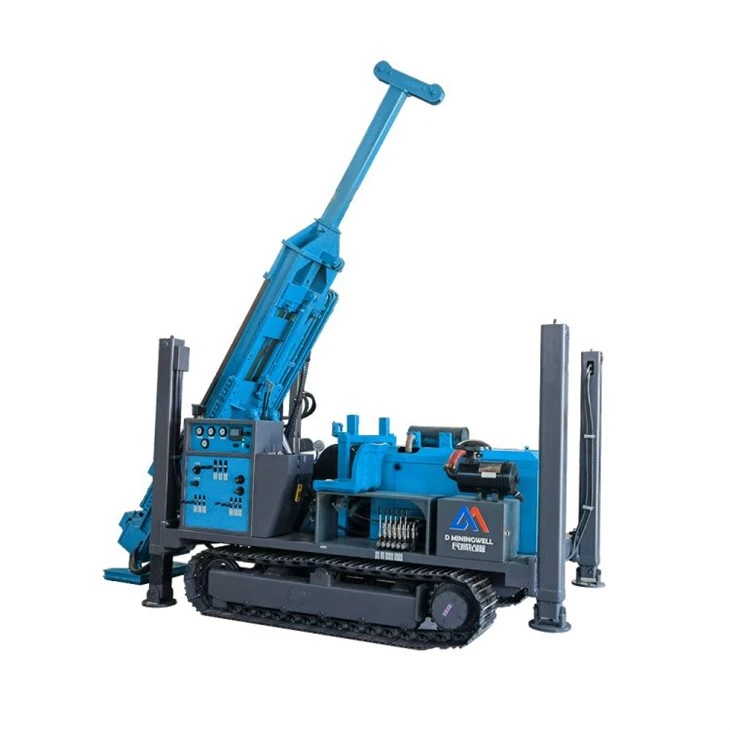

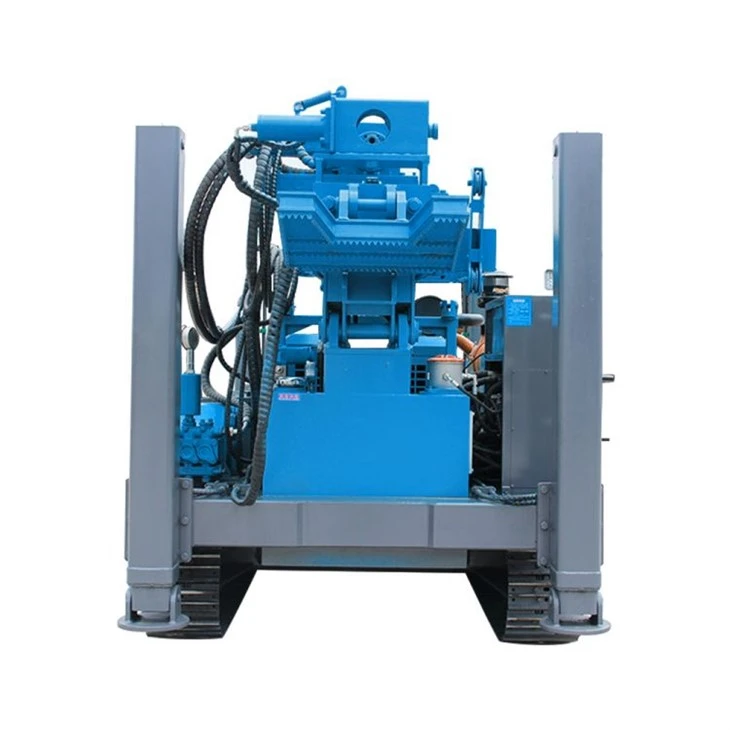

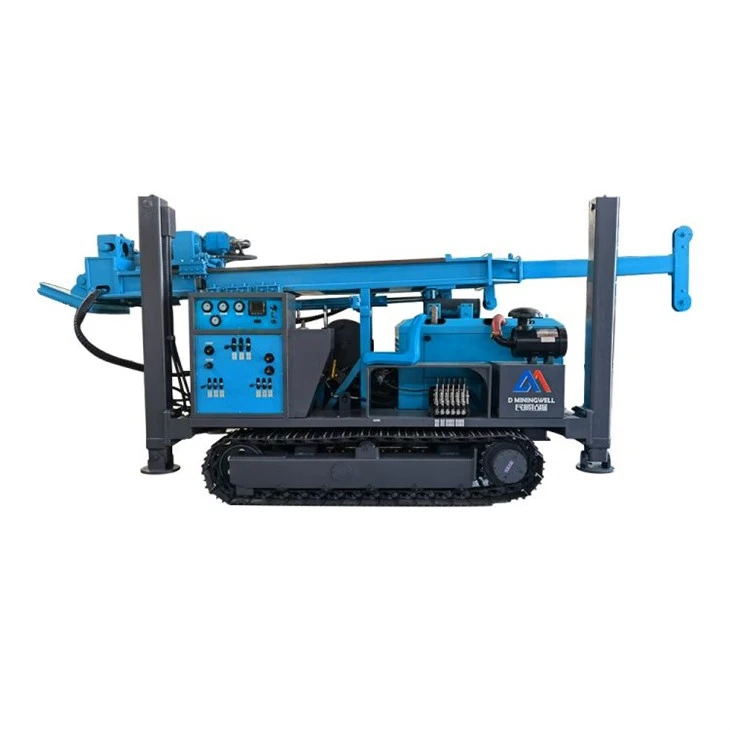

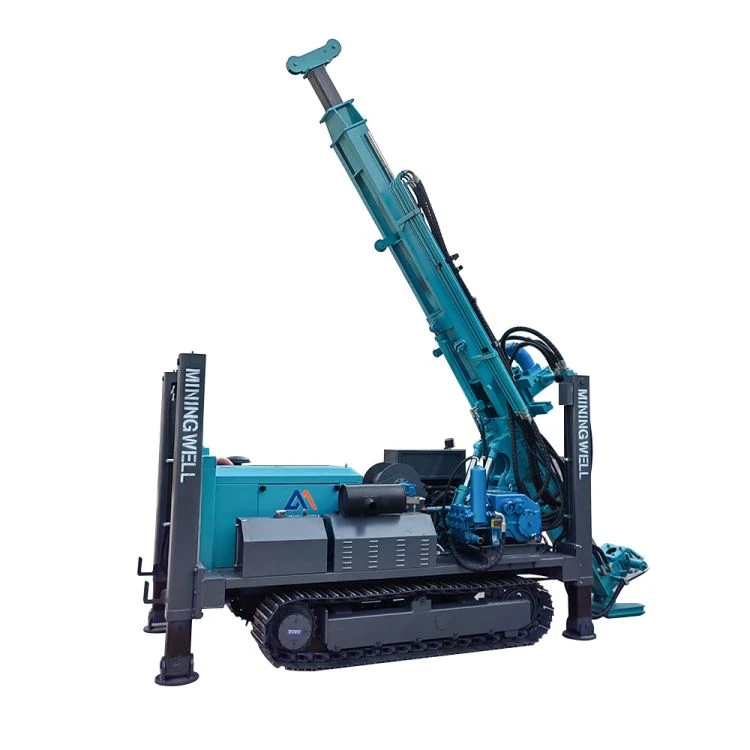

Qhov no core drilling tshuab mining yog ib yam ntawm cov cuab yeej drilling ntawm nws tus kheej tsim los ntawm lub tuam txhab, uas tuaj yeem laum nyob rau hauv qhov ntau ntawm 75-90 degree, kev sib xyaw ua haujlwm ntawm dej drilling thiab pneumatic drilling, txais yuav 5- ceev phau ntawv twists , nrog rau ntau yam, thiab qhov zoo zog hloov dua siab tshiab yog rhiab heev thiab saj zawg zog, uas yog ob zaug ntau npaum li cov hydraulic kis tau tus mob, thiab lub hwj chim tsav yog me me, thiab ntau npaum thiab lub zog txuag. daws qhov teeb meem ntawm lub teeb tsis muaj zog ntawm lub nplhaib drilling rig rau cov hlaws txheej thiab pebble txheej.
Qhov zoo
1) Cov cuab yeej no tau txais txiaj ntsig zoo thiab muaj ntau yam, tsim los rau drilling cov dej hauv qab dej, muaj feem xyuam rau kev tsim cov dej hauv dej, qhov dej ua liaj ua teb, qhov dej kub hauv dej, thiab ntau yam borehole hom. Qhov no yog tshwj xeeb tshaj yog haum rau tej yaam num nyob rau hauv toj siab terrains thiab rocky dej.
2) Qhov no hydraulic core drilling apparatus muaj peev xwm los tsim lub qhov nyob rau hauv ntau txheej txheej, nrog rau qhov widest laum txoj kab uas hla yog 450mm.
3) Lub tshuab fais fab lub taub hau yog nruab nrog lub siab torque hydraulic lub cev muaj zog, lub tshuab tswj hydraulic siv lub tshuab hluav taws xob lub cav nrog lub tog raj kheej hydraulic dav, lub tshuab hluav taws xob muaj kev nyab xeeb los ntawm ob-theem huab cua pom, lossis lwm yam, koj tuaj yeem ncaj qha siv cov cua huv huv los ntawm cov cua compressor.
4) Lub twj tso kua mis tshwj xeeb pab pawg tsim thiab kev tswj hwm hauv nruab nrab, yooj yim tswj thiab yooj yim rau kev khiav lag luam.
5) Lub tshuab txais excavator crawler chassis nrog kev ua haujlwm zoo hla teb chaws, thiab tseem tuaj yeem txuas rau cov tsheb thauj mus los kom zoo dua.
6) Ob qhov kev sib hloov thiab kev pub noj ceev, tuaj yeem ua haujlwm hauv av thiab pob zeb txheej.
Shipping & Them Nyiaj
Txhua daim ntawm Miningwell cov cuab yeej thiab cov khoom siv drilling tau dhau los ua kev kuaj xyuas kev nyab xeeb kom ruaj ntseg ntawm cov khoom thauj hauv lub thawv.
Peb txoj kev them nyiaj: credit card, L / C, T / T, Western Union, thiab peb txhawb nqa shipping los ntawm huab cua thiab hiav txwv.
