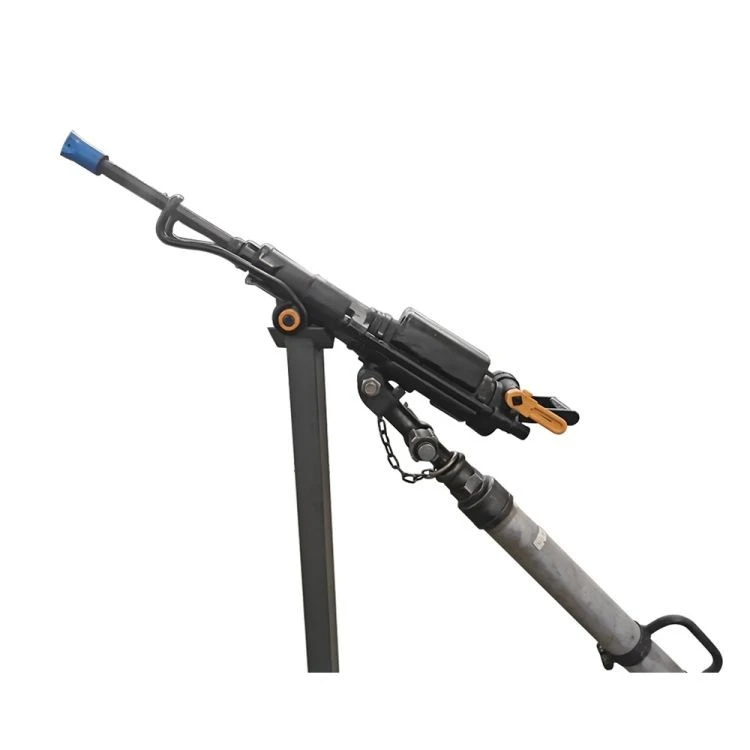

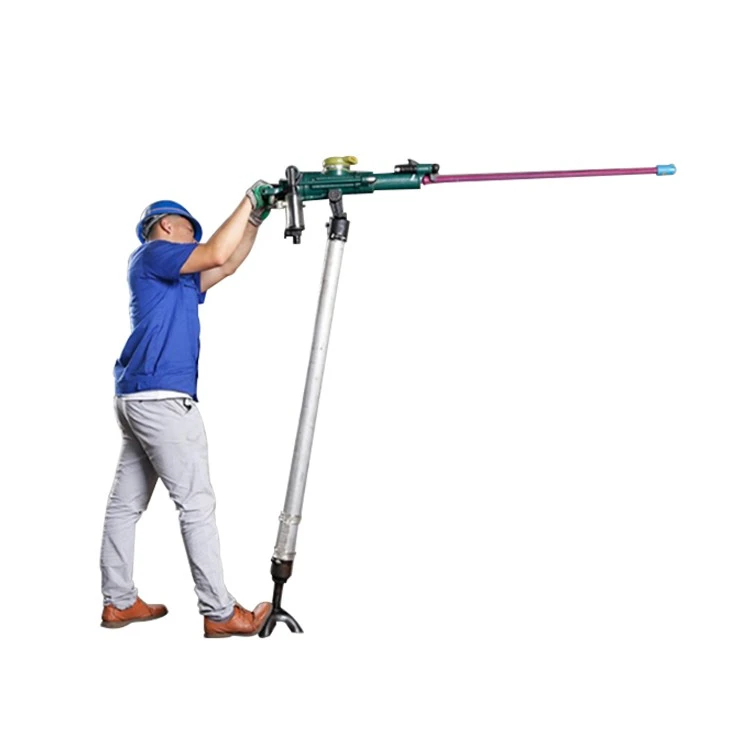

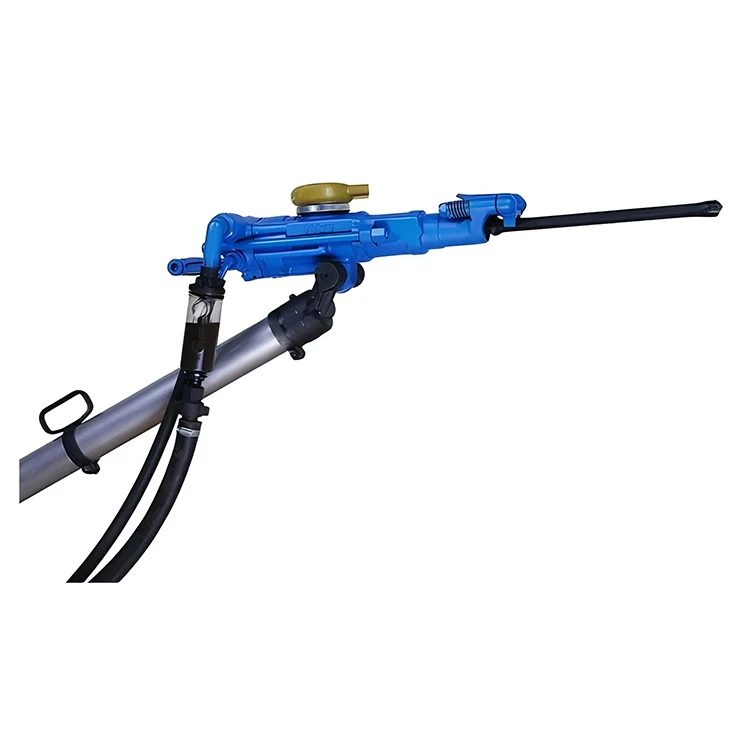

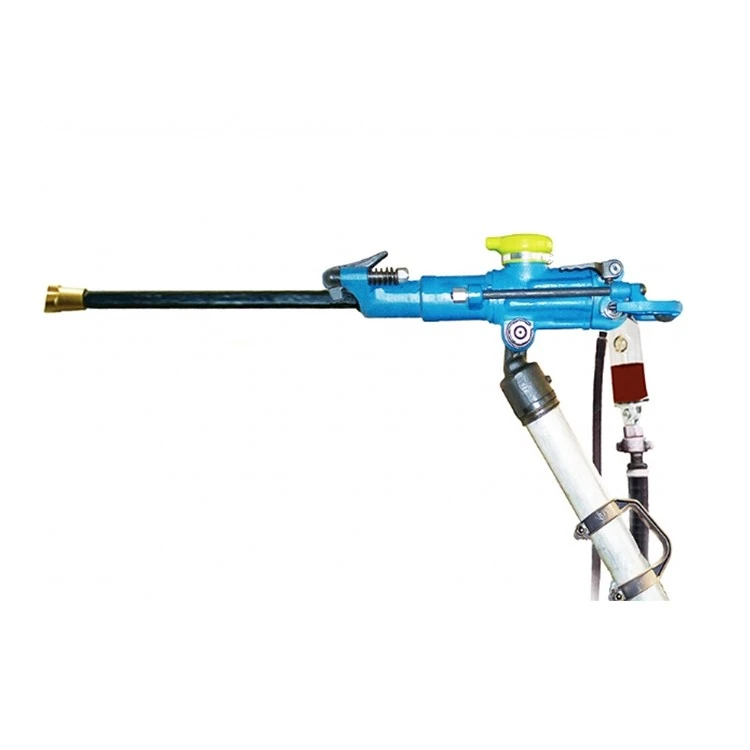

DMININGWELL pob zeb xyaum muaj dej ntws, lance tig thiab thawb pas nrig tswj nyob rau tom qab ntawm lub pob zeb xyaum. Lub lubricator hauv-kab yog suav nrog hauv kev xa khoom ntawm txhua lub pob zeb laum, nrog rau cov pas nrig uas tsim nyog.
Technical Data
|
Pneumatic Pob Zeb Laum Nrog Cua Leg |
|||||
|
Technical Parameters |
YT 28 |
YT 27 |
YT29A |
YT24C |
YT 24 |
|
Qhov hnyav (kg) |
26 |
27 |
26.5 |
24 |
24 |
|
Ntev (mm) |
661 |
668 |
659 |
628 |
678 |
|
Cua siab (Mpa) |
0.4-0.63 |
0.4-0.63 |
0.4-0.63 |
0.4-0.63 |
0.4-0.63 |
|
Tus nqi cuam tshuam (Hz) |
Ntau dua lossis sib npaug li 37 |
Ntau dua lossis sib npaug li 39 |
Ntau dua lossis sib npaug li 39 |
Ntau dua lossis sib npaug li 37 |
Ntau dua lossis sib npaug li 31 |
|
Kev siv cua (L / S) |
Tsawg dua lossis sib npaug li 81 |
Tsawg dua los yog sib npaug rau 86 |
Tsawg dua lossis sib npaug li 88 |
Tsawg dua los yog sib npaug li 80 |
Tsawg dua lossis sib npaug li 67 |
|
Impact Zog (J) |
Ntau dua lossis sib npaug li 70J |
Ntau dua lossis sib npaug li 75J |
Ntau dua lossis sib npaug li 78J |
Ntau dua lossis sib npaug li 65J |
Ntau dua lossis sib npaug li 65J |
|
Lub tog raj kheej * Stroke (mm) |
80*60 |
80*60 |
82*60 |
76*60 |
70*70 |
|
Cua Pipe Diameter (mm) |
25 |
19 |
25 |
25 |
19 |
|
Qhov ntev (mm) |
22*108 |
22*108 |
22*108 |
22*108 |
22*108 |
|
Drilling qhov tob (m) |
5 |
5 |
5 |
5 |
5 |
|
Ntsis Diameter (mm) |
34-42 |
34-45 |
34-45 |
34-42 |
34-42 |
Product Detail
- Hom Lub Npe: D miningwell
- Yam tsawg kawg nkaus Order Quantity: 1 set

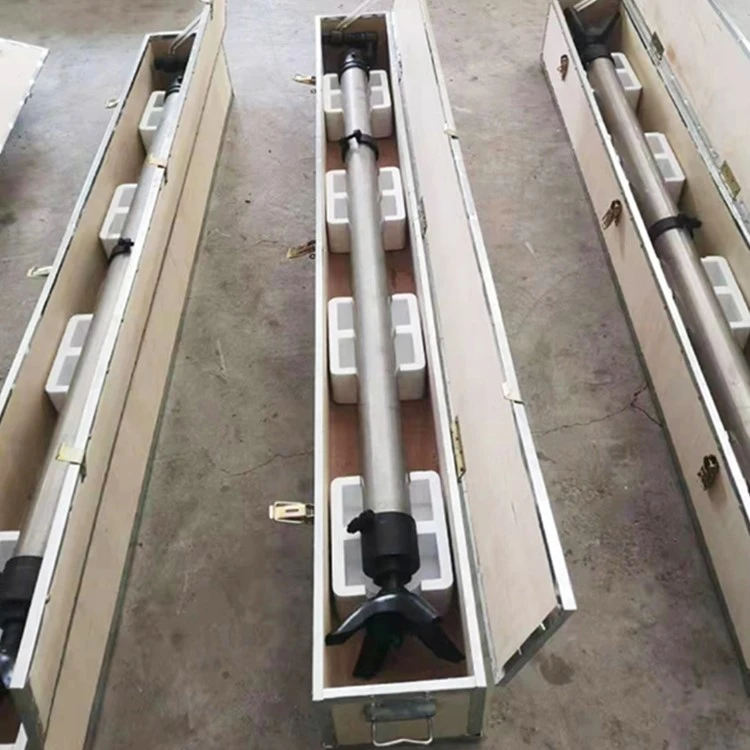

- Ntim Cov Lus Qhia: Txheem Export Packing
- Lub sij hawm xa tuaj: 7-10 hnub
- Cov nqe lus them nqi: L / C, T / T, Western Union
Cua pob zeb laum yog cov khoom siv pob zeb drilling nrog lub zog muaj zog, thiab kev siv cua qis dua. Nws yog dav haum rau underground mine, railway tsheb, kev txuag dej thiab lwm yam.
Nta
- 1). Muaj zog cuam tshuam lub zog
- 2). Kev txuag hluav taws xob thiab kev ua haujlwm siab
- 3). ntub dej drilling
- 4). Yooj yim rau kev khiav lag luam
- 5). Tsawg suab nrov
- 6). Tsawg vibration
- 7). Kev yuav khoom yooj yim ntawm cov khoom seem
- 8). Yooj yim ntxuav ntawm huab cua / dej qhov
Peb Qhov Zoo
Kev paub ntau lawm ntau lawm:D Miningwell tau ua tus thawj coj ntawm cov khoom siv mining nrog kev paub txog 20 xyoo.
b. Ua kom tiav cov chaw tsim khoom: MININGWELL muaj nws tus kheej drilling rig, DTH rauj, thiab tho yeeb nkab ntau lawm rhiav. Peb cov kws tshaj lij yuav ua haujlwm tu ncua ntawm cov tshuab no kom ntseeg tau tias lawv ua haujlwm zoo.
Kev Tswj Xyuas Zoo:Miningwell muaj cov txheej txheem QC ua tiav, los xyuas kom meej tias cov khoom lag luam ua raws li cov lus qhia tshwj xeeb, thiab cov khoom tsis raug puas tsuaj. Txhua yam khoom siv thiab cov cuab yeej drilling los ntawm Miningwell yuav raug kuaj xyuas lub Hoobkas nruj. Kev kuaj xyuas kev nyab xeeb: txhawm rau xyuas kom muaj kev nyab xeeb ntawm cov khoom hauv lub thawv.
One-Stop Procurement Service:Los ntawm cov pob zeb hauv av hauv av mus rau qhov qhib-qhov DTH pob zeb drilling mus rau qhov tob tob tob, MININGWELL cov saw hlau npog tag nrho cov khoom siv pob zeb drilling zoo nyob hauv Suav teb thiab tuaj yeem muab kev pabcuam ib zaug rau cov tuam txhab pob zeb thoob ntiaj teb.
Qhov zoo tshaj plaws kev pab cuam tom qab muag:D Miningwell lub hauv paus ntsiab lus yog los muab cov neeg siv khoom nrog ob qho tib si kev ua haujlwm zoo tshaj plaws thiab cov nqi zoo drilling daws. 22 qhov chaw pabcuam txawv teb chaws lav koj qhov kev pabcuam tomqab muag.
Peb Keeb Kwm
Reform ntawm shareholding koom tes system thiab tsim ntawm Quxian Technology Mechanical Experiment Factory.
Tsiv mus rau Gaotang Road Science thiab Technology Park hauv Qujiang thiab tau dhau los ua thawj pawg ntawm cov tuam txhab tsim khoom siv high-tech los nyob hauv lub tiaj ua si high-tech.
Hloov lub Hoobkas lub npe rau Quzhou Miningwell Machinery Factory los muab cov khoom siv rau cov chaw ua haujlwm ib puag ncig drilling rig.
Cov khoom lag luam pedigree thiab pib ua lag luam muag khoom, nthuav ob kab ntau lawm rau cov kav dej thiab DTH rauj.
Tsim Zhejiang Miningwell Supply Chain Management Co., Ltd thiab pib txoj kev lag luam txawv teb chaws.
Pib tshawb nrhiav kev ywj pheej thiab kev tsim kho thiab tsim tawm HT series qhib-dej DTH xyaum rigs.
Shipping & Them Nyiaj
Peb txoj kev them nyiaj: credit card, L / C, T / T, Western Union, thiab peb txhawb nqa shipping los ntawm huab cua thiab hiav txwv.
