Specifications
|
Technical Parameters |
MW 260 |
|
Dimension |
4100 * 1950 * 2600 hli |
|
Lub qhov taub |
140-305 hli |
|
Drilling qhov tob |
260m |
|
Ib zaug ua ntej ntev |
3m |
|
Taug kev ceev |
2.5 km / h |
|
Nce toj kaum |
30 degree |
|
Hwj chim |
lwj 73kW |
|
Siv cua siab |
1. 7-3 0MPA |
|
Kev siv cua |
17-31m³/min |
|
Drill yeeb nkab ntev |
1.5/2/3m |
|
Drill yeeb nkab txoj kab uas hla |
76mm, 89 ib |
|
Rig lifting quab yuam |
15T |
|
Swing ceev |
45-70rpm |
|
Swing torque |
4000-5300N.m |
Khoom nthuav dav
- Lub npe: miningwell
- Ntawv pov thawj: CE, ISO
- Yam tsawg kawg nkaus kom muaj nuj nqis: 1set
- Pob Paub meej: 40HQ-20GP
- Lub sij hawm xa tuaj: 15-20 hnub
- Cov nqe lus them nqi: L / C, T / T, Western Union

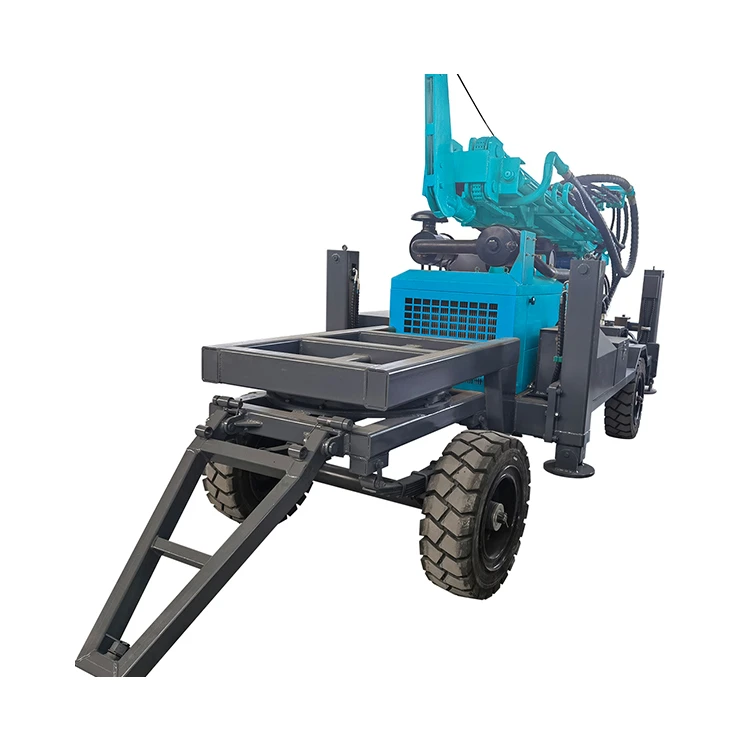

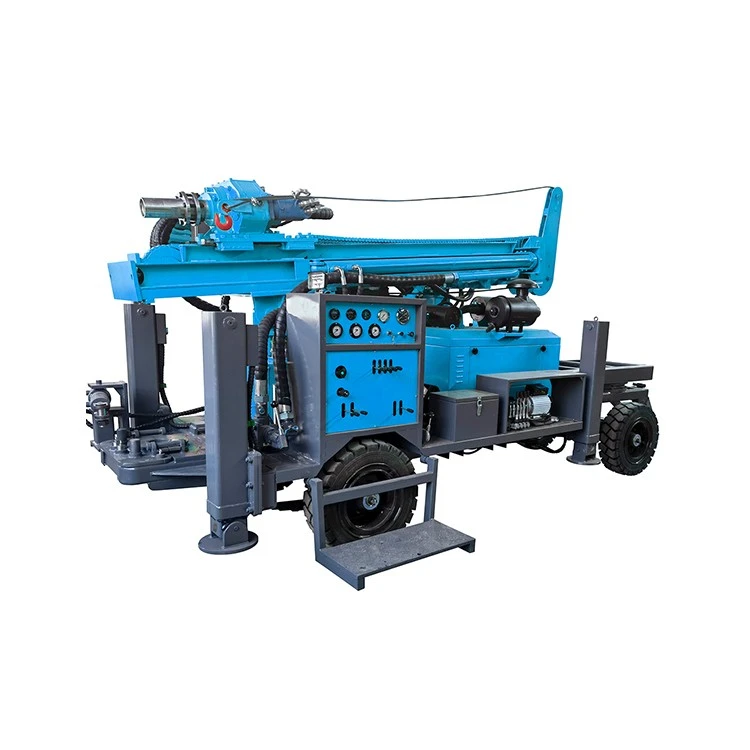

MWL260 txoj kev dej zoo drilling yog lub teeb yuag, siv tau zoo thiab ntau lub hom phiaj drilling uas tuaj yeem tig rau percussion drilling siv cua, ua npuas ncauj lossis av nkos nyob ntawm qhov sib txawv. Nws yog dav siv nyob rau hauv industrial thiab ua liaj ua teb dej txuag tej yaam num, xws li drilling qhov, kuaj qhov dej los yog lwm yam kev tshawb nrhiav boreholes, tshwj xeeb tshaj yog thaum drilling geothermal cua sov qhov, thiab nws kuj muaj peev xwm ua tau raws li lub hauv paus engineering reinforcement, xoob gravel drilling nrog ntau yam engineering xav tau. rau kev sib txuas pob zeb formations.
Shipping & Them Nyiaj
Txhua daim ntawm Miningwell cov cuab yeej thiab cov khoom siv drilling tau dhau los ua kev kuaj xyuas kev nyab xeeb kom ruaj ntseg ntawm cov khoom thauj hauv lub thawv.
Peb txoj kev them nyiaj: credit card, L / C, T / T, Western Union, thiab peb txhawb nqa shipping los ntawm huab cua thiab hiav txwv.
