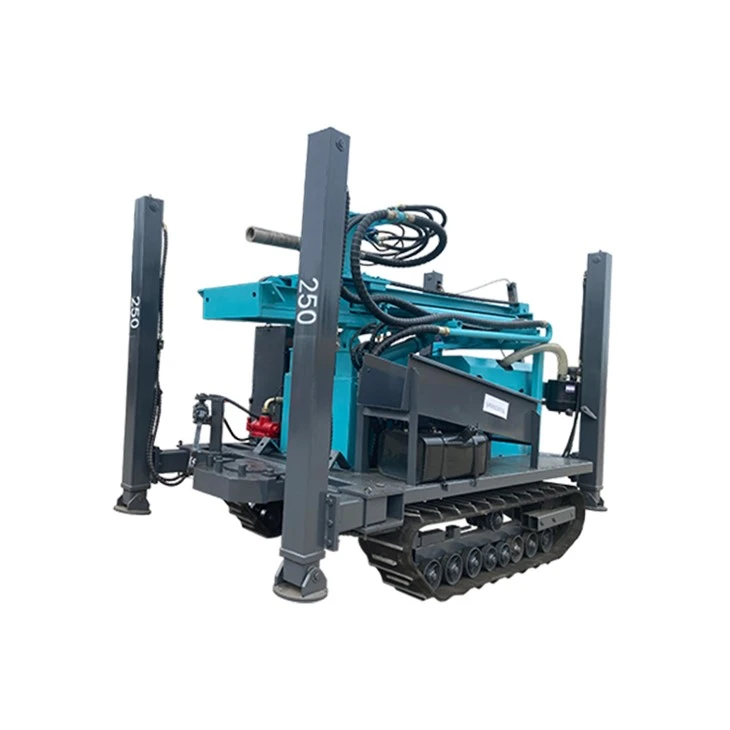

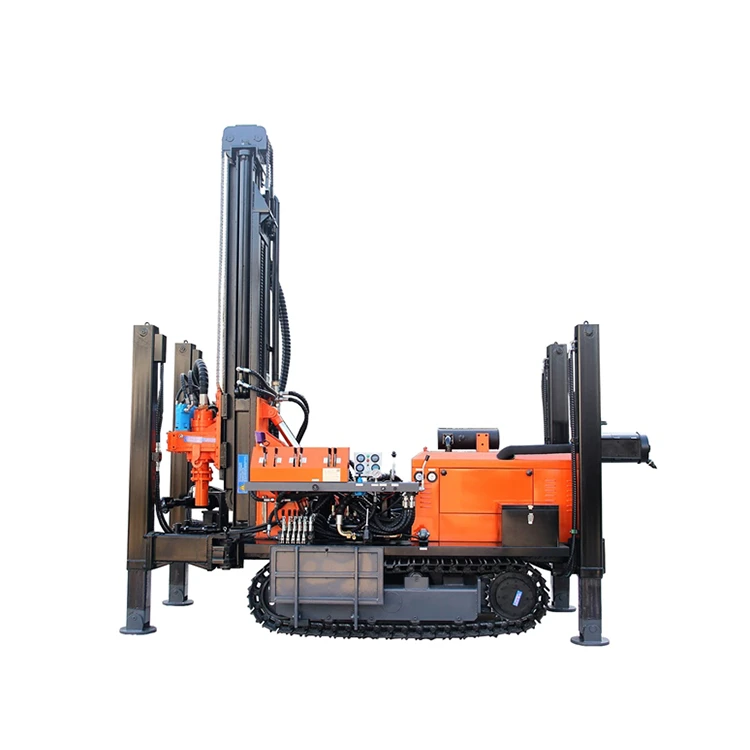

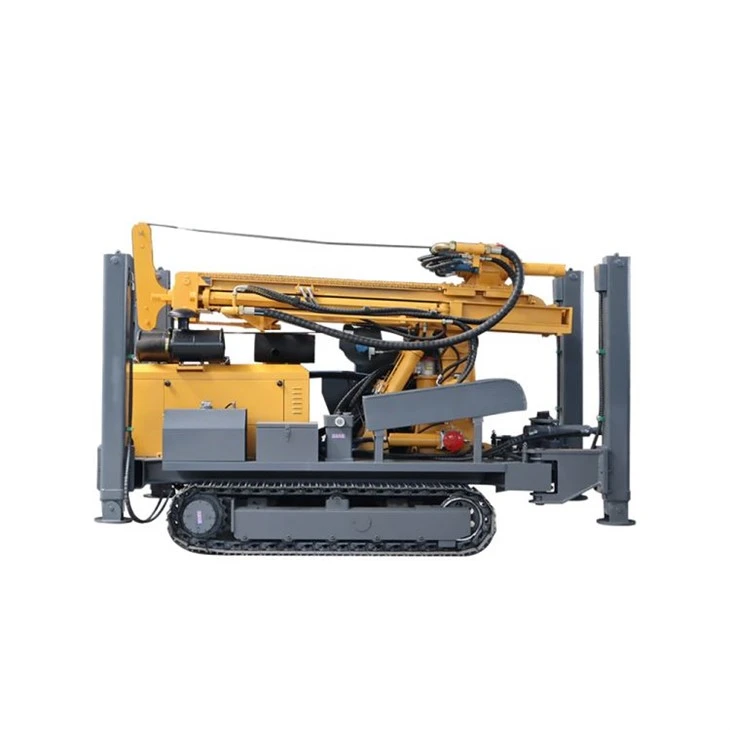

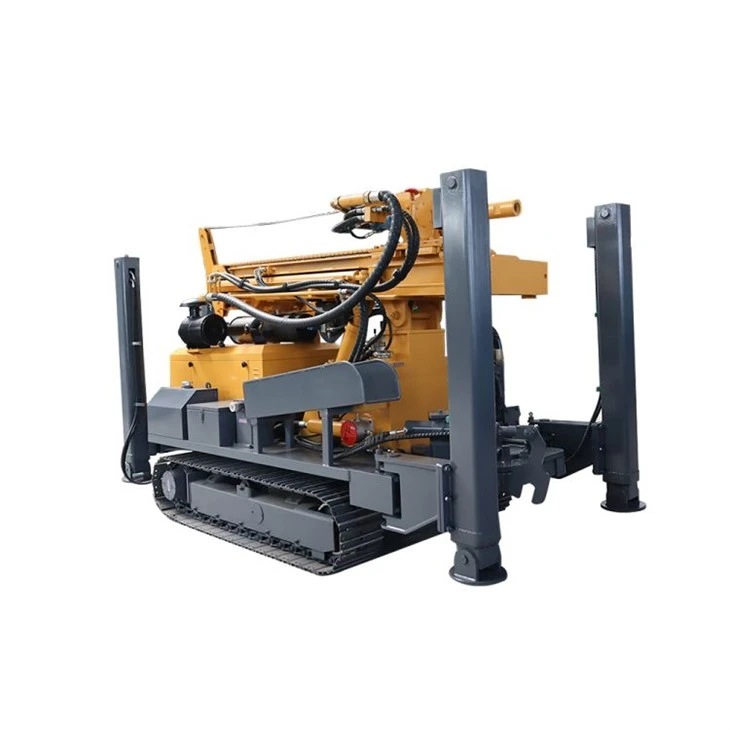

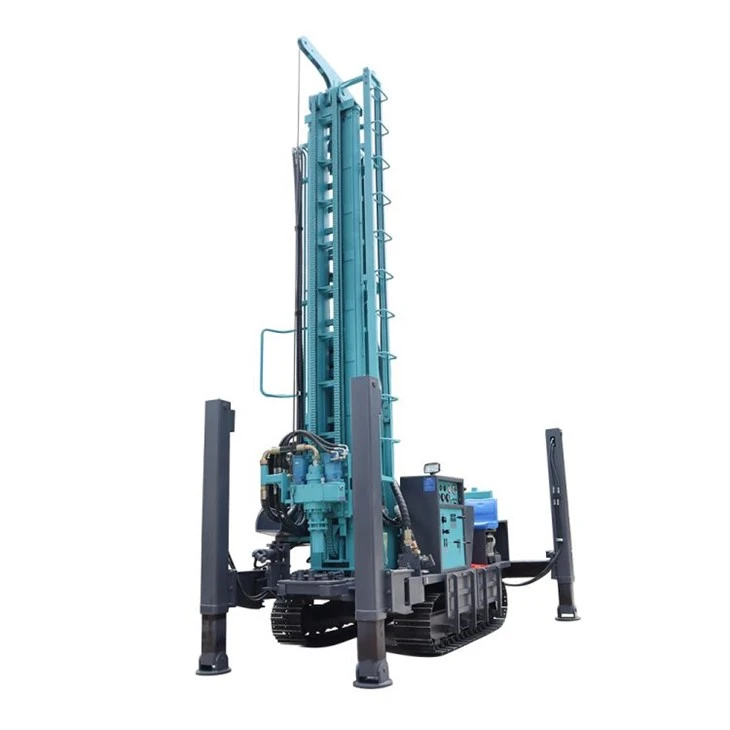

Multifunctional Crawler Dej Drilling Equipment

Multifunctional Crawler Dej Drilling Equipment

Multi-functional crawler dej zoo drilling rig yog ib hom tshiab, kev ua haujlwm siab, txuag hluav taws xob, ntau lub luag haujlwm hydraulic drilling rig, tshwj xeeb yog siv rau drilling qhov dej, saib xyuas qhov dej, geothermal cua txias qhov, hydropower cofferdam grouting qhov, dyke anti -seepage grouting qhov thiab lub hauv paus reinforcement grouting qhov, qhib-qhov mining, anchoring, teb chaws tiv thaiv tej yaam num, thiab lwm yam .; lub rig yog nruab nrog lub zog siab hydraulic lub cev muaj zog tig, lub tog raj kheej ua ntej thiab nqa, thiab lub siab ua haujlwm siab-siab downhole impactor, uas paub txog kev ua haujlwm siab drilling thiab qis zog noj.

Xa kev nug

Ces

Hauj lwm lawm

Specifications

Technical Parameters	MW -180	MW -250	MW -280	MW -300
Qhov tob tob (m)	180	250	280	300
Txoj kab uas hla (mm)	140-254	140-254	140-305	140-325
Nruab Cav	TSI 65 kW	TSI 70 kW	TSI 75 kW	TSI 85 kW
Drill yeeb nkab txoj kab uas hla (mm)	φ76 φ89	φ76 φ89	φ76 φ89	φ76 φ89 φ102
Drill yeeb nkab ntev (m)	1.5/2.0/3.0	1.5/2.0/3.0	1.5/2.0/3.0/6.0	1.5/2.0/3.0
Swing ceev (rpm)	45-70	45-70	40-70	40-70
Lub zog torque (Nm)	3200-4600	3300-4500	4500-6000	5700-7500
Rig lifting quab yuam (T)	12	14	17	18
Qhov hnyav (T)	5.2	4.1	7.6	7.2
Qhov Loj (mm)	400016302250	400018002400	590018502360	410020002500

Qauv	MW -400	MW -500	MW -680	MW -800
Qhov tob tob (m)	400	500	680	800
Txoj kab uas hla (mm)	140-350	140-350	140-400	140-400
Nruab Cav	TSI 103 kW	TSI 118 kW	Cummins 154 kW	Cummins 194 kW
Drill yeeb nkab txoj kab uas hla (mm)	φ89 φ102	φ102 φ108 φ114	φ102 φ108 φ114	φ102 φ108 φ114
Drill yeeb nkab ntev (m)	1.5/2.0/3.0/6.0	1.5/2.0/3.0/6.0	1.5/2.0/3.0/6.0	1.5/2.0/3.0/6.0
Swing ceev (rpm)	50-135	40-130	45-140	45-140
Lub zog torque (Nm)	7000-9500	7500-10000	8850-13150	9000-14000
Rig lifting quab yuam (T)	25	26	30	36
Qhov hnyav (T)	9.4	11.5	13	13.5
Qhov Loj (mm)	595021002600	620022002650	630023002650	630023002950

Khoom nthuav dav

Hom Lub Npe: D miningwell
Ntawv pov thawj: CE, ISO
Yam tsawg kawg nkaus Order Quantity: 1 set
Ntim Cov Lus Qhia: 40HQ-20GP
Lub sij hawm xa tuaj: 15-20 hnub
Cov nqe lus them nqi: L / C, T / T, Western Union

1) Sab saum toj tsav rotary drilling: yooj yim rau nruab thiab tshem tawm cov yeeb nkab laum, ua kom lub sijhawm ua haujlwm luv thiab ua kom nrawm dua los ntawm kev drilling.

2) Multi-functional drilling: Lub rig tuaj yeem siv rau ntau yam txheej txheem drilling, xws li: nqes qhov drilling, av nkos drilling, cov menyuam lub khob hliav qab drilling, ua raws li qhov drilling thiab cov tub ntxhais drilling uas tab tom tsim. Qhov drilling rig no tuaj yeem ntsia tau nrog av nkos twj tso kua mis, lub tshuab hluav taws xob, welder thiab cutter raws li cov neeg siv khoom xav tau. Nws kuj los txheem nrog ntau yam ntawm winches.

3) Crawler taug kev: multi-axis steering tswj, ntau lub kauj txoj kev, hloov tau yooj yim, lub vojvoog tig me me, muaj peev xwm hla dhau

4) Kev khiav hauj lwm qhov system: lub sab hauv intensive kev lag luam platform tsim yuav siv sij hawm ergonomics rau hauv kev xav thiab yooj yim rau kev khiav lag luam.

5) Lub taub hau fais fab: tag nrho hydraulic sab saum toj tsav lub zog lub taub hau, cov zis kawg yog nruab nrog cov cuab yeej ntab, uas ua rau txo qhov hnav thiab tsim kua muag ntawm laum yeeb nkab threads.

Qhov zoo

Crawler hom dej zoo drilling rig zoo:

Cav: txais lub npe nrov Guangxi Yuchai 55Kw turbo version
Crawler tsav: tsim lub cev muaj zog nrog gearbox kom ntev kev pab cuam lub neej
Hydraulic roj twj tso kua mis: txais kev sib txuas gearbox (patent) los cais cov roj twj tso kua mis monobloc, muaj lub zog txaus thiab tsim nyog tis, thiab hydraulic system txais kev tsim tshwj xeeb, uas yooj yim los tswj thiab txo tus nqi txij nkawm.
Rotary lub taub hau chav tsev: ib tug casting gearbox, dual lub cev muaj zog lub zog, siab torque, ruaj, me me nqi tu
Drilling rig chassis: kev excavator chassis, ruaj, muaj zog bearing peev xwm, dav cov menyuam saw phaj ntawm cov pob zeb txoj kev puas tsuaj me me
Lifting zog: patented tsim ntawm composite caj npab, me me, ntev stroke, ob lub tog raj kheej lifting, muaj zog lifting muaj peev xwm. Lub caj npab nqa tau nruab nrog lub limiter los tiv thaiv lub tog raj kheej thiab ua kom muaj kev nyab xeeb ntawm kev ua haujlwm. Txhua hydraulic roj yeeb nkab siv lub plhaub tiv thaiv, ua kom lub neej ntev ntawm cov kav dej.

Daim ntawv thov

D Miningwell ua haujlwm ze nrog cov neeg koom tes los muab cov kev daws teeb meem yooj yim raws li cov neeg siv khoom xav tau. Peb cov neeg koom tes nrog cov tswv yim muaj pab pawg engineers thiab cov kws pab tswv yim nrog ntau xyoo ntawm kev paub hauv cov roj thiab roj, choj infrastructure, tunneling, mining thiab lwm yam kev lag luam.

Shipping & Them Nyiaj

Txhua daim ntawm Miningwell cov cuab yeej thiab cov khoom siv drilling tau dhau los ua kev kuaj xyuas kev nyab xeeb kom ruaj ntseg ntawm cov khoom thauj hauv lub thawv.

Peb txoj kev them nyiaj: credit card, L / C, T / T, Western Union, thiab peb txhawb nqa shipping los ntawm huab cua thiab hiav txwv.
