Specifications
|
Technical Parameters |
MW -180 |
MW -200 |
MW -280 |
MW -300 |
|
Qhov tob tob (m) |
180 |
200 |
280 |
300 |
|
Txoj kab uas hla (mm) |
140-254 |
140-305 |
140-305 |
140-325 |
|
Nruab Cav |
TSI 65 kW |
TSI 70 kW |
TSI 75 kW |
TSI 85 kW |
|
Drill yeeb nkab txoj kab uas hla (mm) |
φ76 φ89 |
φ76 φ89 |
φ76 φ89 |
φ76 φ89 φ102 |
|
Drill yeeb nkab ntev (m) |
1.5/2.0/3.0 |
1.5/2.0/3.0 |
1.5/2.0/3.0/6.0 |
1.5/2.0/3.0 |
|
Swing ceev (rpm) |
45-70 |
45-70 |
40-70 |
40-70 |
|
Lub zog torque (Nm) |
3200-4600 |
4000-5300 |
4500-6000 |
5700-7500 |
|
Rig lifting quab yuam (T) |
12 |
15 |
17 |
18 |
|
Qhov hnyav (T) |
5.2 |
6.5 |
7.6 |
7.2 |
|
Qhov Loj (mm) |
4000*1630*2250 |
4000*1850*2300 |
5900*1850*2360 |
4100*2000*2500 |
|
|
||||
|
Qauv |
MW -400 |
MW -500 |
MW -680 |
MW -800 |
|
Qhov tob tob (m) |
400 |
500 |
680 |
800 |
|
Txoj kab uas hla (mm) |
140-350 |
140-350 |
140-400 |
140-400 |
|
Nruab Cav |
TSI 103 kW |
TSI 118 kW |
Cummins 154 kW |
Cummins 194 kW |
|
Drill yeeb nkab txoj kab uas hla (mm) |
φ89 φ102 |
φ102 φ108 φ114 |
φ102 φ108 φ114 |
φ102 φ108 φ114 |
|
Drill yeeb nkab ntev (m) |
1.5/2.0/3.0/6.0 |
1.5/2.0/3.0/6.0 |
1.5/2.0/3.0/6.0 |
1.5/2.0/3.0/6.0 |
|
Swing ceev (rpm) |
50-135 |
40-130 |
45-140 |
45-140 |
|
Lub zog torque (Nm) |
7000-9500 |
7500-10000 |
8850-13150 |
9000-14000 |
|
Rig lifting quab yuam (T) |
25 |
26 |
30 |
36 |
|
Qhov hnyav (T) |
9.4 |
11.5 |
13 |
13.5 |
|
Qhov Loj (mm) |
5950*2100*2600 |
6200*2200*2650 |
6300*2300*2650 |
6300*2300*2950 |
Khoom nthuav dav
- Lub npe: miningwell
- Ntawv pov thawj: CE, ISO
- Yam tsawg kawg nkaus kom muaj nuj nqis: 1set
- Pob Paub meej: 40HQ-20GP
- Lub sij hawm xa tuaj: 15-20 hnub
- Cov nqe lus them nqi: L / C, T / T, Western Union

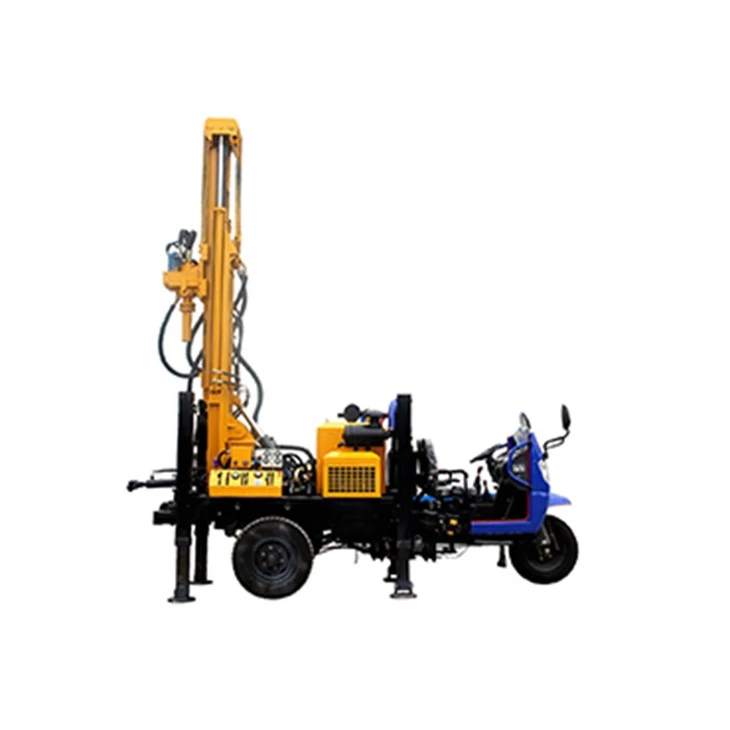

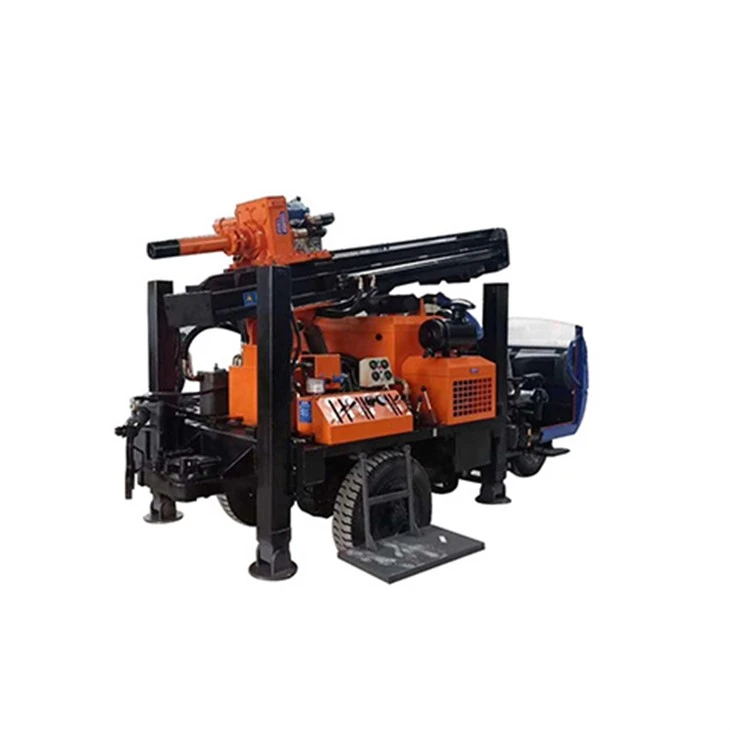

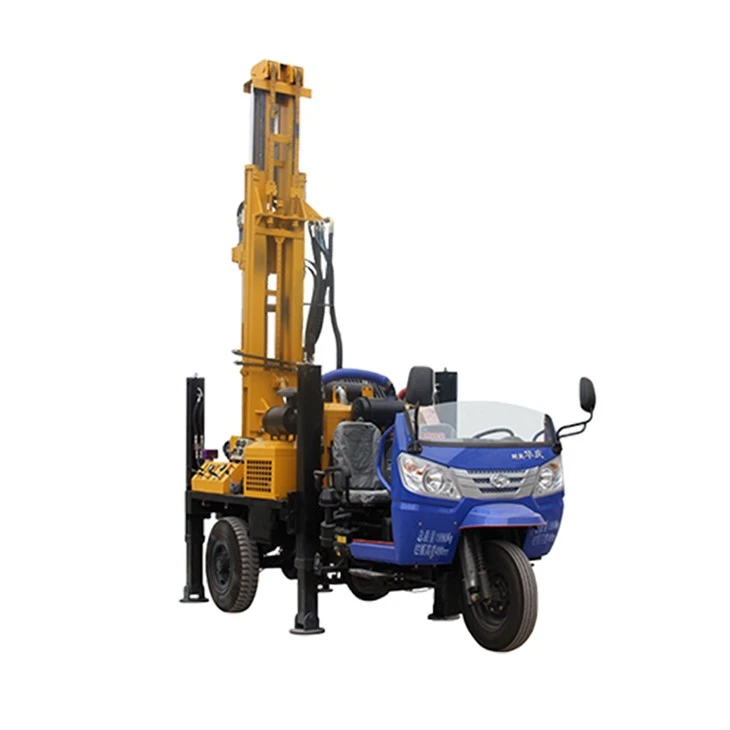

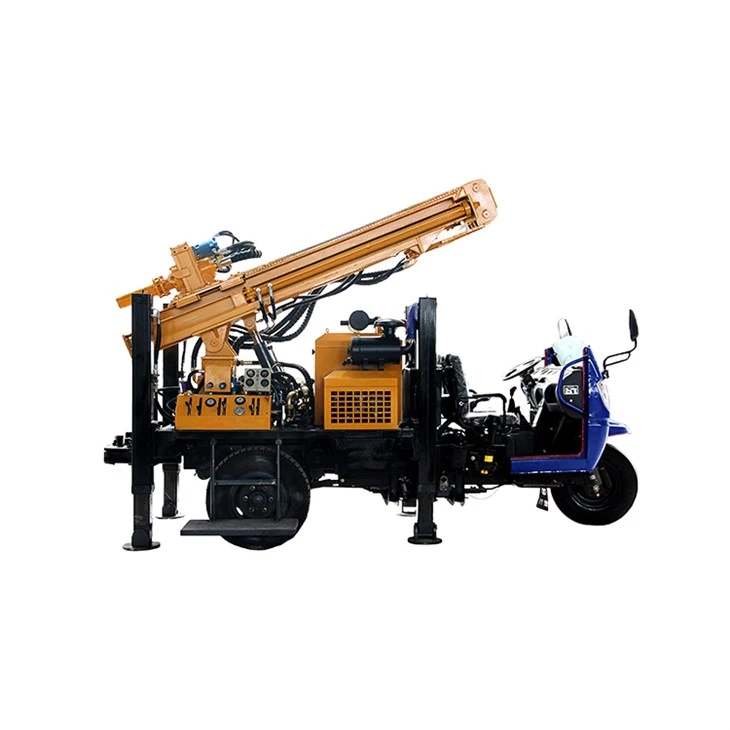

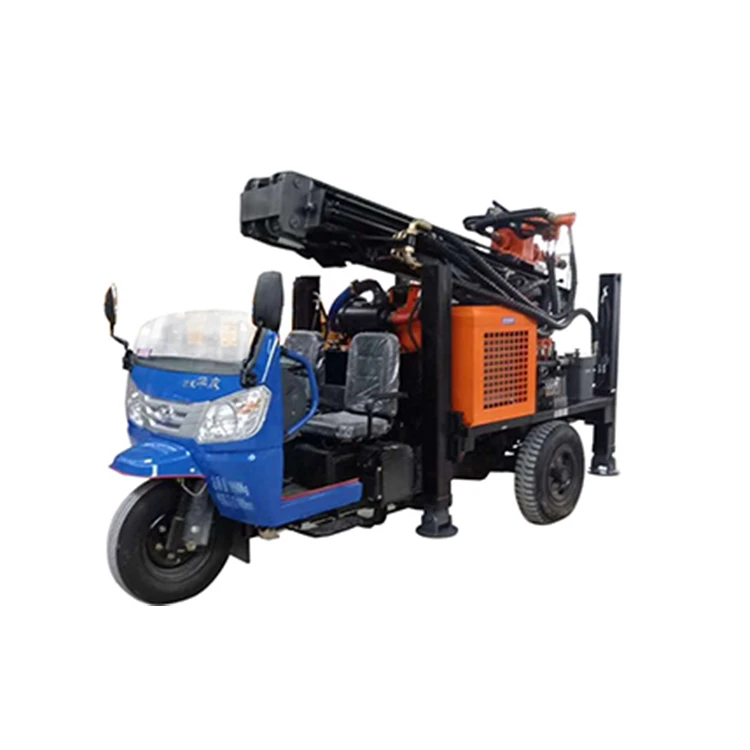

MWL200B series tsheb drilling dej qhov dej tau txais tag nrho cov hydraulic tswj, sab saum toj tsav tsav kev sib hloov ntawm cov cuab yeej drilling, thiab cov drilling efficiency siab heev.
Cov txheej txheem tag nrho yog tsim nyog, thiab nws siv lub tsheb laij teb mounting lossis tag nrho hauv av chassis kev thauj mus los nrog kev txav mus los zoo.
Nws muaj zog yoog raws txoj kev nyuaj, thiab tuaj yeem siv dav hauv cov dej hauv dej, coal txaj methane, ntiav shale gas, geothermal thiab lwm yam kev tshawb nrhiav chaw, thiab tseem tuaj yeem siv rau hauv cov thee mine gas mining cawm haujlwm.
Sab saum toj-mounted hwj chim lub taub hau muaj ib tug loj spindle txoj kab uas hla, uas yuav tsum tau yoog mus rau ntau yam kev tsim kho, xws li av nkos drilling, huab cua drilling, huab cua ua npuas ncauj drilling, thiab lwm yam.
Peb qhov kev pabcuam
1) Kev Tswj Xyuas Zoo los ntawm tag nrho cov txheej txheem tsim khoom;
2) Muab cov qauv tsim thiab kev daws teeb meem;
3) Tag nrho cov lus nug yuav teb rau hauv 24 teev;
4) Tele-technical kev sab laj thiab kev pabcuam;
5) Lwm cov kev pabcuam tshwj xeeb raws li tus neeg siv khoom xav tau;
6) Ntau lwm Cov Qauv rau koj xaiv thiab peb tuaj yeem txais qhov kev txiav txim yam tsawg kawg nkaus. Koj qhov kev txaus siab tuaj yeem lav tag nrho.
Shipping & Them Nyiaj
Txhua daim ntawm Miningwell cov cuab yeej thiab cov khoom siv drilling tau dhau los ua kev kuaj xyuas kev nyab xeeb kom ruaj ntseg ntawm cov khoom thauj hauv lub thawv.
Peb txoj kev them nyiaj: credit card, L / C, T / T, Western Union, thiab peb txhawb nqa shipping los ntawm huab cua thiab hiav txwv.
