Specifications
|
Technical Parameters |
Specification ntawm Drill Pipe (mm) |
Drilling qhov tob (m) |
|
|
Domestic laum yeeb nkab |
Sab hauv thickening hom |
42 |
1400 |
|
50 |
1000 |
||
|
60 |
830 |
||
|
Txoj hlua coring |
55.5 |
1250 |
|
|
71 |
1000 |
||
|
89 |
800 |
||
|
DCDMA laum yeeb nkab |
BQ laum tube |
1300 |
|
|
NQ Drill Pipe |
1000 |
||
|
HQ laum tube |
750 |
||
|
PQ laum tube |
420 |
||
|
Sab nraum thickening hom |
60 |
800 |
|
|
73 |
500 |
||
|
89 |
300 |
||
|
Drill Angle |
0 degree -360 degree |
||
|
Cav |
Qauv |
Hwj chim |
Ceev |
|
Lub cev muaj zog |
Y225S-4 |
37 kW |
1480 r / min |
|
Diesel cav |
TIAB SA 4110 |
8 1kW |
2800 r / min |
|
Gyrator |
|||
|
Hom: ob lub tog raj kheej hydraulic pub tshuab teb hom |
|||
|
Txoj kab uas hla ntawm ntsug |
f93mm ua |
||
|
ncej ntawm qhov |
|||
|
Vertical spindle ceev |
|||
|
Kev sib hloov mus rau pem hauv ntej (r / min) |
60/90/166/272/379/481/183/296/514/835/1164/1476 |
||
|
Rov qab ceev (r / min) |
63/198 |
||
|
Max. torque ntawm ntsug ncej |
8000N·m |
||
|
Vertical stroke |
600 hli |
||
|
Max. Lub ntiajteb txawj nqus ntawm ntsug axis |
125 KN |
||
|
Max. ntsug ncej siab |
90kn ua |
||
|
Hoist |
|||
|
Hom: Planetary iav tsav, kov nres |
|||
|
Hlau txoj kab uas hla |
φ18.5 hli |
||
|
Lub peev xwm ntawm lub nruas hlau hlua |
95m (qhov txhab xya txheej) |
||
|
Max. lifting quab yuam ntawm ib txoj hlua |
45 KN |
||
|
Hoisting ceev ntawm hlau hlua |
|||
|
Linear ceev ntawm nruas (m / s) |
0 7-2.68m/s (kaum kaum ob) |
||
|
Lub clutch |
|||
|
Hom: tsheb tshwj xeeb qhuav ib leeg disc txhuam clutch |
|||
|
(nrog 6T46 gearbox) |
|||
|
Qhov system hydraulic |
|||
|
Qhov system siab |
|||
|
Qhov ntsuas siab |
20 Mpa |
||
|
Qhov siab tshaj plaws |
25 Mpa |
||
|
Muaj peev xwm |
20 ml / r |
||
|
Khib seem |
|||
|
Hom: skid type (nrog zawv zawg puag) |
|||
|
Rig rov qab stroke |
4 60mm |
||
|
Qhov deb |
260 hli |
||
|
Qhov Loj (L * W * H) |
3550 * 2200 * 3100 hli |
||
|
Rig hnyav (Nrog lub cav fais fab) |
6 300kg |
||
Khoom nthuav dav
- Lub npe: miningwell
- Yam tsawg kawg nkaus kom muaj nuj nqis: 1set
- Ntim cov ntsiab lus: txheem export ntim
- Lub sij hawm xa tuaj: 15-20 hnub
- Cov nqe lus them nqi: L / C, T / T, Western Union
XY-44A Crawler rock core drilling cov yam ntxwv tseem ceeb
1. Nrog rau ntau qhov kev sib hloov ceev theem (12 rau pem hauv ntej thiab 2 thim rov qab) thiab tsim nyog kev sib hloov ceev ntau, qis-ceev torque (txog 8000N.m), nws tsis yog tsuas yog haum rau alloy thiab pob zeb diamond core drilling, tab sis kuj rau engineering geological tshawb nrhiav. , hydrological zoo drilling thiab foundation piling tsim.
2. Vertical ncej los ntawm-qhov taub (93mm), ob-lub tog raj kheej hydraulic pub, ntev stroke (mus txog 600mm), muaj zog txheej txheem adaptability, tshwj xeeb tshaj yog haum rau loj-inch laum yeeb nkab hlua coring (sab sauv coring) drilling, uas yog conducive rau txhim kho drilling efficiency.
3. Txais Tsinghua Wanliyang 6T46 kis tau tus mob, dav txuam nrog Foton, JAC, Kaima, Wuzheng thiab lwm yam tsheb qauv. Mature technology, ruaj khov zoo, muaj zog tshaj lub peev xwm, kev pab cuam tom qab muag thiab cov khoom siv thoob plaws lub tebchaws.
4. Hydraulic chuck yog disc caij nplooj ntoos hlav clamping, hydraulic lub tog raj kheej tso tawm, peb-kab noj hniav tsis siv neeg centering hydraulic chuck.
5.Qhov kev teeb tsa hydraulic suav nrog lub iav roj twj tso kua mis rau kev muab cov roj, ua kom muaj kev ncaj ncees, kev siv tau yooj yim, kev siv hluav taws xob tsawg, kev siv roj tsawg, thiab kev ua haujlwm zoo ib yam. Cov cuab yeej no los haum nrog lub twj tso kua mis roj; Yog tias lub cav tsis ua haujlwm, phau ntawv twj tso kua mis tseem siv tau rau kev rho tawm cov cuab yeej drilling rau hauv kab noj hniav.
6.Lub cav no tuaj yeem ua ke nrog FAW TIANCHAI 4110 (81 kW) ib txwm ua rau lub cav los yog Guangxi Yuchai 4110 (105 kW) turbocharged variant.

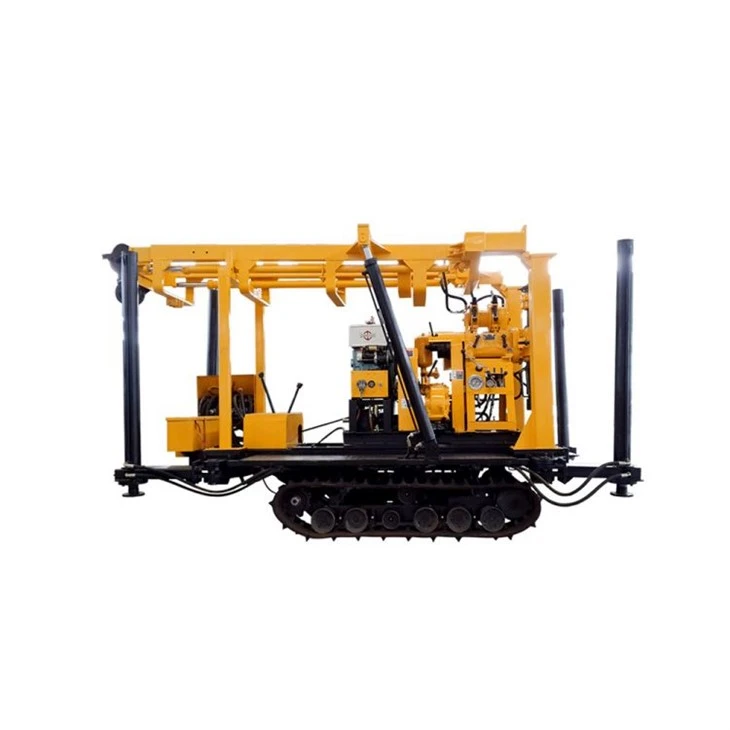

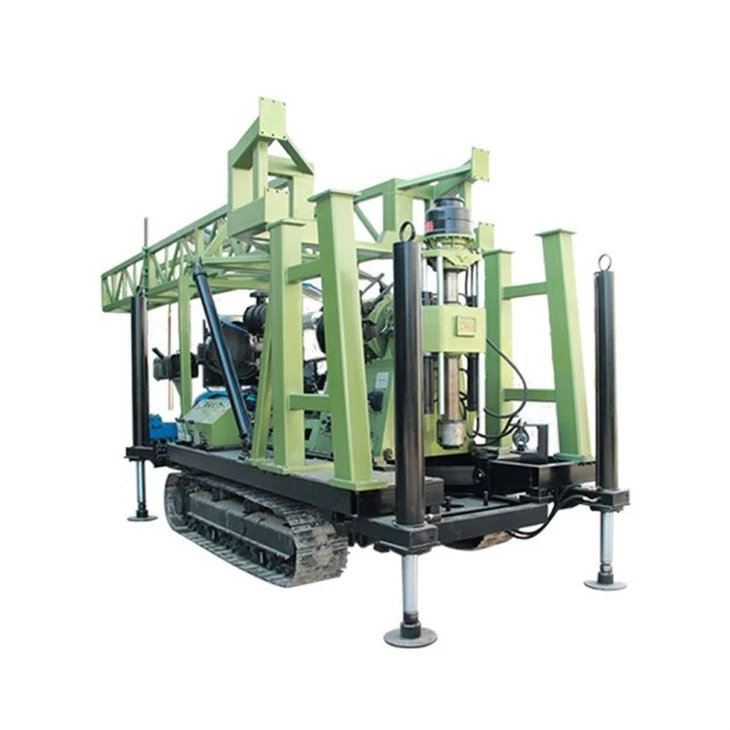

7. Lub crawler mounted drilling rig muaj qhov nruab nrab ntawm lub ntiajteb txawj nqus, qhov kev ncua ntev (460mm), ruaj khov kho, thiab ruaj khov siab ceev drilling.
8. Nruab nrog kev tiv thaiv kev vibration meter, uas yog qhov zoo rau kev tswj lub qhov taub. Tsawg loading thiab unloading kov, hloov tau yooj yim thauj.
9. Nws txais cov crawler chassis, thiab lub tog raj kheej outrigger stroke ntawm 1.5m tuaj yeem thauj khoom tau, uas yooj yim rau kev txav thiab kev thauj mus los.
Daim ntawv thov tseem ceeb
Feem ntau ua hauj lwm hauv kev lag luam xws li geology, metallurgy, thee, hydrology, thiab engineering, cov tub ntxhais drilling rigs kuj tsim nyog rau geological engineering, tshawb nrhiav cov roj thiab cov roj ntiav ntiav, cua tshuab mine tunnels, cov kav dej, drilling hydrological qhov dej, thiab tsim cov hauv paus loj.
Shipping & Them Nyiaj
Txhua daim ntawm Miningwell cov cuab yeej thiab cov khoom siv drilling tau dhau los ua kev kuaj xyuas kev nyab xeeb kom ruaj ntseg ntawm cov khoom thauj hauv lub thawv.
Peb txoj kev them nyiaj: credit card, L / C, T / T, Western Union, thiab peb txhawb nqa shipping los ntawm huab cua thiab hiav txwv.
