Specifications
|
Technical Parameters |
|||
|
Drill rod qeb |
Specification ntawm Drill Rod (mm) |
Qhov tob tob (m) |
|
|
Domestic Laum Pipe |
Thickenes nyob rau hauv lub laum yeeb nkab |
∅50X5.5 Drill pipe |
3000 |
|
∅60X6 Drill pipe |
2500 |
||
|
Cord laum yeeb nkab |
∅71X5 Drill pipe |
2200 |
|
|
∅89X5 Drill pipe |
2000 |
||
|
DCDMA Drill Pipe |
Thickened nyob rau hauv lub laum yeeb nkab |
BW Drill Pipe |
3000 |
|
NW Drill Pipe |
2500 |
||
|
HW Drill Pipe |
1800 |
||
|
Cord laum yeeb nkab |
BQ Laum Pipe (∅58) |
3000 |
|
|
NQ Drill Pipe (∅73) |
2500 |
||
|
HQ Laum Pipe (∅93) |
1800 |
||
|
Drill Angel |
0-360 degree |
||
|
Lub zog |
|||
|
Chav tsev hluav taws xob |
Y280S-4 |
75 KW TSI |
1480 r / min |
|
Diesel |
YC6A 240-33 |
177 kwv |
2300 r / min |
|
Rotator |
|||
|
Hom |
Pub nrog ob lub tog raj kheej roj hydraulic |
||
|
Spindle LD |
93mm ua |
||
|
Ceev |
|||
|
Lub zog ceev |
1480 r / min |
2300 r / min |
|
|
Kev nrawm nrawm |
74/106/150/208/300/431/609/845r/min |
110/157/222/309/445/640/905/1256r/min |
|
|
Rov qab ceev |
74r / min |
110r / min |
|
|
Max.torque ntawm spindle |
12500N.m |
||
|
Spindle stroke |
1000 hli |
||
|
Max.lifting quab yuam |
180 KN |
||
|
Max.thrust ntawm spindle |
110 KN |
||
|
Winch |
|||
|
Hlau hlua caliber |
21.5mm ib |
||
|
Roll capacity |
120m |
||
|
Ib txoj hlua siab tshaj plaws |
150 KN |
||
|
Lifting ceev ntawm lub wirerope |
|||
|
1480r/min Fais fab unit rotary ceev |
0.48/0.68/0.96/1.34/1.96/2.81/3.96/5.51m/s |
||
|
2300r / min Fais fab unit rotary ceev |
0.71/1.01/1.42/1.99/2.91/4.17/5.88/8.19m/s |
||
|
(CBF-F32/16) Roj twj tso kua mis |
|||
|
Ua hauj lwm siab |
20 Mpa |
||
|
Max.siab |
25 Mpa |
||
|
Dej nres |
|||
|
Ua hauj lwm rotary ceev |
700-1800r/min |
||
|
Ib txoj hlua them nyiaj ceev |
3-8m/s |
||
|
Ib txoj hlua them nyiaj load |
45 KN |
||
|
Skids hom drillfram |
|||
|
Rig rov qab stroke |
5 30mm |
||
|
Qhov Loj (L * W * H) |
3800 * 1500 * 2460mm |
||
|
Rig hnyav |
6 500kg |
||
Khoom nthuav dav
- Lub npe: miningwell
- Yam tsawg kawg nkaus kom muaj nuj nqis: 1set
- Ntim cov ntsiab lus: txheem export ntim
- Lub sij hawm xa tuaj: 15-20 hnub
- Cov nqe lus them nqi: L / C, T / T, Western Union

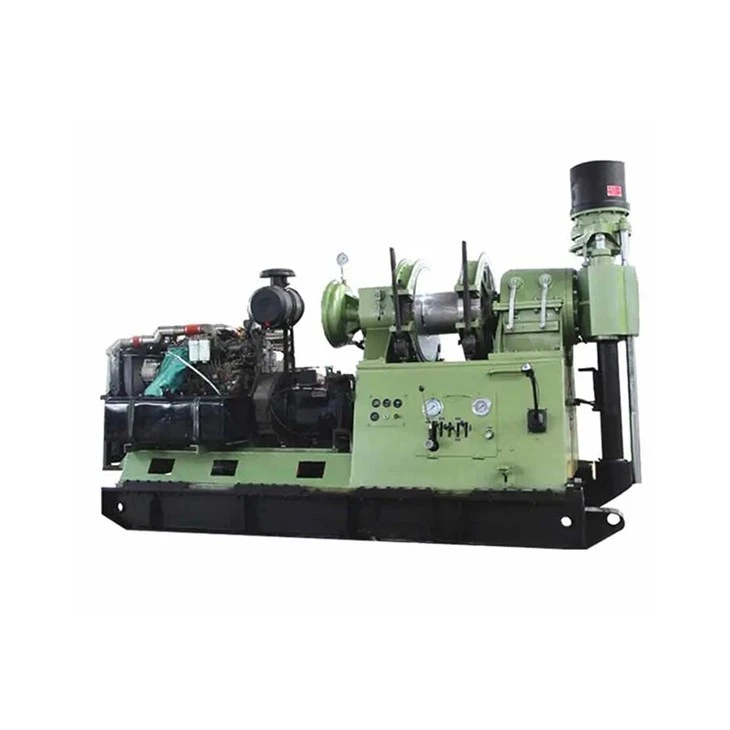

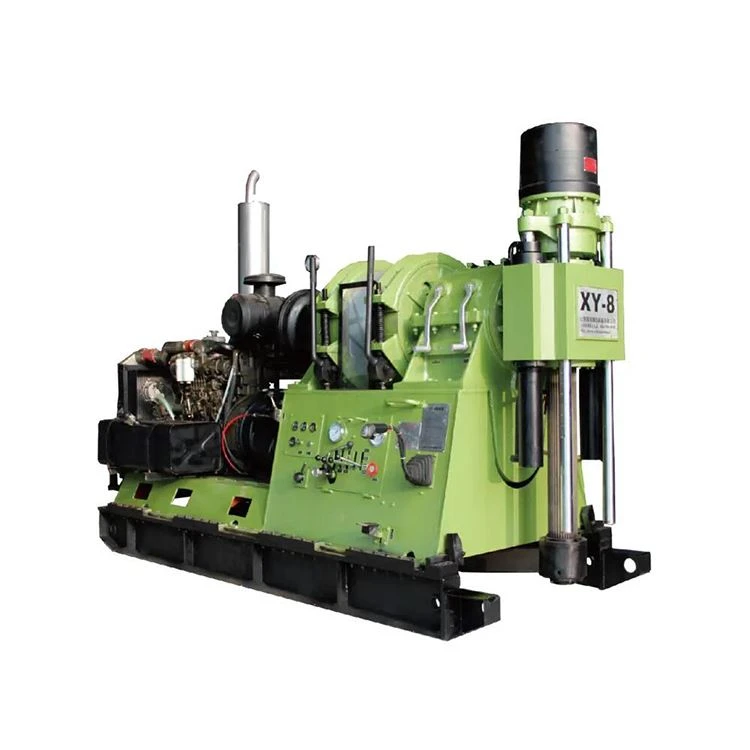

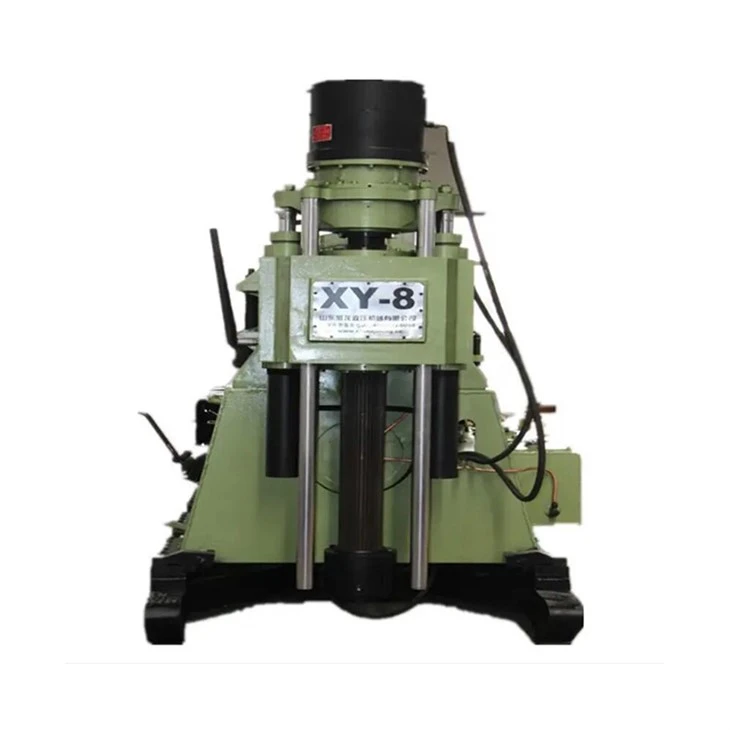

Lub hydraulic pob zeb diamond core drilling rig yog muaj ntau yam, zoo heev nyob rau hauv drilling cores ntawm txawv diameters siv feem ntau alloy thiab pob zeb diamond khoom. Nws tseem muaj txiaj ntsig zoo hauv kev tshawb nrhiav cov khoom siv hlau thiab cov hlau tsis muaj hlau, cov roj av ntiav thiab cov roj tso nyiaj, cov qhov dej kub hauv qhov dej, lub qhov cua qhov cua, cov kav dej, thiab kev tsim kho ntawm cov kab loj loj hauv paus. Cov khoom siv no tau siv dav hauv ntau yam lag luam xws li geology, metallurgy, thee, hydrology, dej qhov dej, thiab engineering.
Qhov zoo
1) Kev siv pneumatic ua haujlwm nrawm dua 8JS118 lub tsheb gearbox thiab clutch, nrog cov qauv tsim nyog thiab tsim nyog, kev ua haujlwm du, kev ua haujlwm ruaj khov thiab kev ua haujlwm zoo.
2) Kev siv lub tsheb tshwj xeeb hloov tau yooj yim ncej gearshift mechanism kom paub cov chaw taws teeb tswj ntawm gearshift, pneumatic gearshift yog lub teeb thiab agile, thiab kev ua haujlwm yog tib neeg.
3) Kev tswj ceev ceev, ntau lub zog tswj kev ceev (rau pem hauv ntej 8 qib, thim rov qab 1 qib), qis-ceev torque (txog 8000N.m).
4) Kev siv lub hauv paus tseem ceeb ntawm lub tshuab lubrication, tsuav yog cov khoom siv khiav, lub twj tso kua mis sib cais yuav pib siv cov roj, lubricant los ntawm cov roj sib cais kom ncav cuag cov nodes xav tau lubrication, roj hauv lubrication ntawm lub tshuab kis tau tus mob tib yam. lub sijhawm, tshem tawm cov cua sov sab hauv. (Lub lubrication system yog nruab nrog lub condenser cais) kom tsis txhob muaj cua sov ntawm qhov chaw ntawm kev kub ceev thiab siab load.
5) Nrog involute spline ntsug ncej es tsis txhob ntawm cov tsoos hexagonal ntsug ncej, thiaj li hais tias tus kis tau tus mob efficiency thiab load peev xwm ntawm lub rotator doubled. Ntxiv mus, cov ncej ntsug muaj qhov loj ntawm lub qhov taub (96mm), ob lub tog raj kheej hydraulic pub, ntev stroke (txog 1000mm), thiab cov txheej txheem muaj zog adaptability, uas yog tshwj xeeb tshaj yog haum rau loj-inch laum yeeb nkab hlua coring (sab sauv core. ) drilling. Nws yog qhov tsim nyog rau kev txhim kho drilling efficiency thiab txo cov xwm txheej hauv lub qhov.
6) Lub peev xwm loj drilling, txoj kab uas hla 71 hli hlau hlua core drilling pas ntsuas qhov tob ntawm 1650 meters.
7) Lub teeb yuag, zoo detachability, net hnyav ntawm geological core drilling rig yog 6500Kg.
8) Nws siv cov kua-tswj ib txwm kaw hydraulic chuck nrog cov qauv tshiab, kev them nyiaj zoo, carbide welded chuck qauv, siab clamping quab yuam, ntev kev pab cuam lub neej thiab txhim khu kev qha ua hauj lwm.
9) Nruab nrog dej nres, thaum drilling qhov tob, qhov drilling yog du thiab nyab xeeb.
10) Kev siv lub twj tso kua mis iav los muab cov roj, kev siv hluav taws xob tsawg, roj kub ntawm hydraulic system, ruaj khov ua haujlwm. Lub kaw lus tau nruab nrog lub twj tso kua mis roj ua haujlwm, uas tuaj yeem siv los nqa lub cuab yeej drilling kom deb ntawm qhov hauv qab ntawm lub qhov thaum lub tshuab fais fab tsis tuaj yeem ua haujlwm, kom tsis txhob faus qhov sib tsoo drilling.
11) Advanced thiab compact qauv, tsim nyog layout, exposed qhov chaw, tsis muaj sib tshooj, yooj yim rau tu, kho thiab tu.
12) Lub hydraulic pob zeb diamond core drilling rig muaj qhov nruab nrab ntawm lub ntiajteb txawj nqus, qhov ntev mus txog (txog 530), kev kho yooj yim thiab ruaj khov, thiab kev ruaj ntseg zoo rau kev kub ceev drilling.
13) Nruab nrog lub ntsuas hluav taws xob tiv thaiv kev vibration, uas yuav pab tau los tuav qhov xwm txheej hauv lub qhov. Lub drilling rig muaj ob peb txoj haujlwm ua haujlwm, tsim nyog layout, yoog raws thiab txhim khu kev qha.
Shipping & Them Nyiaj
Txhua daim ntawm Miningwell cov cuab yeej thiab cov khoom siv drilling tau dhau los ua kev kuaj xyuas kev nyab xeeb kom ruaj ntseg ntawm cov khoom thauj hauv lub thawv.
Peb txoj kev them nyiaj: credit card, L / C, T / T, Western Union, thiab peb txhawb nqa shipping los ntawm huab cua thiab hiav txwv.
