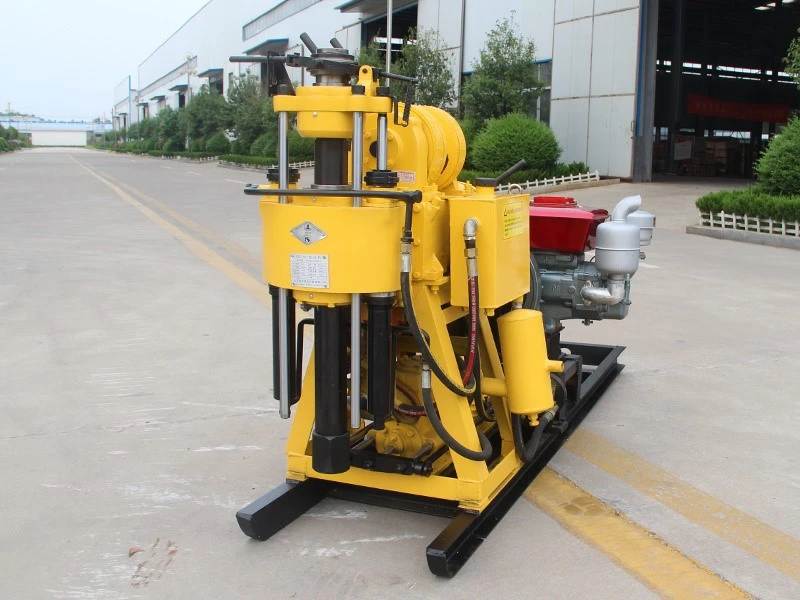

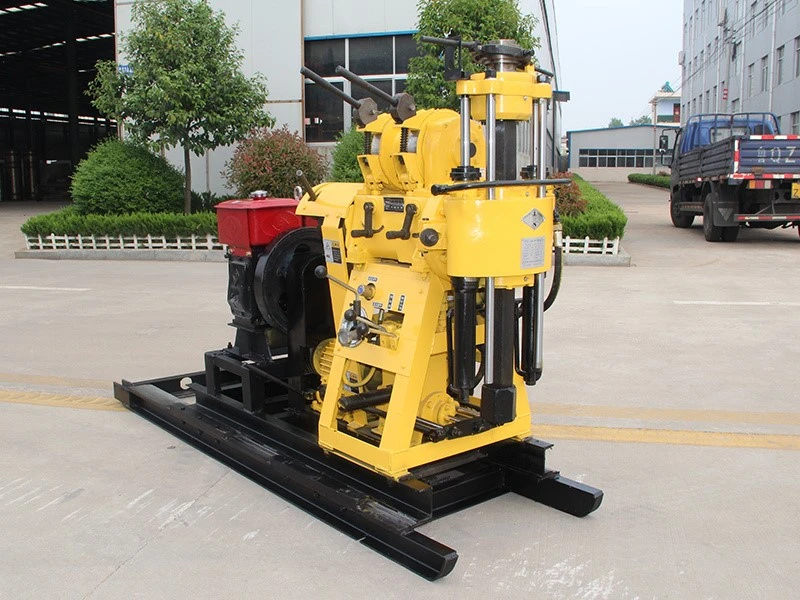

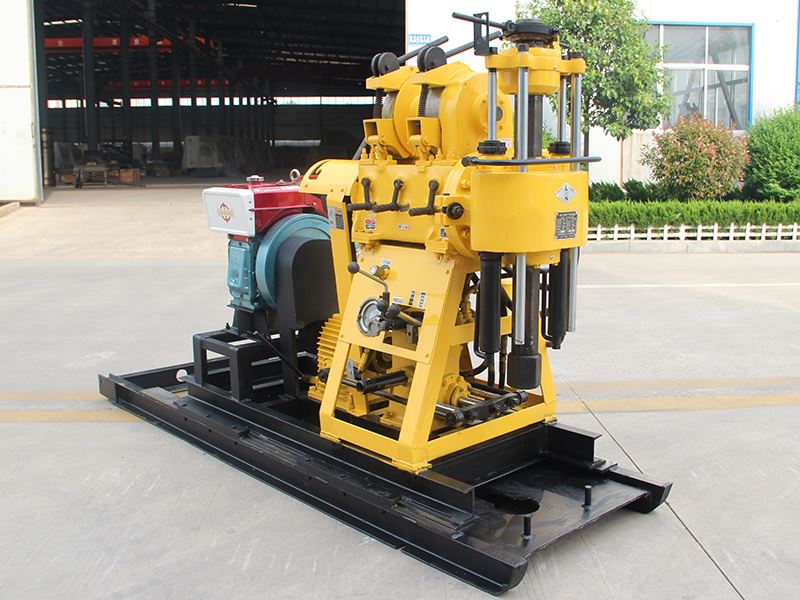

HZ-Series Geological Exploration Drilling Rigs

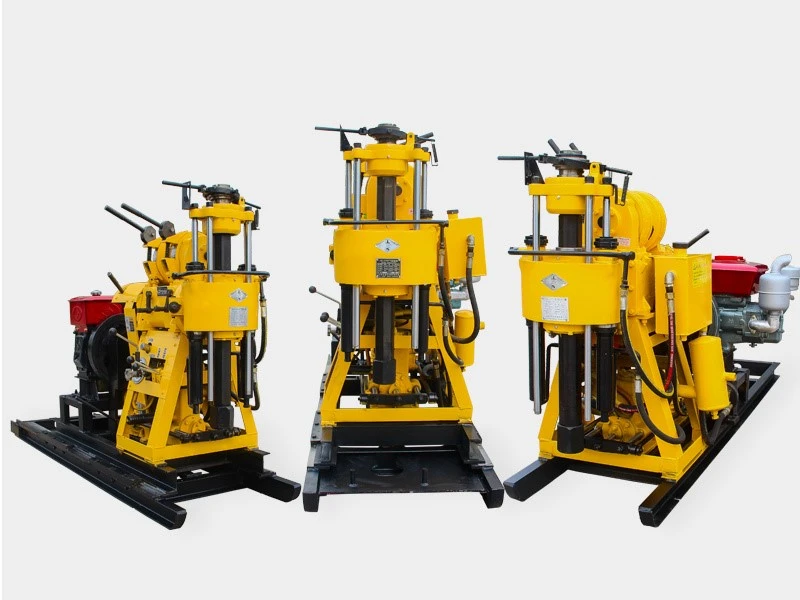

HZ-130YY / HZ-180YY / HZ-200YY Core Drilling Tshuab
CovHZ-Series Geological Exploration Drilling Rigyog ib qho pov thawj thiab tus nqi -kev daws teeb meem zoo rauKev tshawb nrhiav geotechnical, core sampling, dej zoo drilling, thiab kev soj ntsuam geological.
suav nrogHZ-130YY, HZ-180YY, thiab HZ-200YY, cov koob no paub txog nws txoj kev ntseeg siab, kev txav mus los, thiab muaj peev xwm ua kom muaj zog drilling hauv cov txheej txheem nyuaj.
Raws li ib tugportable tshawb nrhiav xyaum rig, HZ-Series txhawb nqa ob qho tib si ntsug thiab inclined drilling, ua rau nws zoo tagnrho rau kev ua haujlwm ntev - nyob deb, qhov chaw nyob deb, thiab pab pawg me rau nruab nrab engineering.
⭐ Ntsiab nta
✔ Kev Tshawb Fawb Geological muaj zog
Covgeological tshawb nrhiav drilling rigqauv siv lub zog spindle thiab plaub -cov kabmob tsim kom muaj kev ruaj ntseg hauv pob zeb, xuab zeb, thiab pob zeb tsim.
✔ High Torque & Lub Hwjchim Core Drilling
Raws li ib tugcore drilling tshuab, HZ-Series muab lub zog siab thiab muaj txiaj ntsig zoo siv 53 × 59 hli laum pas nrig, haum rau cov av nplaum thiab cov pob zeb.
✔ Saj zawg zog Drilling Angles
Txhawb nqa75℃-90 degreedrilling, zoo tagnrho rau kev tshawb nrhiav av, geotechnical drilling, dej me me, thiab kev tshawb fawb ntxhia.
✔ Kev xaiv fais fab zoo
Electric Tsav:15 kWm
Diesel Cav:22 hp ib
Cov tshuab fais fab no ua kom ntseeg tau tias kev ua tau zoo hauv txhua HZ-Series drilling rigs.
✔ Portable & Yooj yim rau kev khiav lag luam
Lub compact ncej ua rau lubHZ Series Drilling Rigyooj yim rau kev thauj mus los ntawm qhov chaw, zoo tagnrho rau cov tuam txhab tshawb fawb thiab cov neeg ua haujlwm engineering.
Technical parameter
| Qauv | HZ-130 YOG | HZ-180 YOG | HZ-200 YOG |
| Drilling qhov tob | 10-130m | 180m | 30--200m |
| Max qhib qhov dia. | 220 hli | 220 hli | 300 hli |
| Xaus qhov dia. | 75mm ua | 75 46 hli | 75mm ua |
| Laum pas nrig caliber | 42/50 mm | 50 42 hli | 50 hli |
| Drilling lub kaum sab xis | 90℃-75 degree | 90℃-75 degree | 90℃-75 degree |
| Drilling rig txav stroke | 400 hli | 400 hli | 400 hli |
| Drill hnyav (Tsis suav nrog lub zog) | 5 60kg | 6 10kg | 10 80kg |
| Unity tshuab qhov ntev | 2.5×1×1.3m | 2.1×0.9×1.3m | 2.5×1×1.3m |
| Spindle | |||
| Spindle ceev | 142, 285, 570r/min | 130, 300, 480, 730, 830, 1045r / min | 64,128,287,557r/min |
| Spindle stroke | 450 hli | 450 hli | 450 hli |
| Winch | |||
| Max.lifting muaj peev xwm | 1600 kg | 2000 kg | 2400kg ib |
| Ib kab lifting ceev | 0.41, 0.82, 1.64m/s | 0.32, 0.67, 1.06m/s | 0.41, 0.82, 1.64m/s |
| Wirerope dia. | Ø 9.3 mm | Ø 12.5 hli | 12.5mm 3 |
| Winch yob muaj peev xwm | 27m | 35m | 35m |
| Mud Pump | |||
| Hom | Kab rov tav ib lub tog raj kheej ntxaib -action | Kab rov tav ib lub tog raj kheej ntxaib -action | Kab rov tav ib urn ntxaib -action |
| Ntws | Diesel cav 95L / min Fais lub cev muaj zog 77L / min | 95 77L/min | 160L / min |
| Siab siab tshaj plaws | 1.2Mpa | 1.2Mpa | 1.5 Mpa |
| Ua hauj lwm siab | 0.7 Mpa | 0.7 Mpa | 0.7 Mpa |
| Suction hose dia. | 51mm ib | 51mm ib | 51mm ib |
| Qhov hluav taws xob hose dia. | 32mm ib | 32mm ib | 38mm ib |
| Lub zog | |||
| Diesle cav | Qauv: S1110, 20Hp | Qauv: S1110, 20Hp | Qauv: S1115, 22Hp, 2000r / min |
| Hluav taws xob lub cev muaj zog | Y160M-4, 11 kW | Y160M-4, 11kw, 1440r / min | Y160M-4, 15kw, 1440r / min |
⚙️ Technical Specifications
Fais fab System
Covhydraulic core drilling rigconfiguration xyuas kom meej torque thiab du drilling.
Electric lub cev muaj zog:15 kWm
Diesel cav:22 hp ib
Drilling System
Drilling kaum sab xis:75℃-90 degree
Haum rau: av, av nplaum, gravel, sandstone, bedrock
Hexagonal rods rau ruaj khov torque kis tau tus mob
Winch System
Lifting zog:1600-2400 kg
Heavy- lub luag haujlwm planetary iav
Nruas loj rau qhov tob tob
Mud Pump (Yeem)
BW-160 / BW-250 muaj
Zoo tagnrho rau ob leeggeotechnical drilling rigkev ua haujlwm thiab dej zoo drilling
🏗 Daim ntawv thov
HZ-Series yog haum rau:
Kev tshawb nrhiav geological
Core sampling & Mineral Survey
Kev tshawb nrhiav av drilling rig siv
Geotechnical engineering
Dej zoo core drilling rig tej yaam num
Geological soj ntsuam drilling cov cuab yeej xav tau
Kev tshawb nrhiav hauv paus & kev tsim kho
Pob zeb diamond core laum tshuab ua haujlwm rau pob zeb sampling
Seb siv li ibportable tshawb nrhiav xyaum riglos yog adej zoo core drilling rig, HZ-Series muab kev ua tau zoo tshaj plaws hauv ntau hom kev siv.
💡 Vim li cas thiaj xaiv HZ-Series?
⭐ Tus nqi siab -Kev ua tau zoo
Cov khoom siv pheej yig thiab txhim khu kev qha drilling haum rau loj - kev xa tawm.
⭐ Yooj yim Spare Xeem
Txhua qhov chaw ntawm lubHZ Series Drilling Rigyog tus qauv thiab yooj yim los hloov thoob ntiaj teb.
⭐ Muaj zog versatility
Ua haujlwm nrog cov av nkos, laum pas nrig, PDC khoom, pob zeb diamond khoom, thiab ntau yam kev tshawb nrhiav.
⭐ ruaj khov & Ntev Lifespan
Txhim kho cov qauv nrog ntev - lub sij hawm durability nyob rau hauv kev ua haujlwm tas mus li.
⭐ OEM Customization
Logo, xim, xaiv lub zog, thiab cov khoom siv ntxiv muaj.
❓ FAQ
Q1. HZ-Series laum sib sib zog nqus npaum li cas?
A: 130-200 m nyob ntawm tus qauv.
Q2. Nws puas haum rau cov pob zeb nyuaj?
A: Yog, tshwj xeeb tshaj yog thaum nruab nrog PDC thiabpob zeb diamond core laum tshuabme ntsis.
Q3. Nws puas txhawb angled drilling?
A: Yog, los ntawm75℃-90 degree, zoo tagnrho rau geotechnical drilling thiab av tshawb nrhiav.
Q4. Lub zog hluav taws xob yog dab tsi?
A: 15 kW hluav taws xob lub cev muaj zog lossis 22 HP diesel cav.
Q5. Kuv puas tuaj yeem yuav cov cuab yeej drilling ua ke?
A: Yog - rods, khoom, av nkos twj, thiab cov cuab yeej muaj nyob rau hauv tag nrho cov pob.
