Khoom nthuav dav

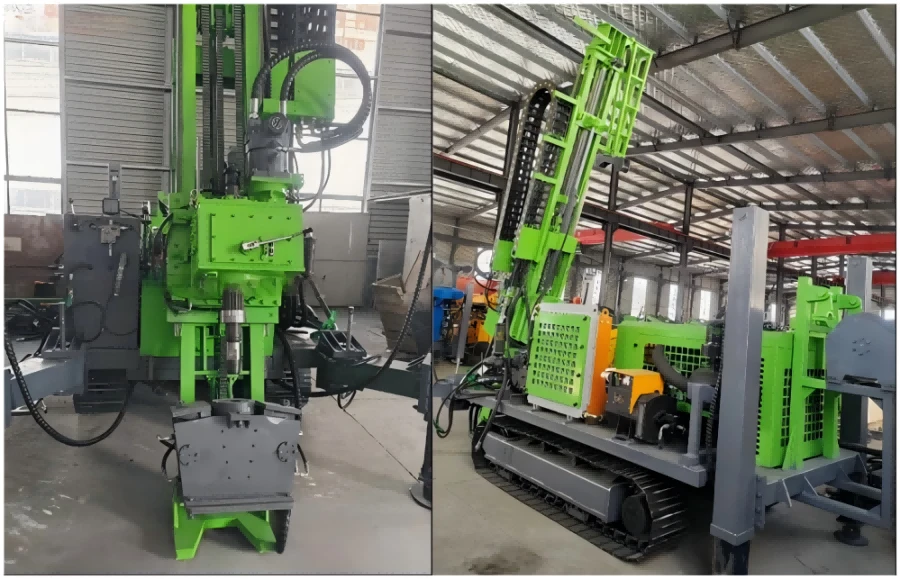

D Miningwell 1600m qhib qhov siab hydraulic core drilling rig yog ib hom tshiab ntawm cov tub ntxhais mining xyaum ua tiav raws li kev nqus cov thev naus laus zis zoo sib xws hauv cov tub ntxhais hauv av drilling rigs hauv tsev thiab txawv teb chaws. Nws lub ntsiab feature yog tias nws txais yuav ib tug floating spindle, uas yog tsuas yog siv rau drilling khoom ore deposits.

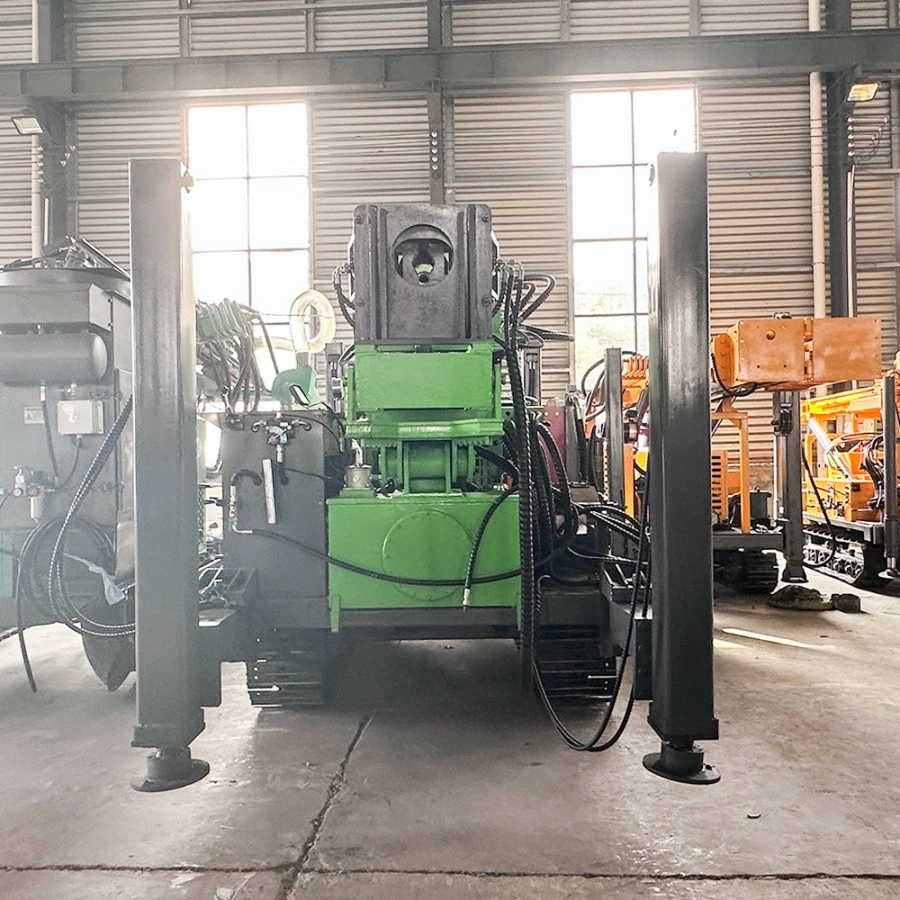

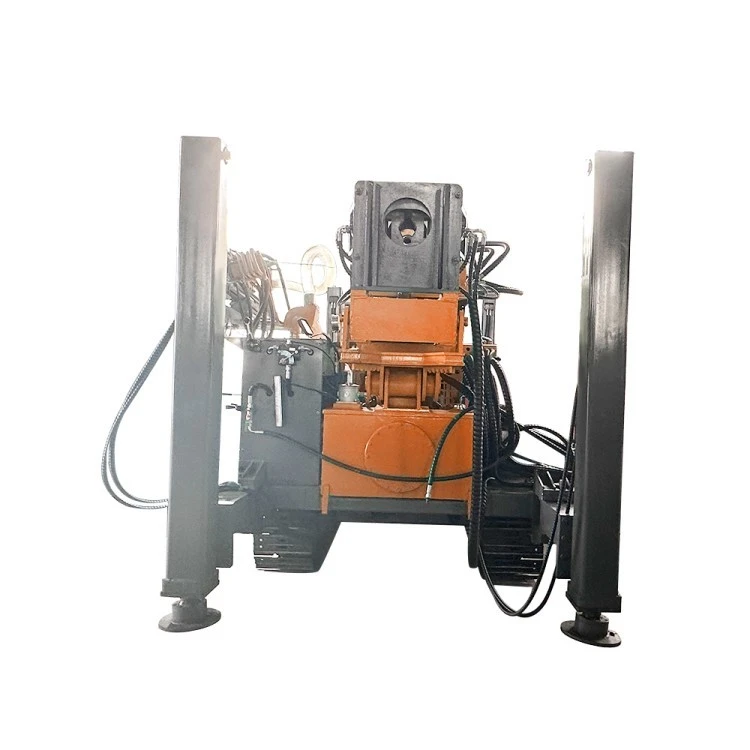

Lub pob zeb tseem ceeb xyaum JY1600 tuaj yeem nruab nrog cov qauv tsim kho, xws li hydraulic siab outriggers, hydraulic chucks, hydraulic lub ntsiab winch, thiab lwm yam, uas yog yooj yim rau txoj hauj lwm ceev ntawm lub rig, thiab nws yog nruab nrog wireless chaw taws teeb tswj crawler, uas yog haum rau ntau yam. Qhov kev xyaum ua pob zeb no yog nruab nrog cov chaw taws teeb tswj wireless, uas tsim nyog rau ntau yam struts, thiab tswj cov drilling rig kom nkag mus rau hauv qhov chaw nyab xeeb kom tsis txhob muaj kev phom sij sai.
Khoom nta
01.

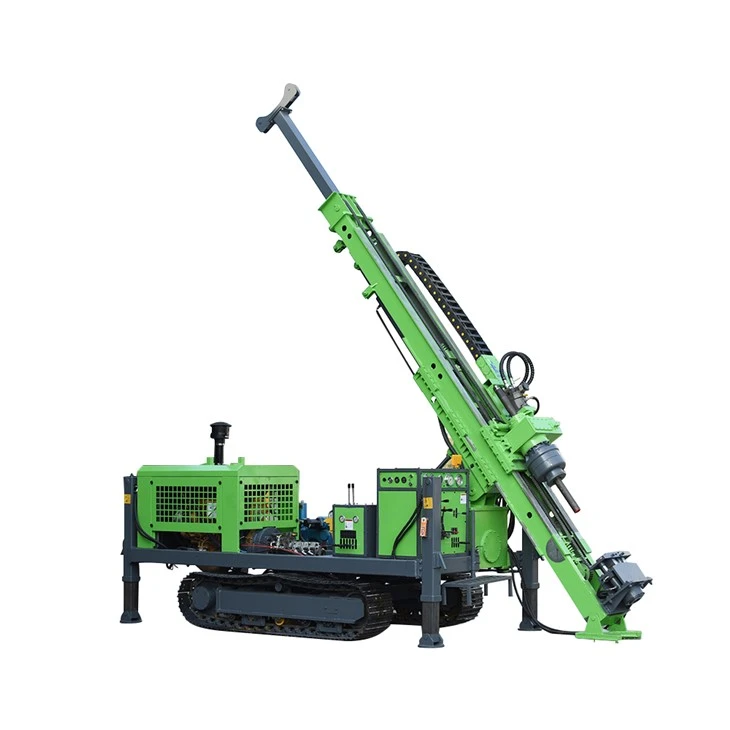

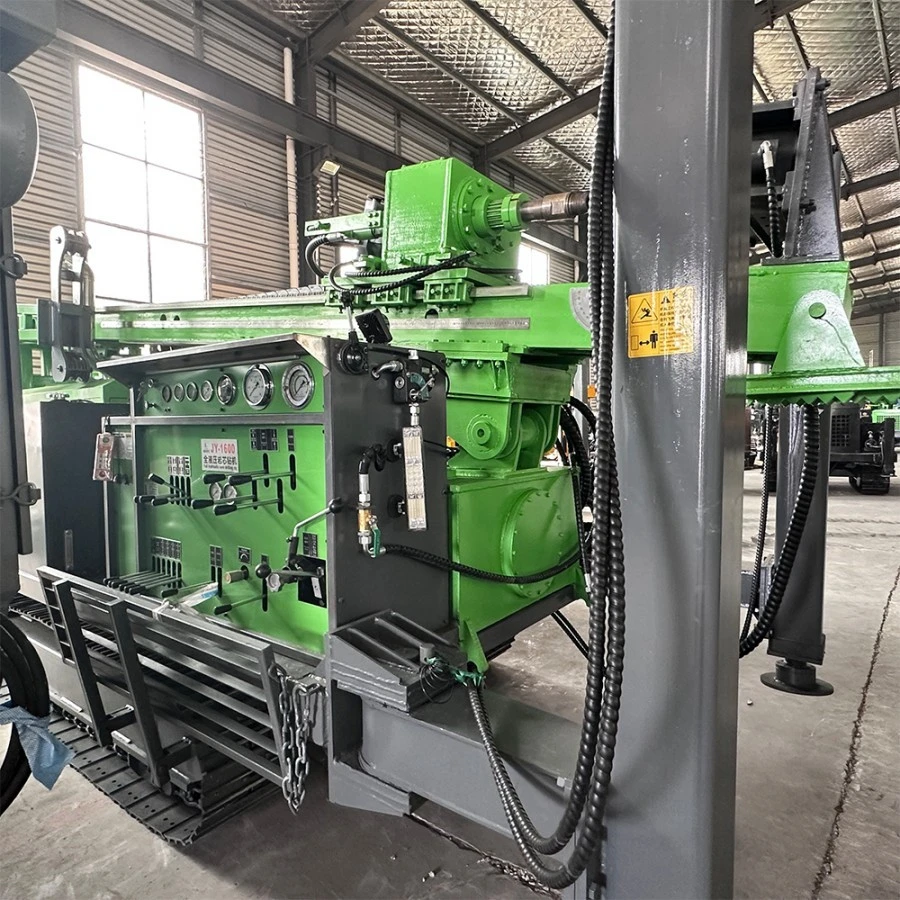

Lub hwj chim lub taub hau ntawm qhov chaw drilling khoom siv tshuab ob-theem stepless ceev tswj system, qis-ceev torque yog ob npaug, qhov siab tshaj plaws torque yog 3500Nm, cov nyhuv drilling yog du thiab txhim khu kev qha. Lub hwj chim lub taub hau yog nruab nrog lateral txhais mechanism, lub mast yog lifted thiab txo qis los ntawm cov roj lub tog raj kheej, thiab yuav zawv zawg ib tug tag nrho, uas muaj peev xwm laum qhov nyob rau hauv 45-90 degree, thiab nws yog yooj yim rau lifting thiab tso lub drilling. cuab yeej.
02.

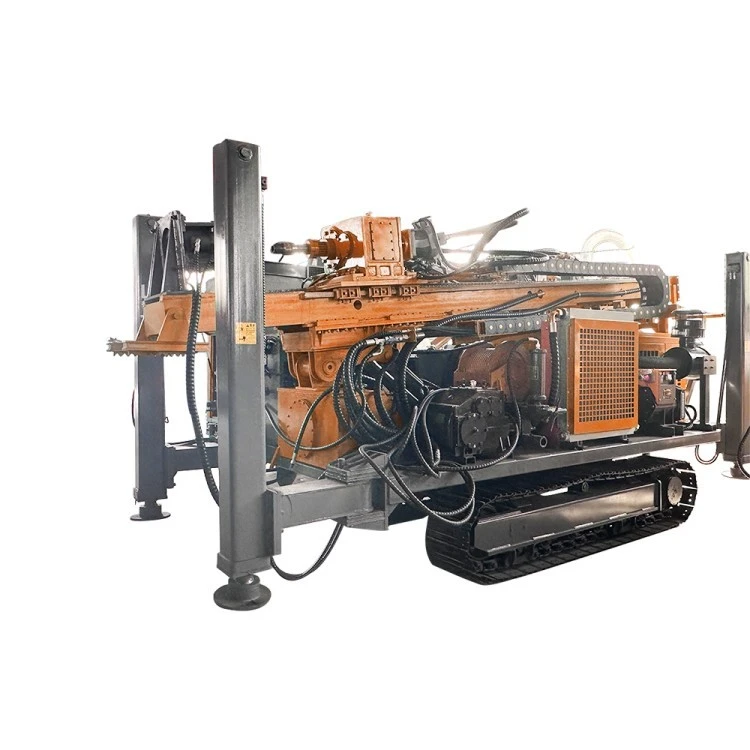

Lub hwj chim feem txais Weichai turbocharged cav, axial piston twj tso kua mis + peb lub iav twj tso kua mis tag nrho hydraulic tsav, hydraulic system hydraulic system adopts load-rhiab tswj, nrog 3-meter drilling pas nrig, ua hauj lwm efficiency thiab siab torque. Lub drilling rig kuj tau nruab nrog inclined ncej piston tsav tsav, compact qauv, me me, siab zog, cuam tshuam tsis kam, lub neej ntev, siab torque, zoo heev txhim kho drilling efficiency. Lub mast yuav folded nrog zawv zawg touchdown muaj nuj nqi.
Khoom Specifications
| Qauv | JY-1600 | |
| Drilling peev | BTW (m) | 1800 |
| NTW (m) | 1600 | |
| HTW (m) | 1200 | |
| / | / | |
| Hydraulic system | Rated siab (Mpa) | Lub ntsiab twj tso kua mis 145ml / r, 32MPa, Pab twj tso kua mis 152ml / r, 25MPa |
| Txoj kev txias | Cua txias + dej txias | |
| Cav parameters | Qauv | Weichai rau lub tog raj kheej / Cummins (yeem) |
| Rated zog (Kw) | 129/154 (yeem) |
|
| Rated ceev (rpm) | 2300 | |
| Lub zog lub taub hau parameter | Qhov siab tshaj plaws torque (Nm) | 3500 |
| Max ceev (rpm) | 1400 | |
| Muab cov txheej txheem (m) | 3.5 | |
| Lifting zog (kN) | 400 | |
| Kev txhawb zog (kN) | 200 | |
| Rope Coring Winch Parameters | Txoj kab uas hla (m) | 1600 |
| Lifting zog (kN) | 31 | |
| Nce ceev (m / min) | 110 | |
| Hlau hlua txoj kab uas hla (mm) | 6 | |
| Mast parameters | Tag Nrho Qhov siab / m | 8.5 |
| Drilling Angle degree | 45-90 | |
| Slip Stroke (mm) | 1200 | |
| Gripper tsis muaj | 75/89/115 | |
| Track parameters | Nce toj kaum degree siab tshaj plaws | 20 |
| Kev tsav tsheb siab tshaj plaws (km / h) | 2 | |
| Shipping qhov ntev | Length * Dav * Qhov siab (mm) | 5900*2200*2800 |
| Tshuab zoo (t) | 10 | |
Daim ntawv thov
JY-1600, lub tshuab hydraulic tag nrho siv hauv cov mines, pom ntau daim ntawv thov hauv thaj chaw geological thiab engineering geology xws li qhov ntiav, roj, roj av, ntawm lwm qhov chaw drilling, tab sis nws cov nqi hluav taws xob txuas mus rau kev tsheb ciav hlau, txoj kev loj, txuas hniav. , kev txuag dej thiab dej siv dej, qhov dej, thiab lwm yam kev ua haujlwm drilling.
Shipping & Them Nyiaj
Txhua daim ntawm Miningwell cov cuab yeej thiab cov khoom siv drilling tau dhau los ua kev kuaj xyuas kev nyab xeeb kom ruaj ntseg ntawm cov khoom thauj hauv lub thawv.
Peb txoj kev them nyiaj: credit card, L / C, T / T, Western Union, thiab peb txhawb nqa shipping los ntawm huab cua thiab hiav txwv.
Cim npe nrov: Tuam Tshoj qhib qhov hydraulic core drilling rig, Tuam Tshoj qhib qhov hydraulic core drilling rig manufacturers, lwm tus neeg, Hoobkas
