Khoom nthuav dav
Lub npe: miningwell
Yam tsawg kawg nkaus kom muaj nuj nqis: 1set
Pob Paub meej: 40HQ-20GP
Lub sij hawm xa tuaj: 15-20 hnub
Cov nqe lus them nqi: L / C, T / T, Western Union

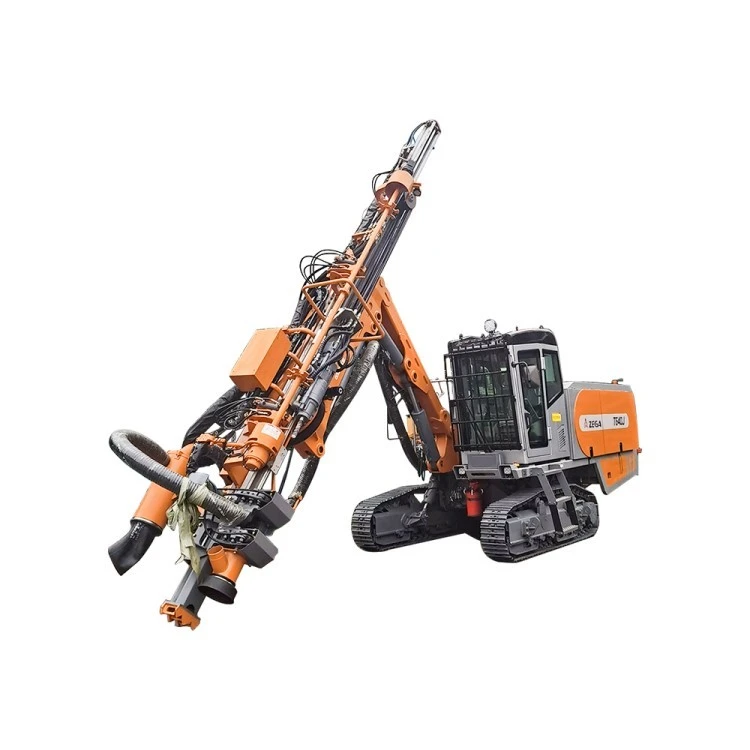

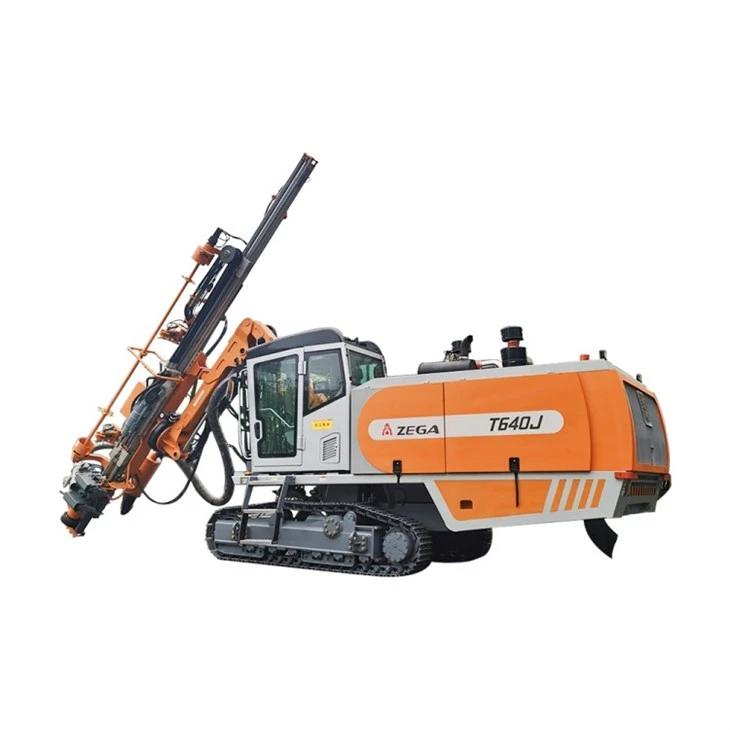

Lub hydraulic system ntawm T640J nto saum rauj laum rig yog powered los ntawm lub cav; qhov no, nyob rau hauv lem, ua raws li ib tug ntau yam ntawm hydraulic motors thiab lub tog raj kheej nyob rau hauv ua ib tug ntau yam ntawm functions. Qhov kev tsim ua ke tag nrho no txo qis qhov nyuaj ntawm qhov system thiab yog li ua kom ntseeg tau thiab yooj yim ntawm kev ua haujlwm.
Sab saum toj Hammer Surface Laum nta ntau yam tseem ceeb uas txhawb nqa nws txoj haujlwm thiab kev nyab xeeb:
- Kev txuag hluav taws xob Hydral: Tag nrho cov txheej txheem ua haujlwm hydraulically, txo qhov kev xav tau rau kev siv roj tsis tsim nyog thiab lav txo cov nqi ua haujlwm. Lub tshuab hluav taws xob zoo hydraulic tsis yog tsuas yog txo qis cov kev xav tau ntawm kev saib xyuas tab sis kuj tseem txuas ntxiv lub sijhawm ua haujlwm ntawm lub rig.
- Rau Kev Tiv Thaiv Ib puag ncig: Lub rig, haum nrog cov khoom siv plua plav qhuav, lav tias kev ua haujlwm drilling tau ua tiav nrog qhov cuam tshuam ib puag ncig tsawg. Lub kaw lus tau txais txiaj ntsig zoo ntawm kev ntes thiab txo cov plua plav hauv huab cua, txhim kho kev huv thiab kev nyab xeeb ntawm chaw ua haujlwm.
- Kev Nyab Xeeb: Ua kom tus neeg teb xov tooj muaj kev nyab xeeb yog qhov tseem ceeb hauv kev xyaum tsim. Cov qauv tsim muaj xws li lub tsheb tavxij resistant rau dov thiab rockfalls, tiv thaiv kev tsis sib haum xeeb los yog rockfalls. Cov txheej txheem no automation siab heev ua rau kev ua haujlwm ib leeg, yog li txo qis kev ua yuam kev hauv tib neeg txoj haujlwm thiab txhim kho kev nyab xeeb.
- Kev ua tau zoo: Nruab nrog ntau yam kev ua haujlwm txhim kho kev ua haujlwm zoo, T640J boasts ib qho automated pas nrig-hloov mechanism, lubricating mechanism rau laum pas nrig threads, thiab lub kaum ntse ntse ntsuas hluav taws xob. Cov kev nce qib ua tau zoo heev txhim kho qhov ceev, precision, thiab kev ua tau zoo ntawm cov txheej txheem drilling.
Ib qho ntawm cov yam ntxwv zoo ntawm T640J yog nws qhov kev hloov pauv mus rau qhov sib txawv thiab cov xwm txheej nyuaj. Multi-directional loj-lub kaum sab xis laum caj npab tso cai rau lub rig mus txog predetermined qhov chaw ntawm zoo txhua lub kaum sab xis, txawm nyob rau hauv uneven los yog sloped av. Qhov siab tshaj crawler tsis siv neeg tensioning system thiab tsis siv neeg leveling system xyuas kom meej tias cov rig tseem ruaj khov thiab qib ntawm ntau qhov chaw, txhim kho nws txoj kev ntseeg siab hauv kev tawm ntawm txoj kev thiab nce toj.
Kev sib xyaw ua ke ntawm qhov saum npoo rauj drilling yog sib xws nrog T38, T45, thiab T51 detachable laum rods, thiab tuaj yeem ua tiav qhov tob tob txog li 20 meters nrog tus pas nrig ntev ntawm 3.66 meters, tso cai rau qhov tseem ceeb drilling ncav cuag thiab yooj. Nyob ntawm seb hom kev xyaum siv, lub rig tuaj yeem ua tiav qhov sib txawv ntawm qhov sib txawv, ua rau nws haum rau ntau hom kev siv drilling.
Specifications
|
Technical Specifications |
|||
|
Qhov taub (mm) |
76-102 |
Rotary ceev (r / min) |
0 - 135 |
|
Qhov tob (m) |
20 |
Boom hom |
Folded boom |
|
Pob zeb xyaum |
ZWM 104 H |
Ntsia Hlau Compression Cua Compressor |
|
|
Rated zog (kW) |
153 |
Air end manufacturers |
ZEGA |
|
Roj tank peev xwm (L) |
440 |
Tshem tawm huab cua ntim FAD (m³ / min) |
7 |
|
Kev sib hloov rpm |
1900 |
Ua haujlwm siab (bar) |
8 |
|
Kev sib hloov torque (Nm) |
1180 |
Qhov hnyav & thauj qhov ntev |
|
|
Laum pas nrig carousel muaj peev xwm |
5+1(Auto rod changer) |
Qhov siab (mm) |
3,100 |
|
Laum pas nrig (mm) |
3,660 |
Ntev (mm) |
11,300 |
|
Laum pas nrig (mm) |
45 / 51 |
Dav (mm) |
2,550 |
Daim ntawv thov
Tsim nyog rau kev siv ntau yam xws li chaw txua txiag zeb, mining, hydropower ventures, tsim txoj kev loj, thiab ntau yam haujlwm hauv pob zeb engineering, T640J yog hydraulic integrated tracked rauj drilling rig. Kev siv dav ntawm peb cov hydraulic qhib-qhov pob zeb drilling rigs suav nrog quarries, mining, hydropower tsev, txoj kev loj, pob zeb engineering, thiab ntau yam kev siv tshuab. Tso tawm yog ib daim duab qhia peb cov engineers koom nrog kev saib xyuas ntawm drilling rigs hauv Malaysia. Peb cov neeg siv khoom txaus siab rau peb cov kev pabcuam.
Shipping & Them Nyiaj
Txhua daim ntawm Miningwell cov cuab yeej thiab cov khoom siv drilling tau dhau los ua kev kuaj xyuas kev nyab xeeb kom ruaj ntseg ntawm cov khoom thauj hauv lub thawv.
Peb txoj kev them nyiaj: credit card, L / C, T / T, Western Union, thiab peb txhawb nqa shipping los ntawm huab cua thiab hiav txwv.
