Khoom nthuav dav
01 Exceptional Efficiency thiab kev txuag nqi

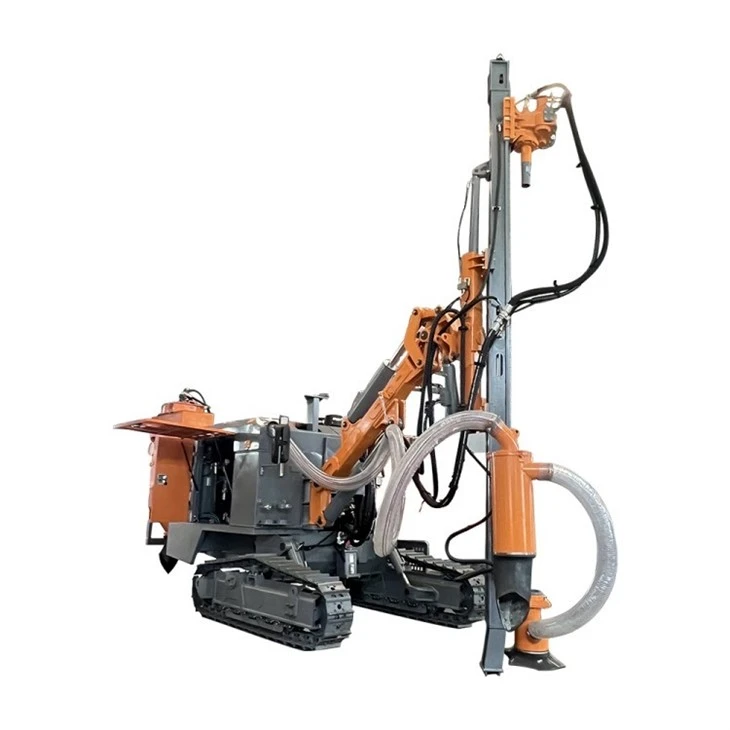

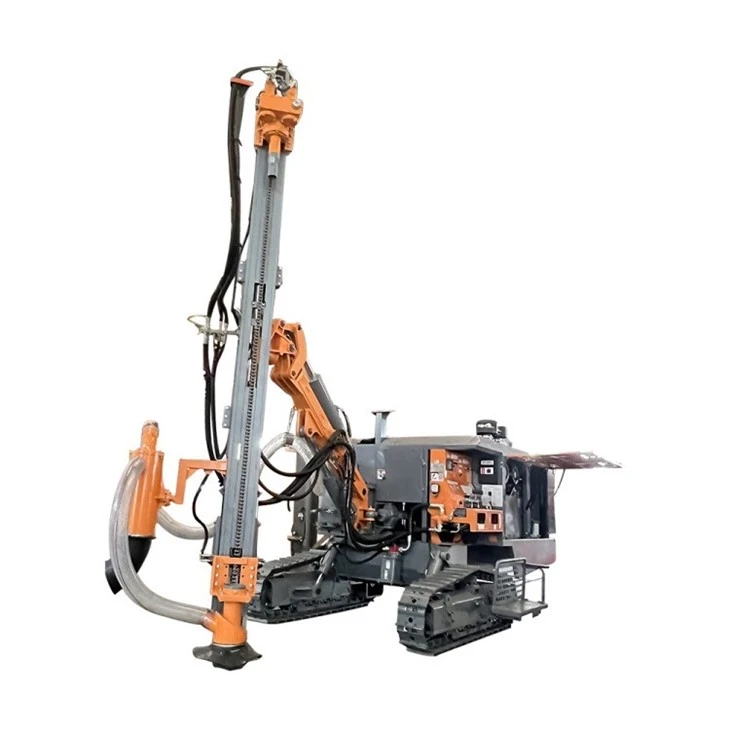

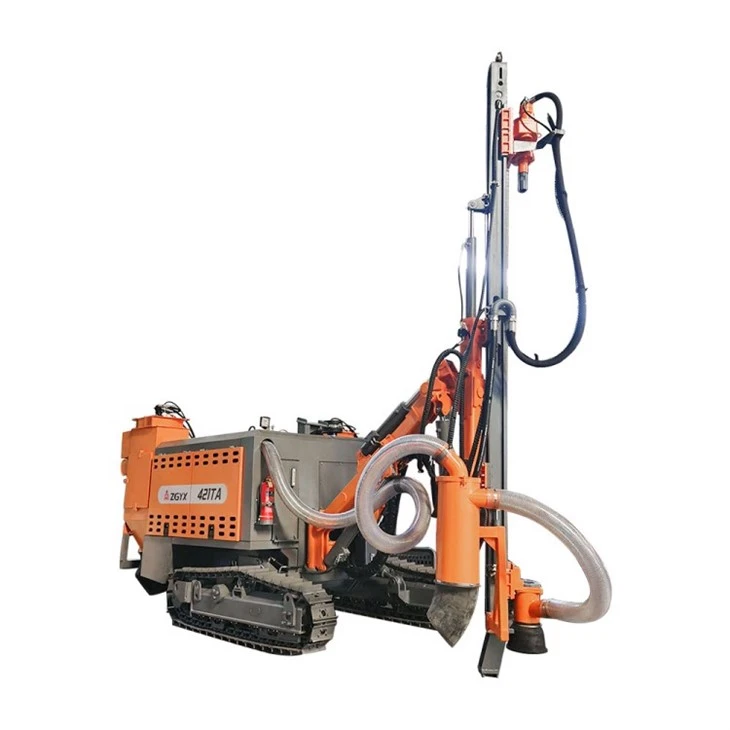

ZGYX-452T mining down the hole drilling rig integrates one power pack to drive both the hydraulic system and the screw air compressor, delivering a streamlined solution that significantly txo cov nqi khiav lag luam. Piv nrog rau cov pa sib cais drilling rigs, qhov kev tsim no txo cov roj noj los ntawm 35% thiab cov nqi kho mob txog li 50%, muab cov txiaj ntsig zoo rau kev ua tau zoo yam tsis muaj kev cuam tshuam zoo lossis kev ua haujlwm.
02 Muaj peev xwm Drilling muaj peev xwm
Nruab nrog Yuchai YCA07260-T301 lub hwj chim pob thiab cov ntsia hlau cua compressor muaj peev xwm ntawm 18 bar thiab 17m³ / min airflow, down lub qhov drilling rig ZGYX-452T yog tsim los rau drilling qhov txij li 90 hli mus rau 130 mm diam. Nws lub zog torque rotation unit yooj yim nkag mus rau hauv cov pob zeb nyuaj, kom ntseeg tau tias kev ua tau zoo thiab txhim khu kev qha hauv cov cheeb tsam nyuaj. Lub zog muaj zog dual-ceev hydraulic tramming system muab kev muaj peev xwm tawm ntawm txoj kev zoo heev, ua rau kev ua haujlwm du thoob plaws ntau qhov chaw.
03 Txhim kho ib puag ncig yam ntxwv
Lub hauv qab lub qhov drilling rig ob-theem qhuav plua plav sau cov txheej txheem txhim kho ib puag ncig tus phooj ywg thaum txhawb kev tsim khoom. Los ntawm kev txo cov plua plav tawm thaum lub sijhawm ua haujlwm, lub kaw lus no ua kom ua raws li cov qauv ib puag ncig thaum tswj xyuas qhov chaw ua haujlwm huv thiab nyab xeeb.
04 Yooj yim khiav lag luam thiab tu
Lub 452T nqes hauv lub qhov rauj laum rig nta ib qho kev tswj hwm kev sib koom ua ke nrog kev xav zoo, tso cai rau cov neeg ua haujlwm tswj hwm txhua txoj haujlwm tsis muaj zog. High-quality hydraulic Cheebtsam, tau los ntawm thoob ntiaj teb renowned European hom, xyuas kom meej system kev cia siab thiab txo cov kev tu ncua. Tsis tas li ntawd, kev sib koom ua ke ntawm huab cua compressor thiab drilling rig ntawm tib lub platform txo qis zog los ntawm kev sib txuas cov kav dej thiab ua rau kom muaj kev txav mus los rau kev tswj xyuas cov nkoj.
Specifications
|
Qauv |
ZWM 452T |
ZWM 452H |
|
Qhov hnyav |
8, 860 kg |
10, 000 kg |
|
Cav (standard) |
Yuchai |
Yuchai |
|
Qhov Loj (LxWxH) |
9, 000 × 2,360 × 3, 000 hli |
|
|
Kev sib hloov torque (MAX) |
2,200 N.m |
|
|
Drilling qhov taub |
Φ{0}} hli |
|
|
DTH rauj (Standard) |
4" |
|
|
Drilling pas nrig |
Φ76 × 3, 000 hli |
|
|
Diesel tank ntim |
300 L |
|
Daim ntawv thov
Tsim los rau ntau yam kev ua haujlwm drilling, ZGYX-452T yog qhov zoo tshaj plaws rau cov haujlwm xws li mining nto, chaw txua txiag zeb, kev tsim kho hauv nroog, txoj kev nqes hav ruaj khov, lub hauv paus pits, thiab qhib qhov av loj. Nws versatility kuj txuas mus rau drilling pob zeb bolt qhov, thauj tog rau nkoj cable qhov, moj tej tawg qhov, thiab txhaj qhov.
Shipping & Them Nyiaj
Txhua daim ntawm Miningwell cov cuab yeej thiab cov khoom siv drilling tau dhau los ua kev kuaj xyuas kev nyab xeeb kom ruaj ntseg ntawm cov khoom thauj hauv lub thawv.
Peb txoj kev them nyiaj: credit card, L / C, T / T, Western Union, thiab peb txhawb nqa shipping los ntawm huab cua thiab hiav txwv.
