Specifications
|
Qauv |
300 |
350 |
400 |
500 |
600 |
800 |
|
Qhov hnyav tag nrho (kg) |
7000 |
9000 |
10000 |
11500 |
12000 |
13000 |
|
Qhov Loj (mm) |
4100*1950*2600 |
5900*2000*2850 |
5900*2100*2850 |
6200*2200*2950 |
6000*2200*2850 |
6100*2100*2900 |
|
Qhov taub (mm) |
140-325 |
140-325 |
140-350 |
140-350 |
140-350 |
140-500 |
|
Qhov tob (m) |
300 |
350 |
400 |
500 |
600 |
700 |
|
Disposable Drilling qhov tob (mm) |
3000 |
6600 |
6600 |
6600 |
6600 |
6600 |
|
Taug kev ceev (km / h) |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
|
Climbing peev xwm (Max.) |
30 |
30 |
30 |
30 |
30 |
30 |
|
Ua haujlwm siab (Mpa) |
1.7-3.0 |
1.7-3.3 |
1.7-3.5 |
1.7-3.5 |
1.7-3.5 |
1.7-3.5 |
|
Kev siv cua (m3 / min) |
17-35 |
17-35 |
17-35 |
17-42 |
17-42 |
17-35 |
|
Qhov sib txawv zog (kw) |
75.8 |
84 |
92 |
118 |
132 |
140 |
|
Kev sib hloov ceev (rpm) |
40-70 |
55-115 |
45-115 |
40-100 |
45-115 |
55-115 |
|
Lifting quab yuam (Ton) |
18 |
24 |
25 |
26 |
28 |
30 |
|
Rotational torque (NM) |
5700-7500 |
6200-8500 |
6500-9000 |
7500-10000 |
8500-11000 |
8660-11150 |
|
Drill Rod Loj (mm) |
Φ76 Φ89 Φ102 |
Φ89 Φ102 |
Φ102 Φ108 ,Φ114 |
|||
|
Drill Length (M) |
1.5 2.0, 3.0, 6.0 |
|||||
Product Detail

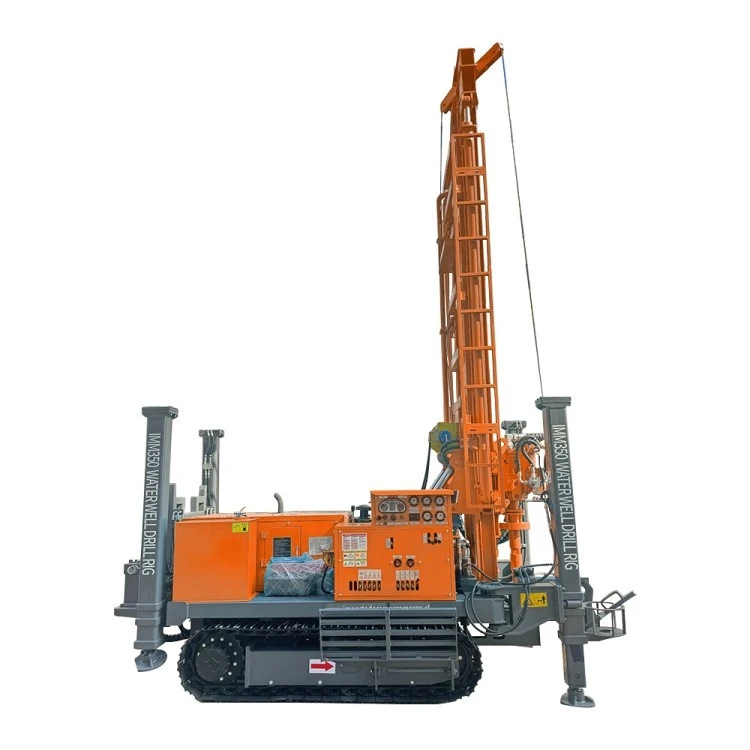

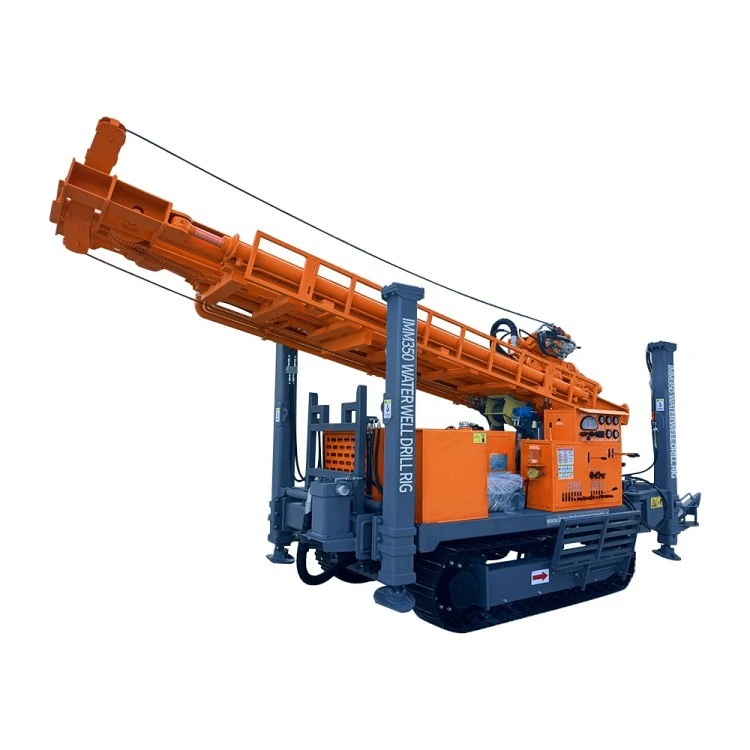

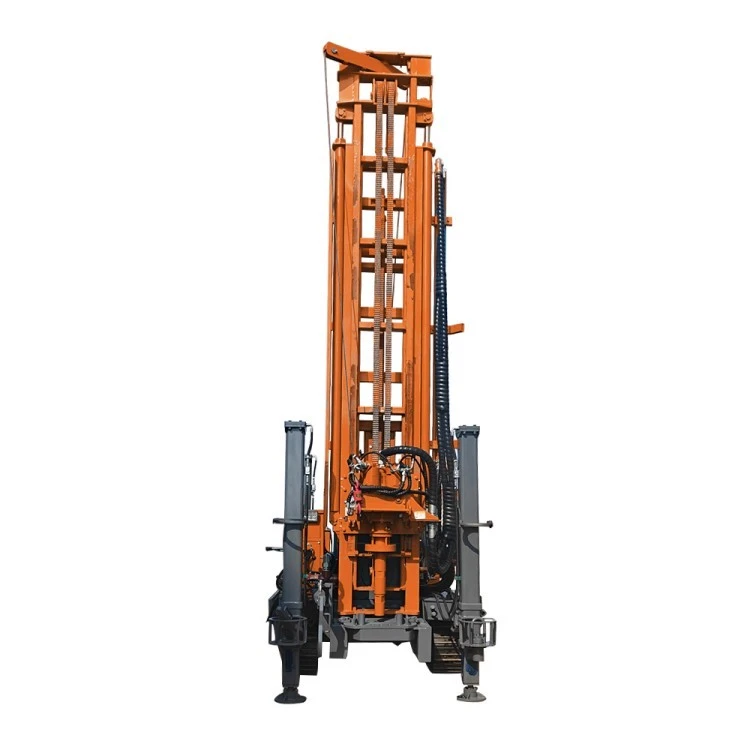

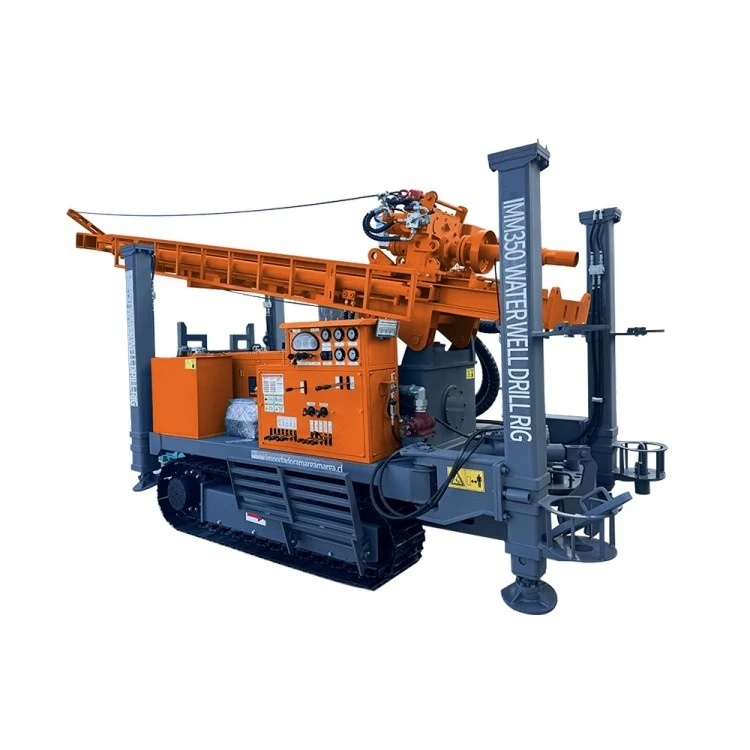

Lub hauv paus rau qhov no crawler drilling teeb yog nws hydraulic mechanism, tus yam ntxwv los ntawm ib tug rotation ntawm hydraulic lub cev muaj zog, nrog rau lub zog propulsion thiab lifting cylinders. Lub rig muaj peev xwm ncav cuag qhov tob tob tob li 350 meters, ua tsaug rau lub siab moj tej tawg down-hole impacter, guaranteeing zoo drilling efficiency thiab txo zog siv. Engineered rau unparalleled efficiency, lub crawler pob zeb drilling rig muab ib txoj kev uas txo cov roj noj thaum txhim kho drilling productivity.
Featuring ib qho excavator-style undercarriage, lub crawler chassis ua kom muaj kev tawm ntawm txoj kev zoo tshaj plaws thiab ruaj khov hauv cov xwm txheej nyuaj. Kev tsim qauv ruaj khov ntawm lub tshuab crawler borehole laum rig no ua kom yooj yim rau kev taug kev ntawm cov toj roob hauv pes nyuaj, ua rau nws zoo tagnrho rau kev sib cais thiab xav tau qhov chaw drilling. Nws standalone module qauv txhim kho lub rig lub adaptability, yooj yim nws txuas mus rau cov tsheb thauj khoom kom zoo zog thiab thauj yooj yim.
Nruab nrog dual-ceev rotary thiab propulsion nta, no crawler dej zoo drilling rig adeptly tswj cov dej num uas muaj ob qho tib si av thiab pob zeb drilling. Qhov kev sib koom ua ke ntawm qhov system no, hloov tau rau ntau yam drilling rods thiab underwater hammers, lav qhov tseeb thiab muaj kev ntseeg siab thiab kev ua haujlwm. Cov yam ntxwv no txhim kho lub rig qhov precision thiab ruaj khov thaum siv, yog li optimizing qhov ua tau zoo ntawm drilling.
Lub zog hydraulic winch txhawb nqa lub crawler laum rig qhov dav nqa lub peev xwm, ua kom yooj yim rau kev tswj hwm ntawm cov tshuab hnyav xws li laum cov kav dej, cov raj casing, thiab cov cuab yeej drilling. Tsis tas li ntawd, cov cuab yeej txuas ntxiv ua kom yooj yim rau kev tsim kho ntawm cov kav dej pov tseg thoob plaws hauv cov dej num drilling.

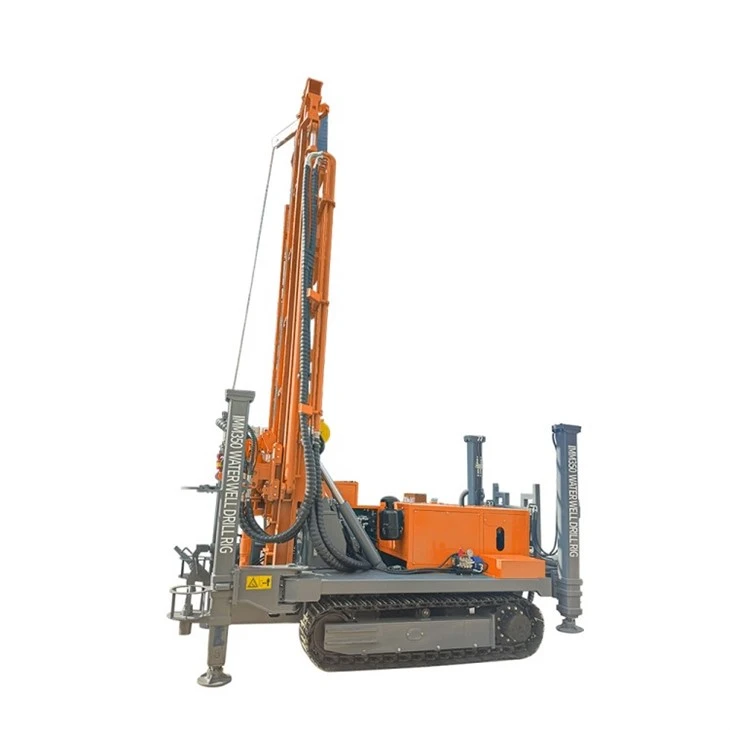

Cov yam ntxwv tseem ceeb ntawm 350m Crawler Hom Hydraulic Dej Drilling Rig suav nrog:
- Yuchai 85kW turbocharged diesel cav, muab kev txhim khu kev qha thiab muaj zog ua haujlwm.
- Cov khoom siv taug kev ruaj khov nrog lub neej ua haujlwm ntev, muaj lub cev muaj zog taug kev nrog lub gearbox.
- Kev siv lub tebchaws United States PERMCO hydraulic twj tso kua mis, xa cov nqi ntws siab thiab siab kom tau raws li qhov xav tau ntawm cov khoom hnyav.
- Lub tshuab hluav taws xob ob lub taub hau, ua kom lub zog loj thiab cov nqi kho mob qis dua.
- Lub chassis kev tshaj lij nrog lub phaj dav dav thiab lub peev xwm loj, tsim los rau kev puas tsuaj tsawg.
- patented tsim kev sib txuas caj npab rau kev txhawb nqa lub zog, nruab nrog ob lub tog raj kheej kom ntev stroke thiab loj tonnage lifting.
- A 6.
- Tiv thaiv roj tube tsho, ua kom lub neej ntev kev pab cuam rau hydraulic Cheebtsam
Daim ntawv thov
Lub 350m Crawler Hom Hydraulic Dej Drilling Rig sawv tawm nrog nws cov kev ua haujlwm zoo dua, kev cia siab rau, thiab kev yoog raws, ua haujlwm tsis muaj nuj nqis hauv ntau hom kev xyaum drilling. Nws lub zog-txuag architecture, muaj zog hydraulic system, thiab ruaj khov tsim tau lees tias ua haujlwm siab thiab txo cov nuj nqis ua haujlwm.
Shipping & Them Nyiaj
Txhua daim ntawm Miningwell cov cuab yeej thiab cov khoom siv drilling tau dhau los ua kev kuaj xyuas kev nyab xeeb kom ruaj ntseg ntawm cov khoom thauj hauv lub thawv.
Peb txoj kev them nyiajL: credit card, L / C, T / T, Western Union, thiab peb txhawb nqa shipping los ntawm huab cua thiab hiav txwv.
Cim npe nrov: 350m crawler hom hydraulic dej zoo drilling rig, Tuam Tshoj 350m crawler hom hydraulic dej zoo drilling rig manufacturers, lwm tus neeg, Hoobkas
