Specifications
|
Technical parameters |
MW 330S yog qhov kev xaiv zoo tshaj plaws rau cov neeg siv khoom | MW 400 QS Ⅴ |

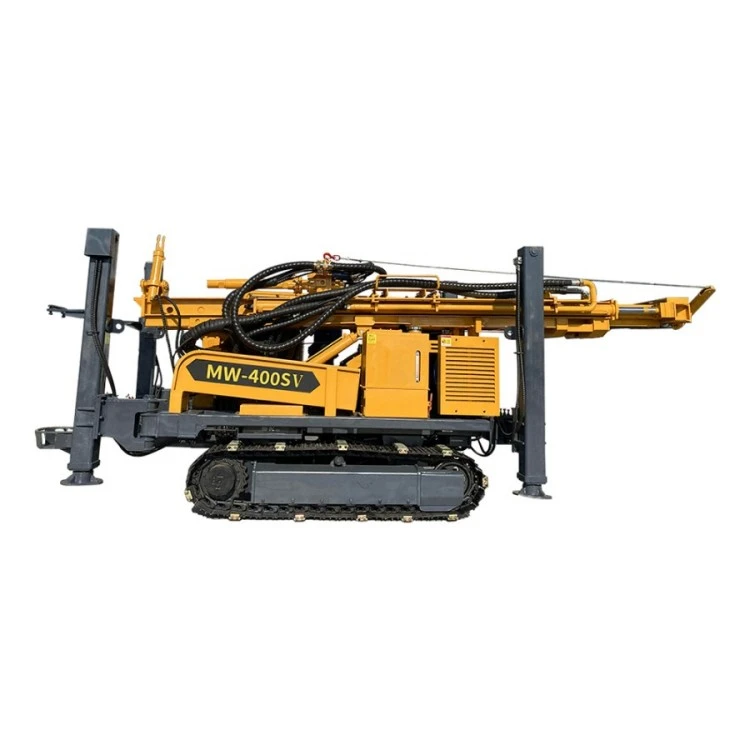

MW 400 SV |
MW 500 SV |
MW 600 SV |
MW 650 SV |
MW 750 SWB |
|
Max drilling qhov tob (M) |
330 |
400 |
400 |
500 |
600 |
650 |
750 |
|
Lub zog (KW) |
91 |
103 |
92 |
110 |
132 |
132 |
176 |
|
Drilling txoj kab uas hla (mm) |
105-305 |
105-325 |
105-325 |
105-400 |
105-400 |
105-450 |
105-450 |
|
Cua siab (Mpa) |
1.2-3.5 |
1.2-3.5 |
1.2-3.5 |
1.2-3.5 |
1.2-3.5 |
1.6-6 |
1.6-6 |
|
Kev siv cua (m³ / min) |
16-55 |
16-55 |
16-55 |
16-55 |
16-55 |
16-75 |
16-75 |
|
Drill yeeb nkab ntev (m) |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
|
Drill yeeb nkab txoj kab uas hla (mm) |
89 |
89/102 |
89/102 |
89/102 | 89/102 |
89/102 |
102 |
|
Axial siab (T) |
3 |
4 |
4 |
6 |
6 |
6 |
6 |
|
Lifting zog (T) |
18 |
22 |
22 |
30 |
35 |
38 |
40 |
|
Kev ceev lifting ceev (m / min) |
30 |
29 |
29 |
29 |
33 |
28 |
31 |
|
Ceev ceev ceev (m / min) |
60 |
56 |
56 |
48 |
55 |
60 |
65 |
|
Max rotary torque (Nm) |
8000/4000 |
8000/4000 |
8000/4000 |
11000/5500 |
12000/6000 |
13000/6500 |
13000/6500 |
|
Max rotary ceev (r / min) |
60/120 |
75/150 |
75/150 |
75/150 |
90/180 |
95/190 |
95/190 |
|
Loj theem nrab winch lifting quab yuam (T) |
- |
- |
- |
- |
- |
- |
- |
|
Me me theem nrab winch lifting quab yuam (T) |
1.5 |
1.5 |
1.5 |
1.5 |
2.5 |
2.5 |
2.5 |
|
Jacks stroke (m) |
1.45 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
|
Drilling efficiency (m / h) |
10-35 |
10-35 |
10-35 |
10-35 |
10-35 |
10-35 |
10-35 |
|
Tsav ceev (km / h) |
2.5 |
3 |
2.5 |
3 |
3 |
3 |
3 |
|
Uphill angle (Slope) |
21 degree |
21 degree |
21 degree |
21 degree |
21 degree |
21 degree |
21 degree |
|
Qhov hnyav ntawm lub rig (T) |
8.3 |
8.6 |
9.8 |
10.6 |
12.5 |
13 |
14 |
|
Qhov Loj (M) |
6.32*1.7*2.39 |
6.25*1.7*2.39 |
6.26*1.85*2.43 |
6.52*1.85*2.51 |
6.73*2.1*2.63 |
6.73*2.1*2.75 |
6.64*2.25*2.59 |
|
Kev ua haujlwm |
Unconsolidated tsim thiab pob zeb taub hau |
||||||
|
Txoj kev Drilling |
Sab saum toj tsav hydraulic teb thiab thawb, rauj lossis av nkos drilling |
||||||
|
Matched DTH rauj |
Nruab nrab thiab siab cua siab series |
||||||
|
Xaiv tau accessories |
Mud twj tso kua mis, Centrifugal twj tso kua mis, Generator, ua npuas ncauj twj tso kua mis, Truck |
||||||
Khoom nthuav dav

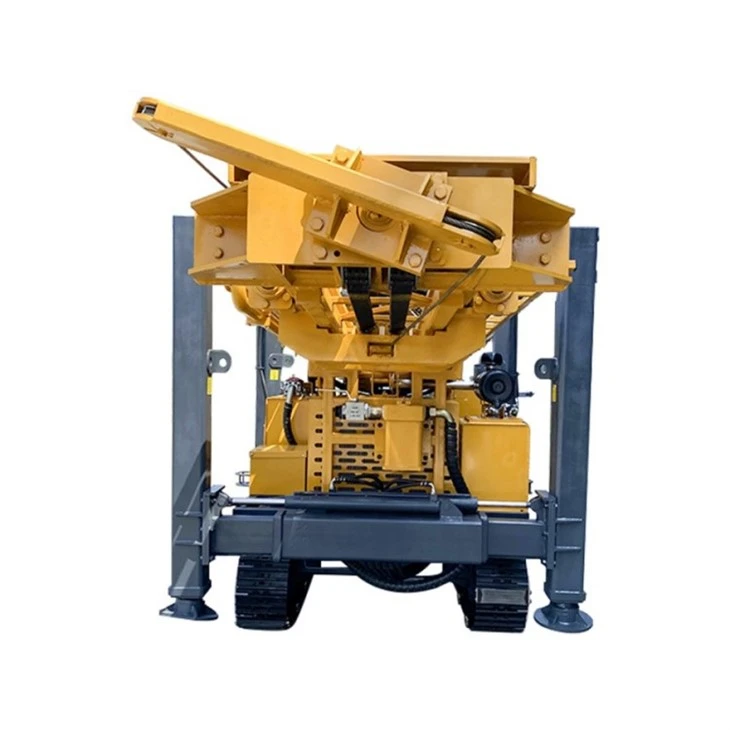

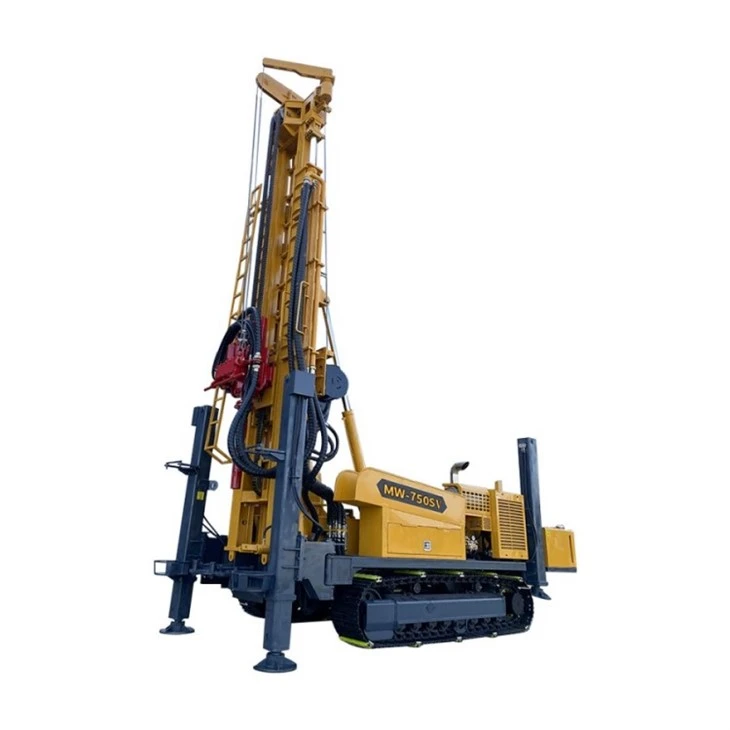

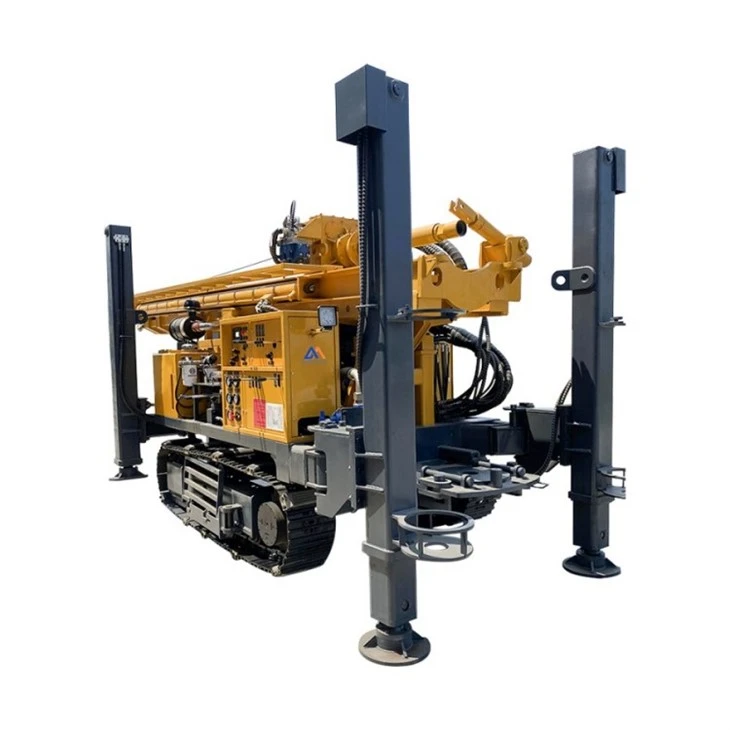

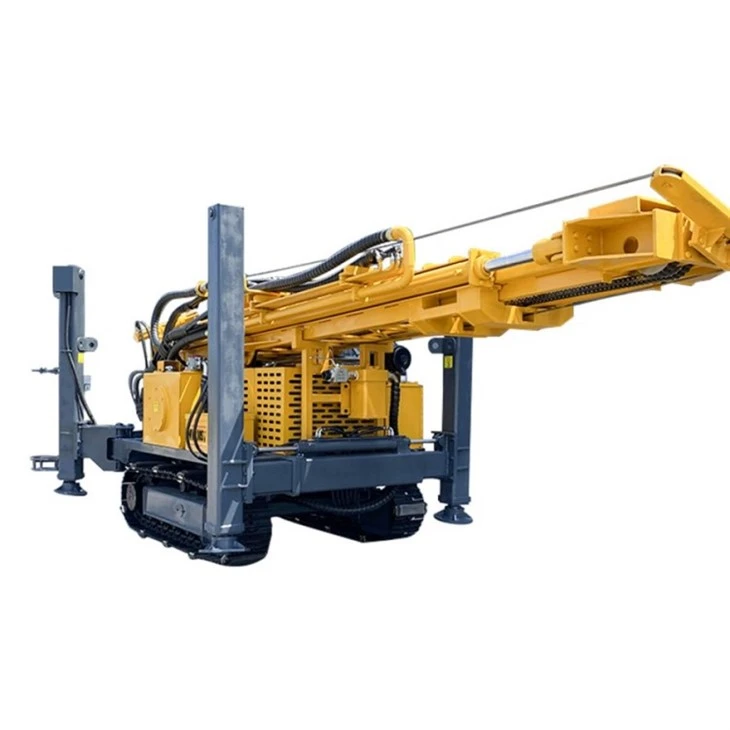

Lub lifting ntawm sab saum toj tsav dej zoo drilling rig thav duab, drilling pas nrig unloading, kev sib hloov thiab pub mis, txhawb ob txhais ceg, hoisting, taug kev thiab lwm yam kev ua ntawm no series ntawm drilling rigs yog tag nrho cov siv los ntawm hydraulic systems, zoo heev txo kev siv zog, txhim kho kev tsim kho efficiency. thiab engineering zoo. Lub telescopic ntauwd hom hydraulic zoo drilling rig txo qhov ntev ntawm qhov drilling thav duab los ntawm ob zaug thiab tuaj yeem ncaj qha txo qis 6-meter laum pas nrig lossis casing, ntxiv kom luv lub sijhawm drilling. Lub vaj huam sib luag hloov kho tshiab tuaj yeem siv rau kev ua haujlwm sib txawv.
Lub npe: miningwell
Ntawv pov thawj: CE, ISO
Yam tsawg kawg nkaus kom muaj nuj nqis: 1set
Pob Paub meej: 40HQ-20GP
Lub sij hawm xa tuaj: 15-20 hnub
Cov nqe lus them nqi: L / C, T / T, Western Union
Peb Qhov Zoo
Lub Siab Hydraulic Dej Drilling Rig tuaj yeem siv cua DTH Rauj drilling thiab av nkos drilling.
Centralized tswj console yog haum rau txhua qhov kev tswj thiab tswj. Kev rub thiab nqa nrawm txo lub sijhawm pabcuam thiab txhim kho kev ua haujlwm zoo.
Lub ntsiab tsav system, hloov rooj plaub, gearbox, ob chav winch, av nkos twj tso kua mis, turntable, drilling ntauwd, pub system yog teem rau ntawm lub chassis.
Nws yog hydraulicrotary drilling rig nrog kev taw qhia ncig. Nws tuaj yeem nruab nrog cov av nkos uas siv cov slurry li cov kua ntxhua thiab tuaj yeem laum ntawm av nplaum, xuab zeb thiab pob zeb yog tias nws tau nruab nrog qhov tsim nyog drilling me ntsis.
Lub zog ntawm portable hydraulic dej zoo drilling rig los ntawm lub cav Yuchai 9lkw tsav qhov loj hloov siab siab plunger twj tso kua mis thiab nws yog charaeterized los ntawm haib dynamic thiab ruaj khov kev ua tau zoo.
Lub zog rub tuaj yeem tswj tau thiab tswj tau, uas hloov lub tshuab kom tob qhov drilling.
Puv Hydraulic Sab saum toj Tsav Dej Drilling Rig tuaj yeem teeb tsa lub tshuab hluav taws xob uas yooj yim rau vuam lossis teeb pom kev ua haujlwm hmo ntuj.
Lub ntsiab winch yog muaj nyob rau ntawm lub rig yog li nws yog high efficiency thaum lub rig laum ntawm av nkos pob zeb thiab nyob rau hauv huab cua tsim.
Lub ntsiab tsav ntawm rig yog hydraulic thiab plaub tsaws ceg thiab drilling ntauwd yog hydraulic tswj. Hloov cov ntaub ntawv thiab av nkos twj clutch system kuj tseem ua haujlwm hydraulic.
Lub Hydraulic auxiliary functions yog ib qho yooj yim thiab muaj txiaj ntsig rau kev qhia txuas ntxiv, boom viav vias, boom nqa, qhia kev pov tseg.
Shipping & Them Nyiaj
Txhua daim ntawm Miningwell cov cuab yeej thiab cov khoom siv drilling tau dhau los ua kev kuaj xyuas kev nyab xeeb kom ruaj ntseg ntawm cov khoom thauj hauv lub thawv.
Peb txoj kev them nyiaj: credit card, L / C, T / T, Western Union, thiab peb txhawb nqa shipping los ntawm huab cua thiab hiav txwv.
