Product Overview

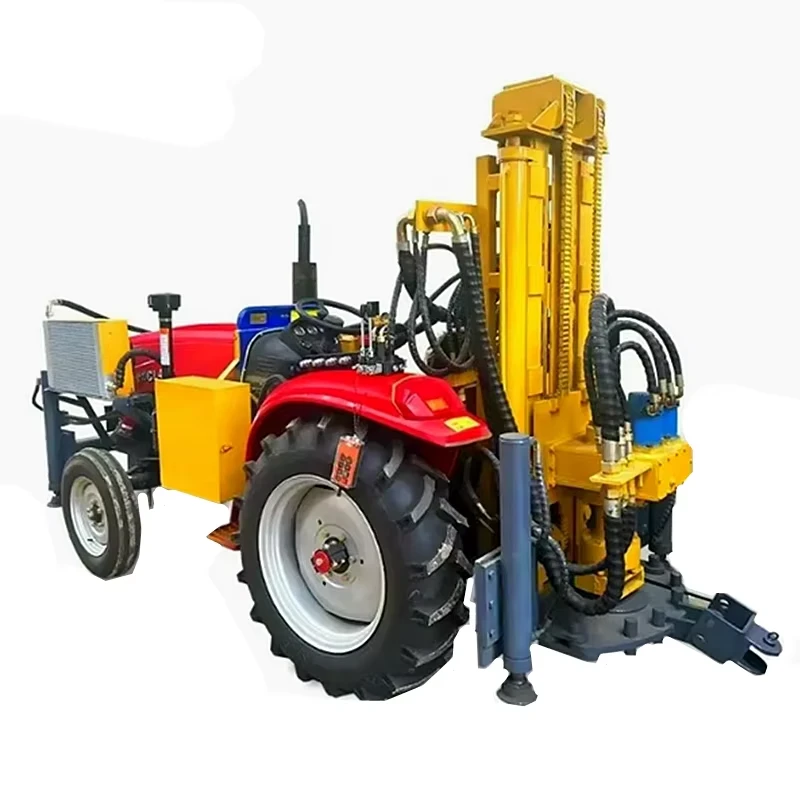

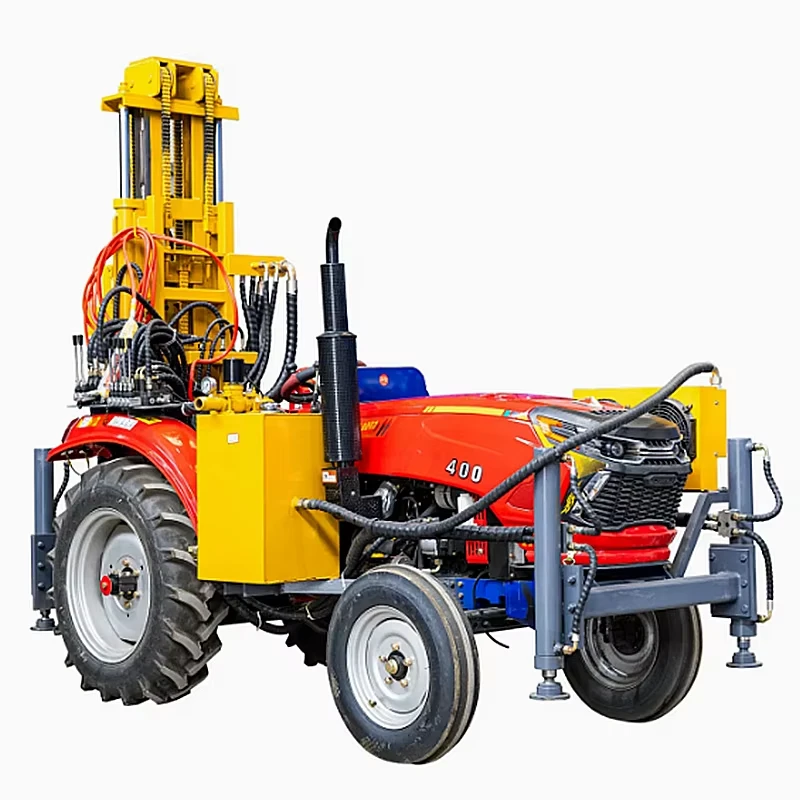

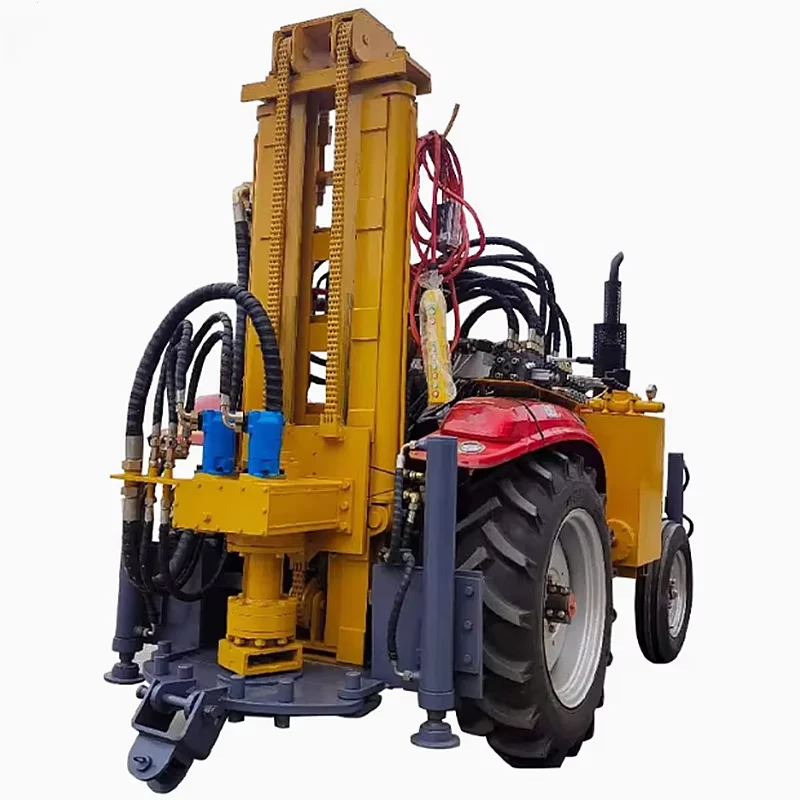

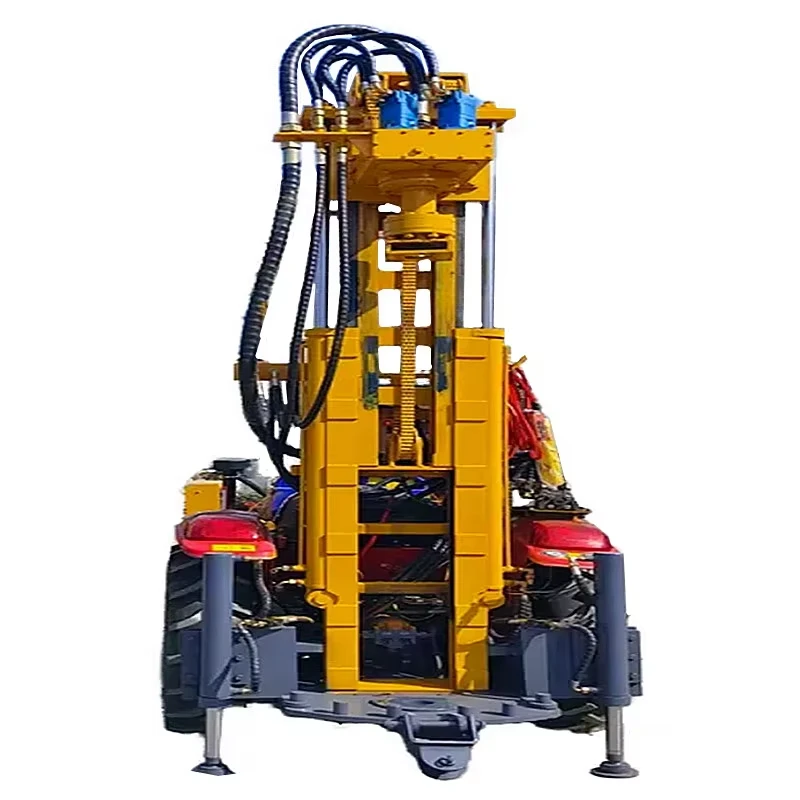

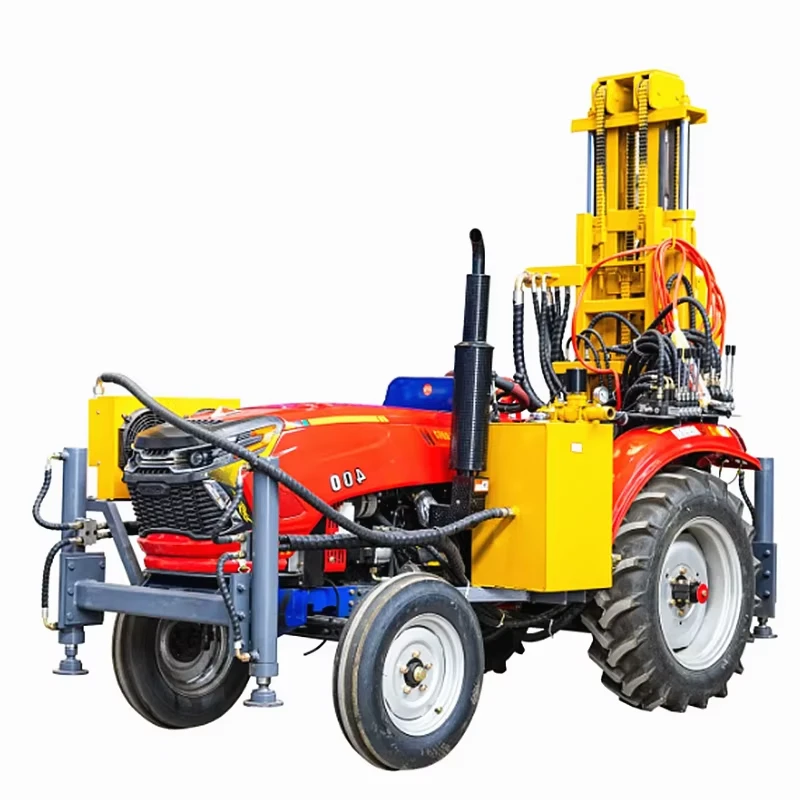

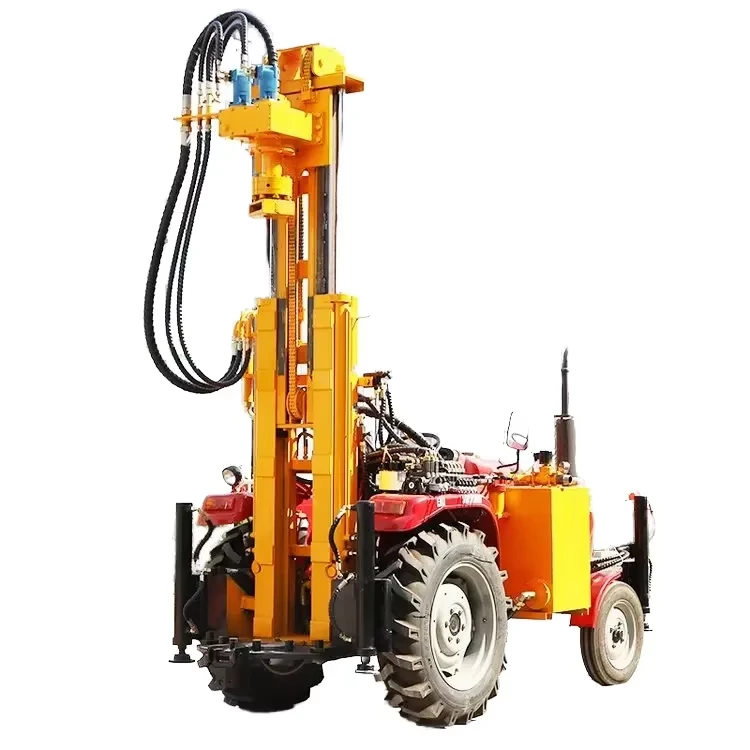

Qhov notsheb laij teb-mounted pneumatic dej zoo drilling rigyog tsim los rausiab -kev ua tau zoo drilling hauv complex geological tej yam kev mob, tshwj xeeb hauvthaj chaw roob, pob zeb tawv txheej, pob zeb, thiab cobble formations.
Los ntawm kev sib xyawCua DTH rauj drillingthiabrotary dej drilling, lub tshuab no overcomes cov kev txwv ntawm ib txwm rotary rigs nyob rau hauv lub pob zeb nyuaj thiab inefficiency ntawm huab cua rauj drilling nyob rau hauv cov av txheej.- ib qho kev sib tw sib tham nyob rau hauv 【Huab Cua Drilling Vs Dej Drilling: Yuav Ua Li Cas Xaiv Txoj Kev Zoo Rau Cov Pob Zeb Nyuaj Thiab Sib xyaw】 thaum xaiv txoj kev drilling rau cov txheej txheem nyuaj.
Hauv kev ua haujlwm tiag tiag, nws qhov kev ua haujlwm drilling tuaj yeem ncav cuagmus txog 10 npaug ntawm cov pa rotary drilling rigs, txo qhov drilling lub sij hawm thiab tag nrho cov nqi ntawm qhov project.
Nws yog ib qho kev daws teeb meem zoo tshaj plaws rau cov neeg siv nrhiavKev nkag mus sai, kev ua haujlwm ruaj khov, thiab cov nqi khiav haujlwm tsawgnyob rau hauv dej zoo thiab irrigation tej yaam num.
Daim ntawv thov
Qhov dej tob tob drilling
Agricultural irrigation qhov dej
Geothermal tshav kub twj tso kua mis borehole
Roob dej extraction tej yaam num
Hard pob zeb, gravel, thiab cobble txheej drilling
Tshwj xeeb tshaj yog haum rau thaj chaw uastsoos rotary drilling nyuajthiabhuab cua DTH rauj drilling tsis nyob rau hauv cov av txheej.
Qhov zoo
Kev sib tw kom zoo dua
Lub tuam txhab tau ua qhov kev sib tw kom zoo dua los txheeb xyuas nws qhov zoo thiab qhov tsis muaj zog piv rau nws cov neeg sib tw.
1. Mechanical Main Drive nrog Hydraulic Assistance
Lub rig adopts amechanically tsav lub ntsiab system, nrog hydraulic zog siv tsuas yog qhov tsim nyog.
Qhov kev tsim no zoo txo cov hluav taws xob poob, txo cov roj noj, thiab txo cov nqi drilling.
01
2. Dav ceev ntau yam & High Torque tso zis
- Ntau theem rau pem hauv ntej ceev
- Ntau yam ceev:14-500 rpm
- Cov zis torque:250–13,428 N·m
Qhov no tso cai rau cov neeg ua haujlwm tau yooj yim kho qhov ntsuas qhov ntsuas raucov av mos, tawv pob zeb, thiab sib xyaw ua ke.
02
3. Dual Reverse Speed Tshem Tawm Thaum Muaj Xwm Ceev
Nruab nrogob lub zog rov qab, ua rau nws yooj yim dua los tuav cov cuab yeej laum daig, qhov xwm txheej tawg, lossis cov xwm txheej hauv av tsis xav txog.
03
4. Ntev-Stroke Dual-Speed Power Head
- Lub cev muaj zog stroke:3 800 mm
- Ntev stroke tsim txo:
- Kev tuav pas nrig
- Drill yeeb nkab thaiv
- Hlawv thiab hnav tsis zoo
Qhov no ncaj qha txhim kho drilling efficiency thiab kev nyab xeeb kev ua haujlwm.
04
5. Dual Roj Pump Hydraulic System
- Ib lub twj tso kua mis thaum lub sijhawm drilling
- Dual twj tso kua mis ntws sib koom ua ke thaum nqa thiab txo qis
Qhov kev txawj ntse no txo qis lub zog poob, txo lub sijhawm ua haujlwm pabcuam, thiab txhim kho kev ua haujlwm tag nrho.
05
6. Tus neeg siv- Tus phooj ywg tus qauv & Kev saib xyuas yooj yim
Advanced structural layout nrog:
- Nthuav qhov chaw nyob
- Ib qho yooj yim nkag mus rau kev tshuaj xyuas thiab tu
- Txo cov nqi siv sijhawm ntev -
Zoo tagnrho rau cov neeg siv txawv teb chaws thiab kev saib xyuas thaj chaw.
06
7. Crawler Chassis nrog Ntev -Stroke Outriggers
- Crawler -mounted chassis kom muaj zog struts adaptability
- Outrigger lub tog raj kheej stroke:1.5 m
- Tsis siv neeg thauj khoom rau kev thauj mus los yooj yim dua
Kev ua haujlwm ruaj khov txawm nyob rau ntawm qhov chaw siab thiab tsis sib xws.
07
8. Expandable Hydraulic Interfaces
Lub kaw lus hydraulic khaws ntau qhov chaw nres nkoj ua haujlwm, tso cai rau:
- Kev cai configuration
- Kev sib xyaw ua ke ntawm cov khoom siv ntxiv
- Kev hloov kho yav tom ntej raws li cov neeg siv xav tau
08
Configuration Options
Qhov notsheb laij teb-mounted pneumatic dej zoo drilling rigtuaj yeem configured nrog:
Sib txawv horsepower tsheb laij teb chassis
Ntau yam cuab yeej drilling thiab laum cov kav dej
Cua compressors
Down -lub - qhov (DTH) rauj
Cua pipelines
Tag nrho cov configurations tuaj yeem kho raws li qhov project xav tau.
Technical Specifications
| Parameter | Specification |
|---|---|
| Drilling Diameter | 130–219 mm |
| Max Drilling qhov tob | 200 m |
| Ib Leeg Ua Ntej Ntev | 1500 hli |
| Taug kev ceev | 30 km / h |
| Climbing peev xwm | 25 degree |
| Min Av Clearance | 250 hli |
| Ua Haujlwm Cua Siab | 1.45-2.5 MPa |
| Kev siv cua | 15-27 m³ / min |
| Main Cav Fais Fab | 30 hp ib |
| Kev sib hloov ceev | 38-80 rpm |
| Rotary Torque | 3500–4000 N·m |
| Zuag qhia tag nrho Dimensions | 3400 × 1500 × 2200 hli |
| Qhov hnyav | 3500 kg ib |
Zoo tagnrho rau Kev Lag Luam Thoob Ntiaj Teb
Qhov no drilling rig yog dav siv nyob rau hauv:
- Teb chaws Africa
- Southeast Asia
- Middle East
- South America
- Cov cheeb tsam roob siab thoob plaws ntiaj teb
Seb rautus neeg cog luslos yogloj - cov dej num loj, qhov rig no muab kev ua haujlwm ruaj khov thiab rov qab los ntawm kev nqis peev.
