Vim li cas thiaj xaiv 300m Dej Drilling Rig
Raws li cov dej hauv av tseem poob qis hauv ntau thaj tsam, qhov dej tob dua 260-280m tau dhau los ua ntau dua. Rau cov ntawv thov no, 300m-chav kawm drilling rig muaj qhov zoo meej:
Ntxiv qhov tob peev xwm rau cov dej num mus sij hawm ntev
Muaj zog lifting quab yuam rau casing installation thiab sib sib zog nqus cuab tam tuav
Txhim kho rotary torque rau gravel txheej thiab weathered pob zeb
Kev ua haujlwm siab dua thaum lub sijhawm ua haujlwm txuas ntxiv

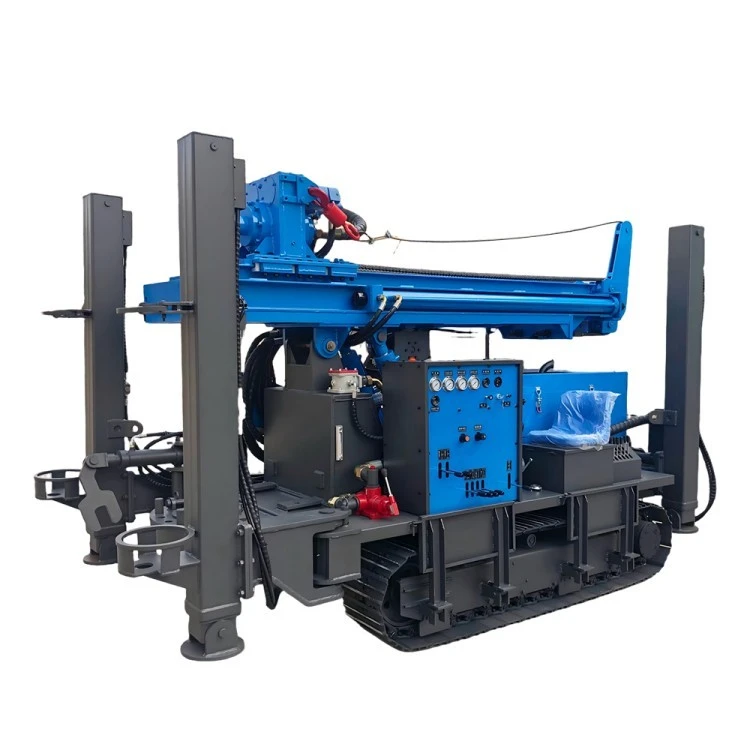

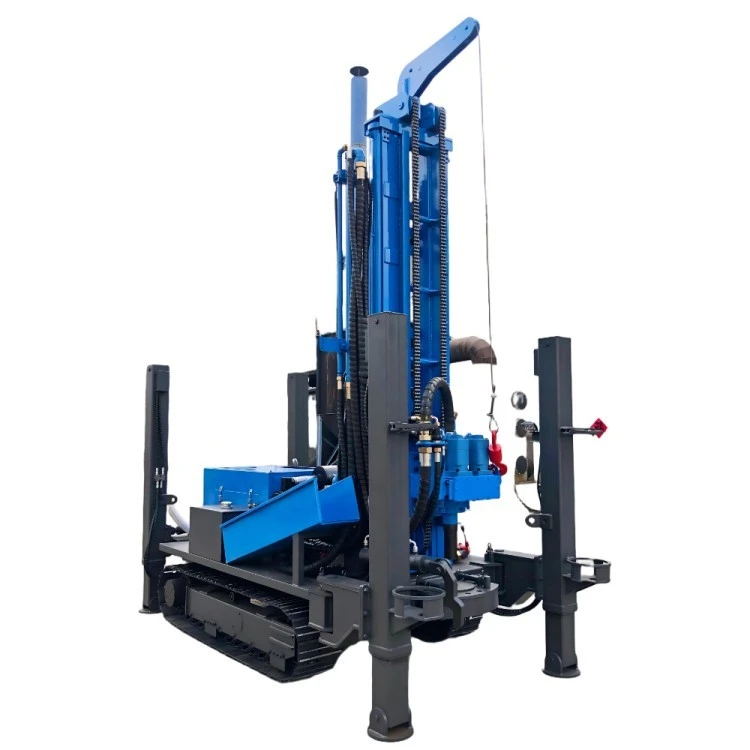

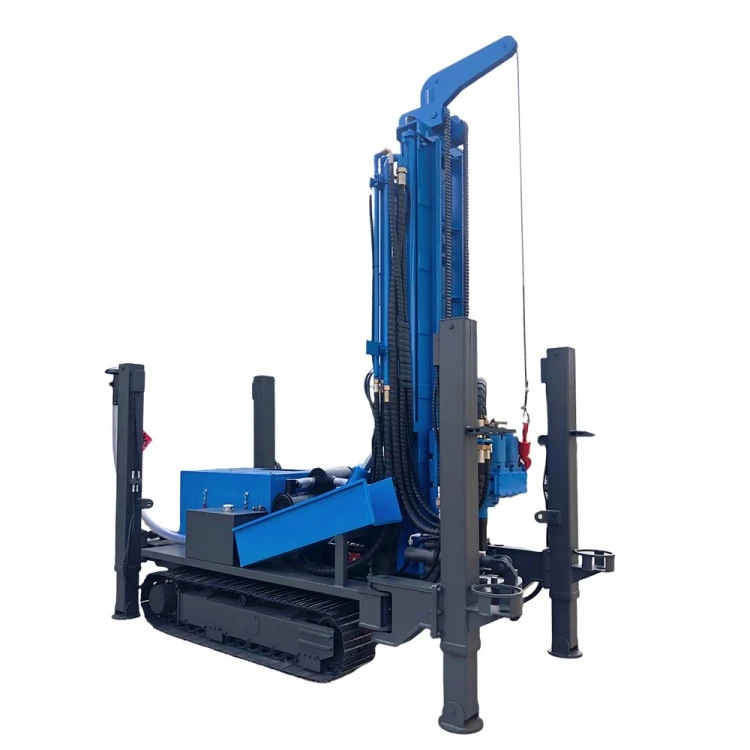

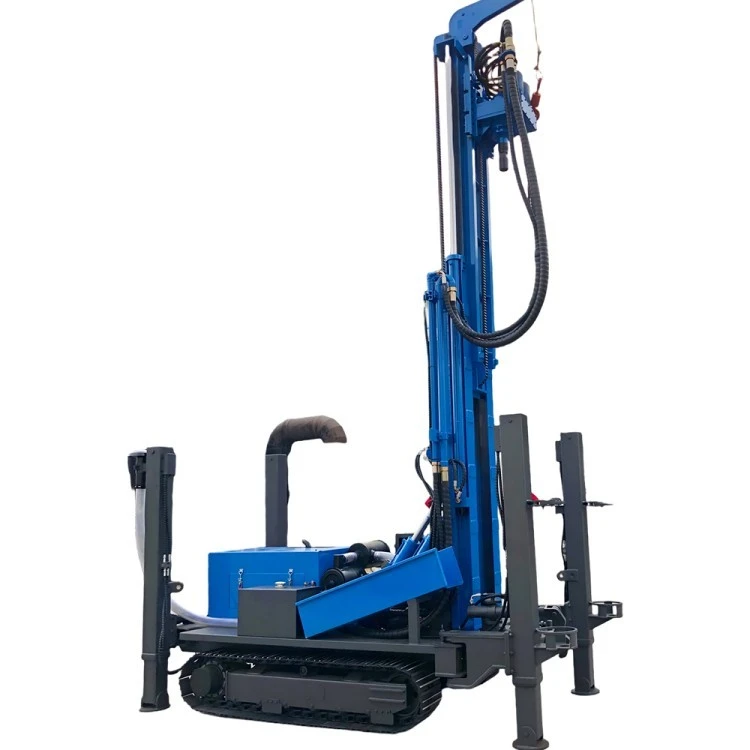

Lub SM300 Hydraulic Crawler Dej Drilling Rig yog tsim los ua kom tau raws li cov kev cai no thaum zam qhov loj thiab cov nqi ntawm cov khoom hnyav tob tob.
Ntsiab Technical Specifications
| SM300 Hydraulic Crawler Dej Drilling Rig | Specification |
|---|
| Drilling Qhov tob | 300 m |
| Lub qhov taub | 140-325 hli |
| Drill Pipe Diameter | Φ76 / Φ89 hli |
| Drill Pipe Length | 1.5 / 2.0 / 3.0 m |
| Ib Lub Sijhawm Ua Ntej Ntev | 3.6 m |
| Kev Ua Haujlwm Zoo | 15–35 m/h |
| Swing Ceev | 45-70 rpm |
| Swing Torque | 5,800–7,700 N·m |
| Rig Lifting Force | 18 T |
| Winch Lifting Force | 2 T |
| Ceev ceev ceev | 26m / min |
| Ceev ceev pub mis | 40m / min |
| Ua Haujlwm Cua Siab | 1.7-2.5 MPa |
| Kev siv cua | 17-31 m³ / min |
| Lub cav fais fab | hwj chim 85 kW |
| Taug kev ceev | 2.5 km / h |
| Climbing peev xwm | 30 degree |
| Chaw thau khoom dav | 2.7 m |
| Zuag qhia tag nrho Dimension | 4100 × 2000 × 2550 hli |
| Tshuab hnyav | 7.2 T |
Daim ntawv thov
SM300 Hydraulic Crawler Dej Drilling Rig yog tsim rau ntau yam haujlwm, suav nrog:
Agricultural irrigation qhov dejxav tau cov dej nruab nrab qhov tob ruaj khov
Nyob deb nroog thiab zej zog cov dej muab kev pab cuam
Kev tshawb nrhiav thiab kev txhim kho hauv av hauv nroog hauv nroog
Cov kws tshaj lij kev lag luam drillingua haujlwm thoob plaws ntau qhov chaw
Mixed av thiab pob zeb formations, xws li av nplaum, xuab zeb, gravel, thiab weathered pob zeb
Nws cov yam ntxwv ua tau zoo ua rau nws muaj kev xaiv txhim khu kev qha rau kev nruam drilling nyob rau hauv ntau yam geological tej yam kev mob.
Khoom Description
SM300 Hydraulic Crawler Dej Drilling Rig txhawb ntau txoj kev drilling, tso cai rau cov neeg ua haujlwm hloov pauv cov qauv:
Cua drilling nrog DTH rauj
Av nkos drilling nrog lwm cov av nkos twj tso kua mis
Cua- av nkos ua ke drilling
Lub rig yog sib xws nrog tus qauvΦ76 thiab Φ89 laum kav, xyuas kom yooj yim nrhiav khoom siv thiab txo cov nqi khiav lag luam.
Quality Control & Manufacturing Assurance
Factory Quality System
ISO-based kev tswj hwm zoo
Kev tshuaj xyuas nruj ntawm cov khoom siv raw thiab cov khoom tseem ceeb
Machining & Manufacturing txheej txheem
CNC machining rau lub taub hau teb, mast, thiab core structural Cheebtsam
Precision tswj los xyuas kom meej lub zog thiab kev sib raug zoo raug
Assembly Quality Management
Cov txheej txheem sib dhos Standardized
Hydraulic, mechanical, thiab hluav taws xob soj ntsuam ntawm txhua theem
Lub Hoobkas kuaj
Kev ua haujlwm ntawm kev sib hloov, pub mis, nqa, thiab taug kev tshuab
Load thiab tsis-load kuaj ua ntej xa zaub mov
Kev tshuaj xyuas thib peb
Kev tshuaj xyuas thib peb muaj nyob ntawm kev thov (SGS / BV / [kom paub tseeb])
Customization Muaj peev xwm
Customizable Configuration Options
Hydraulic yeeb nkab clamp system
Qhib & kaw lub hwj chim teb lub taub hau
Mud twj tso kua mis system
Plua plav collector system
Drill yeeb nkab ntev thiab cov cuab yeej ua ke
Tswj system layout thiab auxiliary khoom
Kev Pabcuam Pabcuam Engineering
Kev paub txog cov khoom siv drilling engineers
Daim ntawv thov-raws li kev pom zoo configuration
Customization txheej txheem
Qhov kev xav tau ntawm qhov project
Configuration proposal thiab kev pom zoo
Engineering tsim thiab validation
Kev tsim khoom thiab kev sib dhos
Kev kuaj thiab xa khoom
Pov thawj ntawm Kev Cai Muaj Peev Xwm
Kev Pabcuam Tomqab Muag & Kev Pabcuam Kev Pabcuam
Kev Pabcuam Scope
Installation qhia thiab commissioning txhawb
Tej thaj chaw deb teeb meem thiab kev sab laj kev
Kev Txhawb Kev Muaj Peev Xwm
Cov ntaub ntawv ua haujlwm thiab cov ntaub ntawv kho mob
Video-based technical support
Khoom Muag Khoom
Lub sij hawm ntev muab cov khoom hnav thiab cov khoom tseem ceeb
Txheem qhov chaw rau kev xa khoom sai thoob ntiaj teb
Kev cob qhia & Kev taw qhia
Kev cob qhia tus neeg ua haujlwm hauv online lossis ntawm qhov chaw
Kev saib xyuas thiab kev cob qhia txhua hnub
Related Guides & Internal Resources
Xaus
CovSM300 Hydraulic Crawler Dej Drilling Rigsawv cev rau kev txhim khu kev qha thiab kev daws teeb meem rau cov neeg cog lus ua haujlwm hauv lub300m nruab nrab-qhov tob drilling ntu. Nrog muaj zog lifting muaj peev xwm, siab dua rotary torque, thiab ruaj khov hydraulic kev ua tau zoo, nws ua tau raws li qhov xav tau ntawm cov dej hauv av niaj hnub no thaum tswj kev ua haujlwm thiab kev ua haujlwm zoo.
Rau cov tuam txhab drilling nrhiav lub tshuab pov thawj uas muaj peev xwm tuav cov haujlwm sib sib zog nqus thiab ntau dua, SM300 muajbalanced, yav tom ntej npaj drilling tov.
