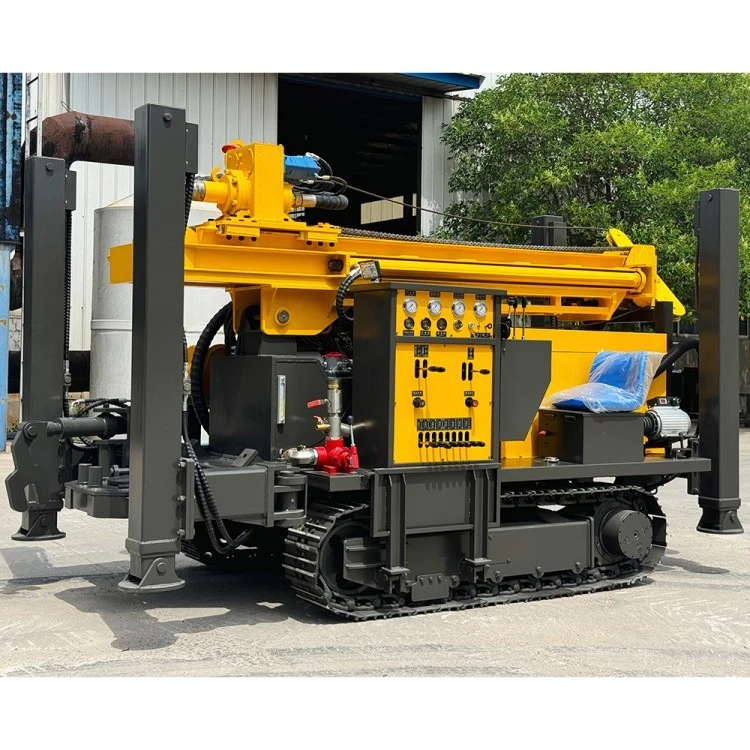

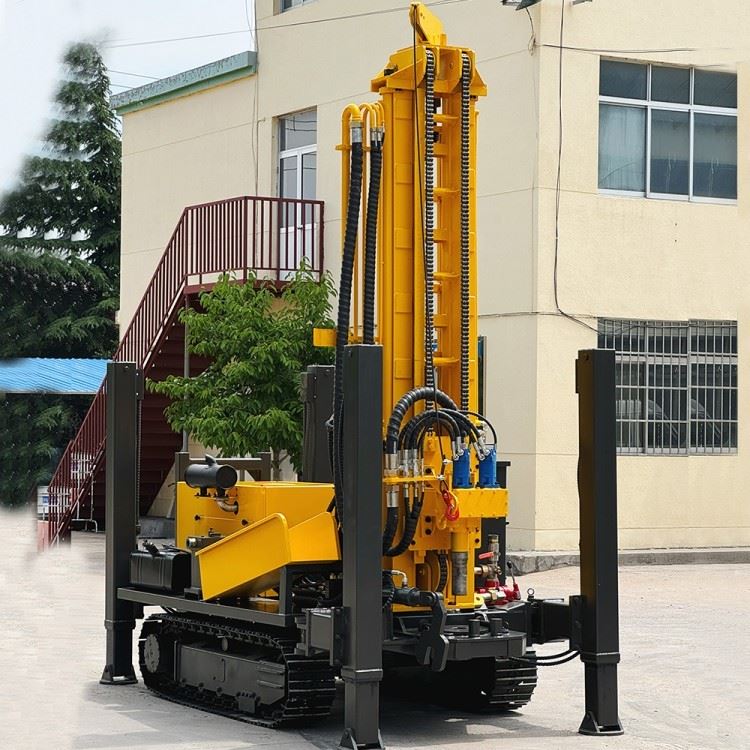

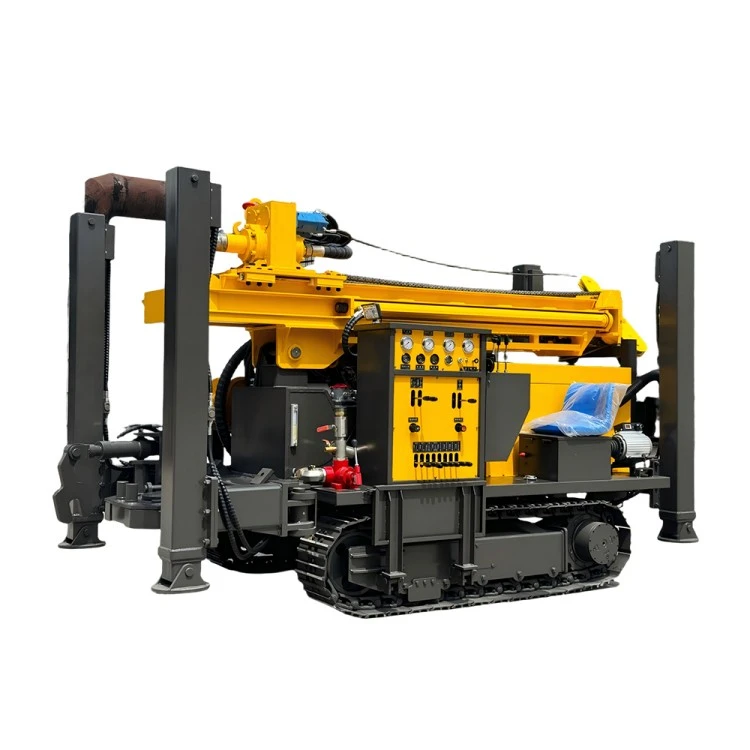

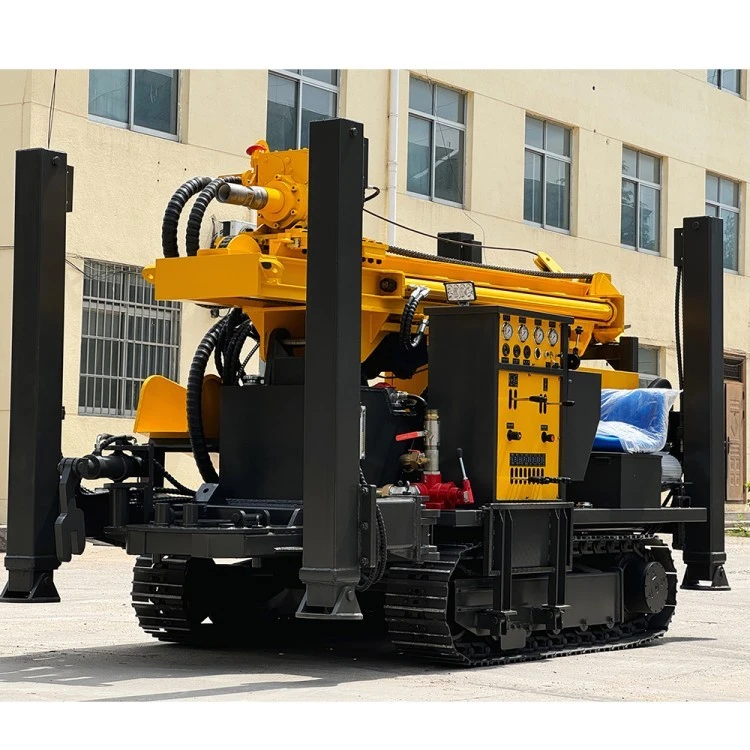

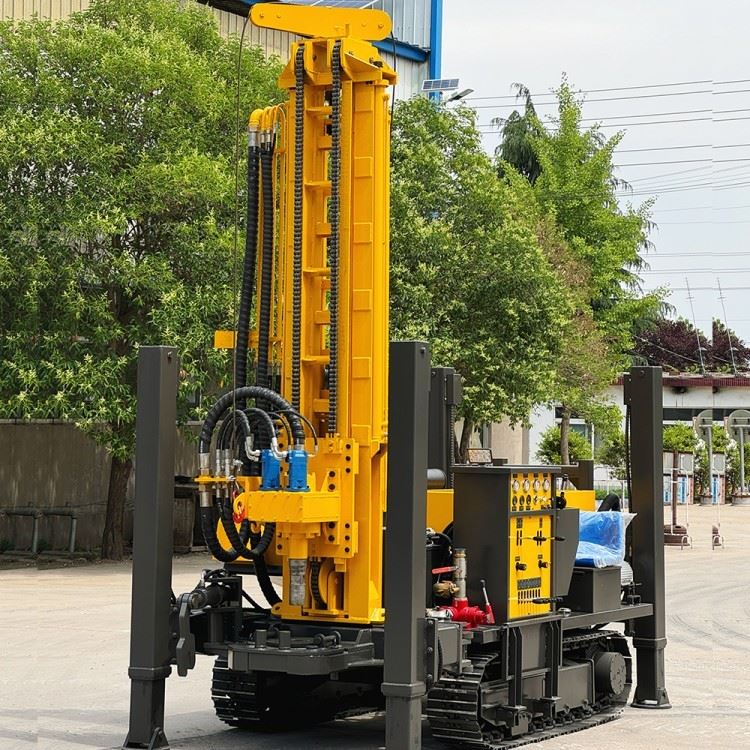

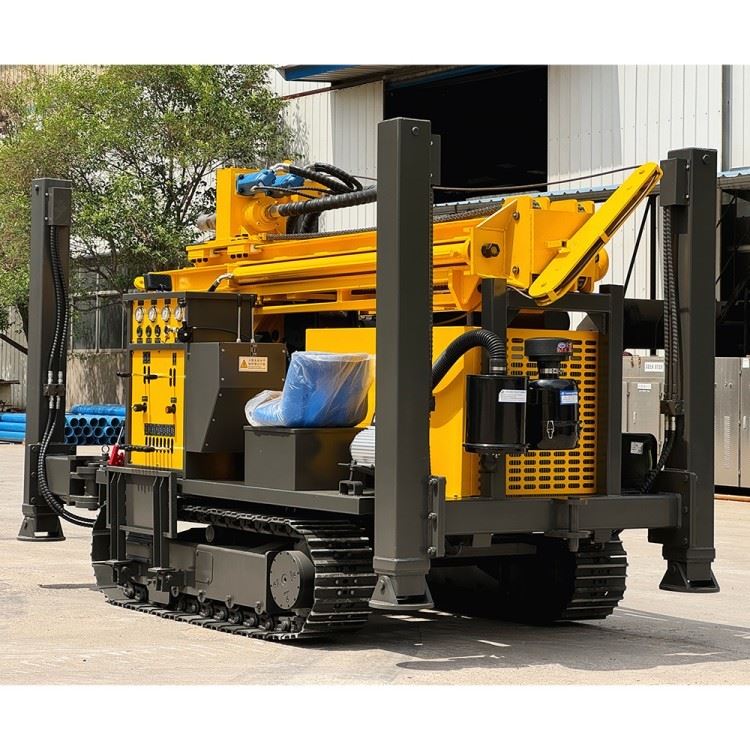

SM260 Crawler Dej Drilling Rig - 260m Hydraulic Drilling Tshuab
CovSM260 crawler dej zoo drilling rigyog tus kws tshaj lij260m hydraulic drilling tshuabtsim los rau cov dej nyob deb nroog, kev ua liaj ua teb, thiab me me - mus rau - cov dej hauv nruab nrab ua lag luam. Ua ntawm ibsteel crawler chassisthiab powered by a76 kW diesel cav, SM260 muab qhov zoo sib npaug ntawm kev ua haujlwm drilling, txav mus los, thiab tus nqi khiav haujlwm.
Cov qauv no tshwj xeeb tshaj yog tsim rau cov neeg ua haujlwm drilling uas xav tau atxhim khu kev qha, yooj yim -rau- tuav dej zoo drilling rigmuaj peev xwm ua haujlwm zoo hauv av nplaum, xuab zeb, gravel, limestone, thiab sib xyaw geological formations.
1500+
cov tswv cuab nquag
10+
xyoo kev
125+
xwm txheej & kev sib tw
12+
cov kws qhia ntawv
Qhov zoo
Qhov zoo ntawm SM260 Dej Drilling Rig:
- Qhov siab tshaj plaws drilling qhov tob mus txog260 m siab
- Hlau crawler chassisrau muaj zog struts adaptability
- Siab torque (4200-5500 N·m)rau nruab nrab - nyuaj formations
- Txhawb nqahuab cua drilling, av nkos drilling, thiab DTH rauj drilling
- Compact me me rau kev thauj mus los yooj yim thiab chaw nyob deb nroog
- Tus nqi -kev daws teeb meem zoo rau cov neeg ua haujlwm me me thiab nruab nrab drilling
Technical Specifications
| Yam khoom | Specification |
|---|
| Qhov hnyav tag nrho | 6 T |
| Lub cav fais fab | Quanchai Diesel Cav - 76 kW |
| Drilling Qhov tob | 260 m |
| Lub qhov taub | 140-305 hli |
| Drill Pipe Diameter | Φ76 / Φ89 hli |
| Drill Pipe Length | 1.5 / 2.0 / 3.0 m |
| Ib -Lub Sijhawm Pub Noj Mob stroke | 3.6 m |
| Kev Ua Haujlwm Zoo | 10–35 m/h |
| Rotary ceev | 45-70 rpm |
| Rotary Torque | 4,200–5,500 N·m |
| Rig Lifting Force | 15 T |
| Winch Lifting Force | 1.5 T |
| Ceev ceev pub mis | 40m / min |
| Kev nrawm nrawm nrawm | 24 m / min |
| Ua Haujlwm Cua Siab | 1.7-2.5 MPa |
| Kev siv cua | 17-31 m³ / min |
| Taug kev ceev | 2.5 km / h |
| Max. Climbing Angle | 30 degree |
| Chaw thau khoom dav | 2.4 m |
| Zuag qhia tag nrho Dimensions | 4000 × 1800 × 2250 hli |
Tsis paub tseeb tias SM260 haum rau koj qhov project? Nyeem peb phau ntawv qhia:
Yuav Ua Li Cas Xaiv Ib 200-300m Dej Drilling Rig
Daim ntawv thov
Lub SM260 hydraulic crawler drilling rig yog dav siv hauv:
Dej Drilling
- Nyob deb nroog thiab lub zos cov dej haus
- Cov dej num hauv tsev
- Community water infrastructure tej yaam num
Agricultural Irrigation
- Ua liaj ua teb irrigation qhov dej
- Orchard thiab plantation water systems
Kev tsim kho & Engineering
- Me me hauv paus borehole
- Geological tshawb fawb drilling
- Utility installation tej yaam num
Tsim nyog Geological Formations
- Av nplaum thiab av txheej
- Xuab zeb thiab gravel formations
- Limestone
- Nruab nrab- pob zeb nyuaj thiab sib xyaw ua ke
SM260 yogtsis yog tsim rau ultra- qhov dej muaj qhov tob tshaj 300m, uas pab cov neeg cog lus xaiv cov cuab yeej tsim nyog rau lawv qhov projectnplai.
Yuav siv tau rau ntau yam kev lag luam.
Kev Tswjhwm Zoo & Kev Tsim Khoom
Actory Quality System
Manufactured nyob rau hauvISO cov qauv kev tswj xyuas zoo, txhua SM260 drilling rig ua raws li cov txheej txheem tshuaj xyuas thiab cov ntaub ntawv txheej txheem.
Machining & Manufacturing
- CNC machining rau cov txheej txheem tseem ceeb
- Kev tswj nruj nruj rau lub taub hau thiab cov mast
- Txheem vuam txheej txheem
Assembly Quality Management
- Hydraulic siab thiab xau kuaj
- Alignment thiab verticality soj ntsuam
- Hluav taws xob thiab kev tswj xyuas qhov system
Lub Hoobkas kuaj ua ntej xa khoom
- Tsis muaj -load thiab puv - thauj khoom ua haujlwm kuaj
- Drilling simulation xeem
- Taug kev, nce toj, thiab kev ntsuas kev ruaj ntseg
Thib peb-Kev soj ntsuam tog
Txhawb rauSGS / BV / TUVkev tshuaj xyuas thaum thov.
Kev kho kom haum
Customizable Scope
Cav hom thiab lub zog xaiv (yuchai & quanchai)
Rotary taub hau torque configuration
Drill yeeb nkab txoj kab uas hla thiab ntev
Cov txheej txheem xaiv tau: cov av nkos, cov khoom siv plua plav, cov pas tuav, qhib- kaw lub taub hau
Pab Pawg Engineering
Mechanical engineers: ob tug neeg
Hydraulic engineers: ob tug neeg
Hluav taws xob & tswj engineers: ob tug neeg
Customization txheej txheem
Qhov kev xav tau ntawm qhov project
Kev ntsuam xyuas geological
Cov tswv yim daws teeb meem
Configuration paub meej
Kev tsim khoom thiab kev sim
Kev xa khoom thiab kev xa khoom
Customization pov thawj
Customized SM260 units muab rau thoob ntiaj teb
OEM branding txhawb rau distributors
Tom qab -Kev Pabcuam Muag & Kev Pabcuam Kev Pabcuam
Kev Pabcuam Scope
- Lub sijhawm lav: 12-18 lub hlis
- Kev pab daws teeb meem online
- Video -raws li kev qhia txog kev saib xyuas
Kev Txhawb Kev Muaj Peev Xwm
- Ua ntej- kev sib tham txog kev muag khoom drilling
- Tej thaj chaw deb kev pab
- Cov lus qhia ntxaws txog kev ua haujlwm thiab kev saib xyuas
Khoom Muag Khoom
- Ntev -lub sij hawm spare qhov chaw muaj
- Kev xa khoom sai sai rau cov khoom siv sib xws
Installation & Kev cob qhia
- Kev taw qhia kev teeb tsa online
- Kev cob qhia cov neeg ua haujlwm video
- Kho cov ntaub ntawv kev cob qhia
FAQ
Q1: Dab tsi yog qhov siab tshaj plaws drilling qhov tob ntawm SM260?
A: SM260 yog tsim los rau cov dej ntws mus txog260 m siab, nyob ntawm geological tej yam kev mob.
Q2: SM260 puas tuaj yeem xyaum cov pob zeb nyuaj?
A: Yog. Nrog lub rotary torque txog li5,500 N·m, nws ua tau zoo nyob rau hauv limestone thiab nruab nrab - hard pob zeb formations.
Q3: Dab tsi drilling txoj kev txhawb nqa?
A: Cua drilling, av nkos teb drilling, thiab DTH rauj drilling.
Q4: Puas yog SM260 haum rau roob toj roob hauv pes?
A: Yog. Cov hlau crawler chassis thiab 30℃nce toj muaj peev xwm tso cai rau kev ua haujlwm ntawm qhov tsis sib xws.
