Product Overview

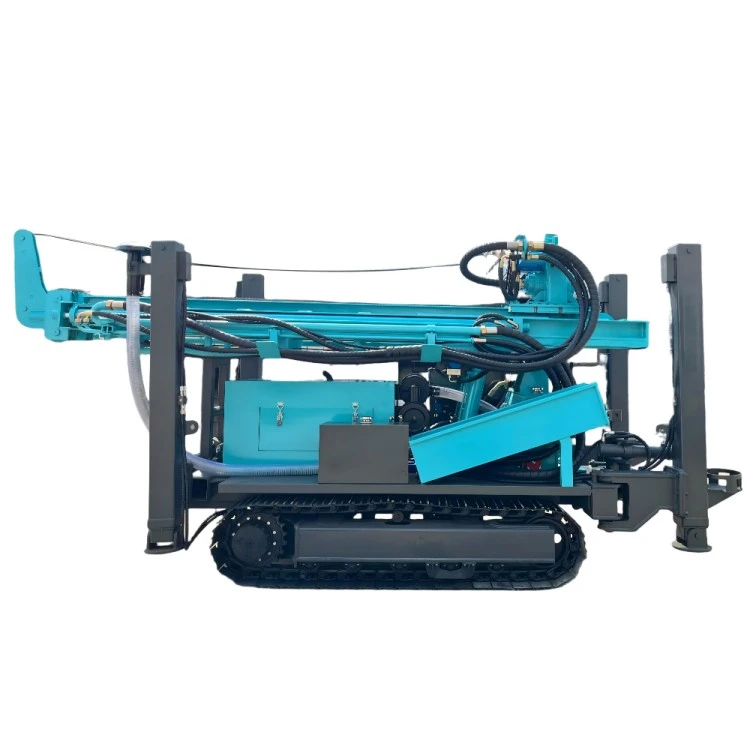

CovSM280 Hydraulic Crawler Dej Drilling Rigyog aseamless upgrade ntawm SM260 qauv, tsim rau cov neeg cog lus uas xav tauntau dua drilling qhov tob, muaj zog lifting peev, thiab siab dua torqueyam tsis muaj kev cuam tshuam kev txav mus los lossis kev tswj xyuas tus nqi.
Positioned hauv250-300m dej zoo drilling ntu, SM280 yog qhov zoo tagnrho rau cov neeg siv uas twb tau ua haujlwm nrog 200-260m rigs thiab tam sim no ntsibntau complex geological tej yam kev mob, thicker overburden khaubncaws sab nraud povtseg, los yog tej yaam num yuav tsum tau ntxaum thiab ruaj khov boreholes.
Ua rau ntawm qhov pov thawj SM260 platform, SM280 muab cov qauv tsim muaj zog, kev ua haujlwm zoo hydraulic, thiab kev teeb tsa dav dua, ua rau nws muaj kev txhim khu kev qha raukev ua liaj ua teb, dej hauv nroog, cov dej num hauv nroog, thiab cov neeg cog lus-cov kev pabcuam drilling.
Vim li cas Hloov Kho ntawm SM260 rau SM280
Piv nrog SM260, SM280 drilling rig muaj:
Extended drilling qhov tobib: 260m280m, npog ntau yam ntawm cov dej hauv av
Siab zog lifting: txhim kho lub ntsiab rig lifting muaj peev xwm rau kev ua haujlwm sib sib zog nqus
Muaj zog rotary torque: kev ua tau zoo dua hauv pob zeb, pob zeb huab cua, thiab kev sib xyaw ua ke
Ntev dua ib -lub sij hawm pub stroke: txhim kho drilling efficiency thiab txo cov yeeb nkab tuav lub sij hawm
Zoo dua adaptabilitymus rau nruab nrab thiab siab cua siab DTH drilling tshuab
Qhov no ua rau SM280 qhov kev xaiv zoo tshaj plaws rau cov neeg cog lus nrhiavmuaj peev xwm ntau dua thiab yav tom ntej - muaj peev xwm pov thawjthaum muaj kev paub txog kev khiav haujlwm.
Ntsiab Technical Specifications
| Yam khoom | Specification |
|---|
| Drilling Qhov tob | 280 m |
| Lub qhov taub | 140-305 hli |
| Drill Pipe Diameter | Φ76 / Φ89 hli |
| Drill Pipe Length | 1.5 m / 2.0 m / 3.0 m |
| Ib - Sijhawm Ua Ntej Ntev | 6.6 m |
| Kev Ua Haujlwm Zoo | 15–35 m/h |
| Swing Ceev | 45-70 rpm |
| Swing Torque | 5,300–7,600 N·m |
| Rig Lifting Force | 17 T |
| Winch Lifting Force | 2 T |
| Ceev ceev ceev | 25m / min |
| Ceev ceev pub mis | 30m / min |
| Ua Haujlwm Cua Siab | 1.7-3.0MPa |
| Kev siv cua | 17-31 m³ / min |
| Nruab Rauj | Nruab Nrab & Huab Cua Siab DTH Series |
| Lub cav fais fab | hwj chim 85 kW |
| Taug kev ceev | 2.5 km / h |
| Climbing peev xwm | 30 degree |
| High Leg Stroke | 1.4 m |
| Chaw thau khoom dav | 2.7 m |
| Zuag qhia tag nrho Dimension | 5900 × 1850 × 2360 hli |
| Tshuab hnyav | 7.6 T |
Daim ntawv thov
SM280 crawler dej zoo drilling rig yog dav siv hauv:
Agricultural irrigation qhov dej(ua liaj ua teb, plantations, irrigation zones)
Cov dej num nyob deb nroog thiab zej zog
Kev tsim kho hauv nroog hauv av
Daim ntawv cog lus kev pabcuam drillingyuav tsum tau tsiv mus nyob tsis tu ncua
Mixed av thiab pob zeb formations, nrog rau av nplaum, xuab zeb, gravel, thiab weathered pob zeb
Nws qhov sib npaug tsim tso cai rau kev ua haujlwm zoo hauv ob qho tib siav nkos drillingthiabhuab cua DTH drillingkev ua haujlwm.
Quality Control & Manufacturing Assurance
Quality Control & Manufacturing Assurance
Quality Control & Manufacturing Assurance
Factory Quality System
ISO-raws li kev tswj hwm zoo
Kev tshuaj xyuas cov khoom nkag rau cov khoom tseem ceeb
Machining & Manufacturing
CNC machining rau core structural qhov chaw
nruj kam rau ua tswj ntawm lub taub hau teb thiab mast Cheebtsam
Kev Tswj Xyuas Kev Tswj Xyuas Zoo
Cov txheej txheem sib dhos Standardized
Hydraulic thiab mechanical system soj ntsuam ntawm txhua theem
Lub Hoobkas kuaj
Tsis muaj - thauj khoom thiab thauj khoom kuaj ua ntej xa khoom
Tag nrho -kev sim ua haujlwm ntawm kev sib hloov, pub mis, nqa, thiab kev taug kev
Thib peb-Kev soj ntsuam tog
Thib peb-kev tshuaj xyuas tog muaj raws li qhov kev thov (SGS / BV)
Kev kho kom haum
Peb qhov project tshiab
Customizable Options
Hydraulic yeeb nkab clamp system
Qhib & kaw lub hwj chim teb lub taub hau
Mud Pump configuration
Plua plav collector system
Drill yeeb nkab ntev thiab cov cuab yeej ua ke
Hluav taws xob system thiab tswj layout
Kev Pabcuam Pabcuam Engineering
Kev paub txog cov khoom siv drilling engineers
Daim ntawv thov -raws li cov lus pom zoo rau kev teeb tsa
Customization txheej txheem
Qhov kev xav tau ntawm qhov project
Configuration proposal & kev pom zoo
Engineering tsim thiab validation
Kev tsim khoom thiab kev sib dhos
Kev kuaj thiab xa khoom
Pov thawj ntawm Kev Cai Muaj Peev Xwm
Peb Cov Khoom
Tom qab -Kev Pabcuam Muag & Kev Pabcuam Kev Pabcuam
Kev Pabcuam
Kev taw qhia kev teeb tsa
Kev them nyiaj yug commissioning
Kev daws teeb meem nyob deb
Kev pab txhawb nqa
Cov ntawv qhia kev ua haujlwm thiab cov ntawv qhia kev saib xyuas
Video txhawb kev ua haujlwm thiab kev pabcuam
Khoom Muag Khoom
Ntev - lub sij hawm muab cov khoom hnav thiab cov khoom tseem ceeb
Txheem qhov chaw rau kev xa khoom sai thoob ntiaj teb
Kev txhawb nqa kev cob qhia
Hauv -qhov chaw lossis kev cob qhia tus neeg ua haujlwm hauv online
Kev saib xyuas thiab kev cob qhia txhua hnub
Xaus
CovSM280 Hydraulic Crawler Dej Drilling Rigyog lub ntuj thiab muaj txiaj ntsig hloov kho los ntawm SM260, muabmuaj peev xwm tob dua, muaj zog torque, thiab txhim kho efficiencyrau nruab nrab - qhov dej tob qhov dej num.
Rau cov neeg cog lus txhawm rau nthuav dav qhov project thaum tswj hwm tus nqi tswj thiab kev ntseeg tau ntawm kev ua haujlwm, SM280 muab ib qhobalanced, yav tom ntej -npaj drilling tov.
