Khoom nthuav dav
- Hom Lub Npe: D miningwell
- Yam tsawg kawg nkaus Order Quantity: 1 Set
- Ntim Cov Lus Qhia: 40HQ-20GP
- Lub sij hawm xa tuaj: 15-20 Hnub
- Cov nqe lus them nqi: L / C, T / T, Western Union

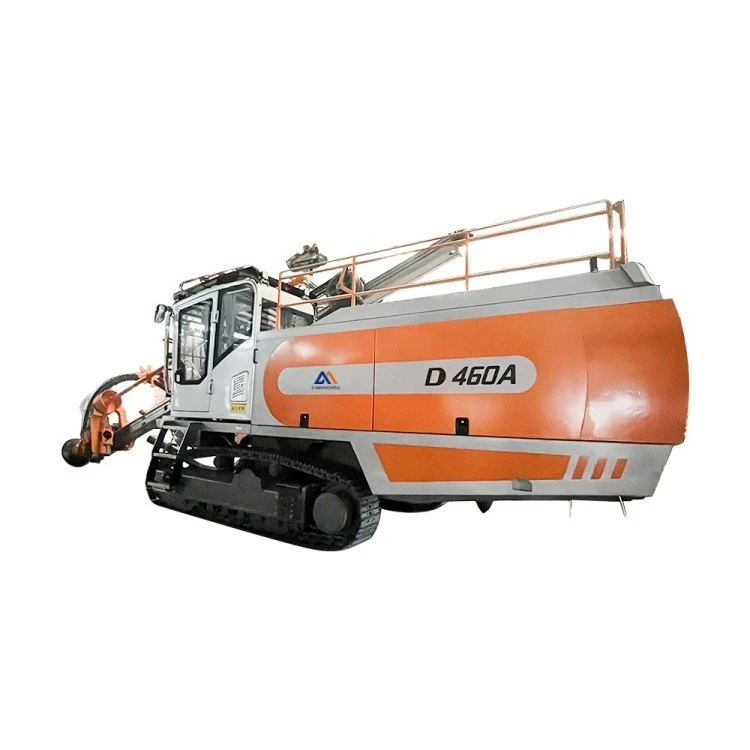

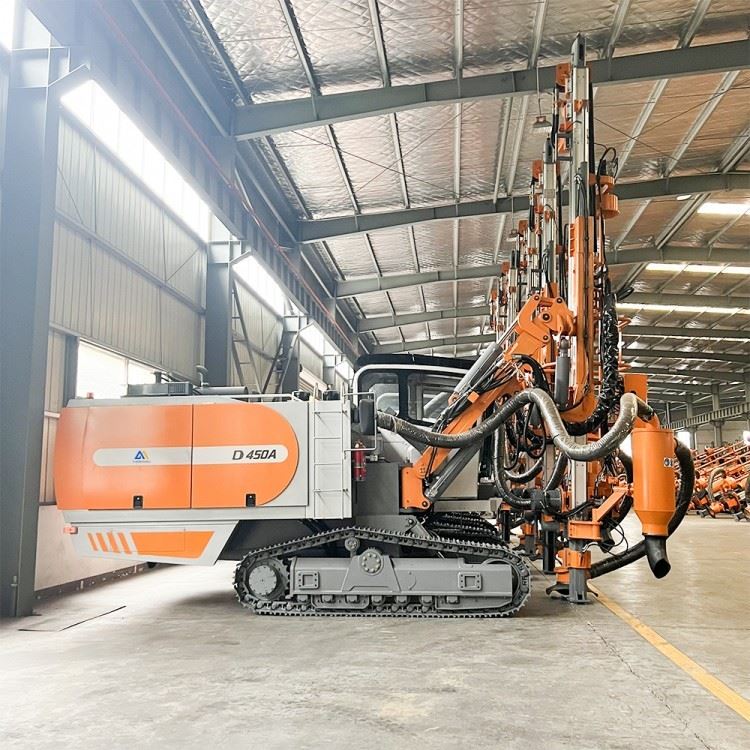

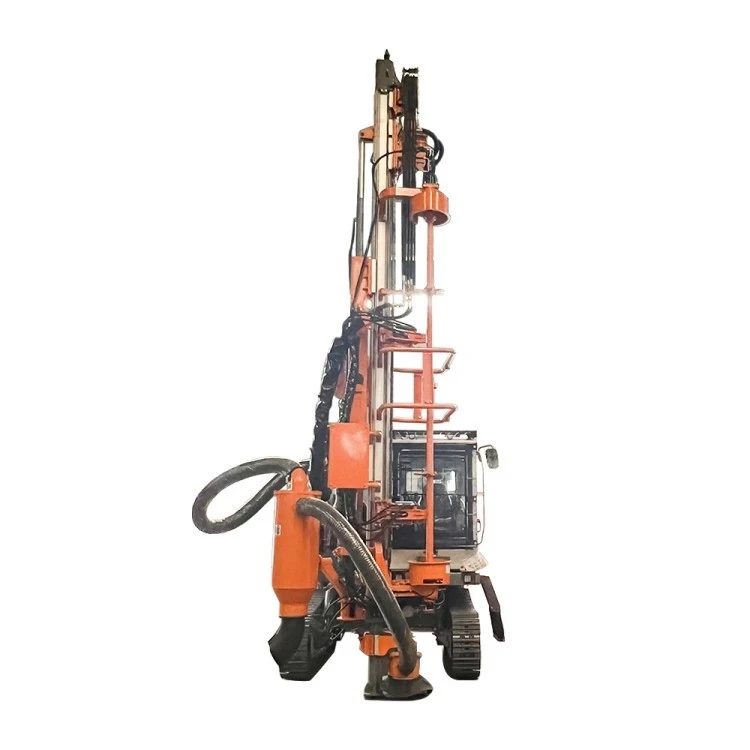

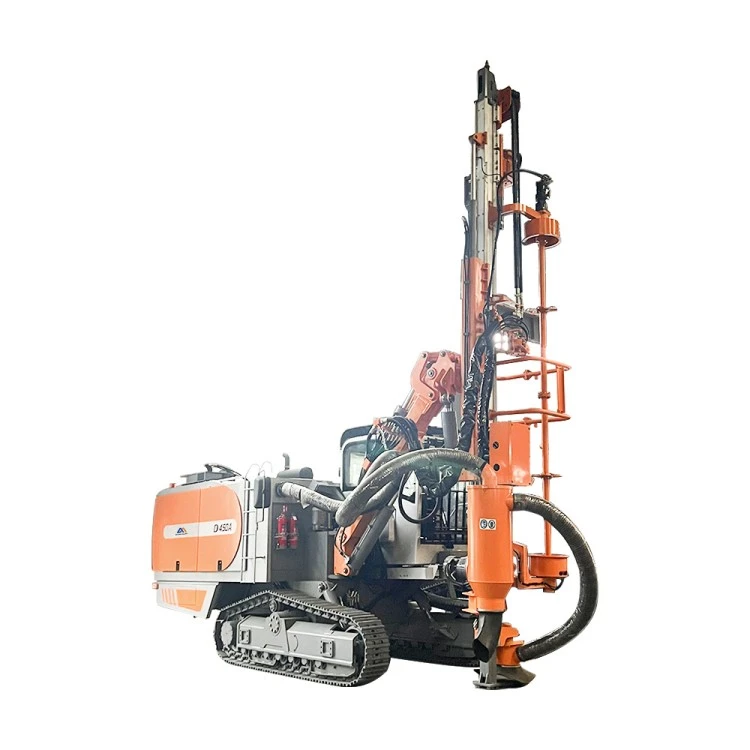

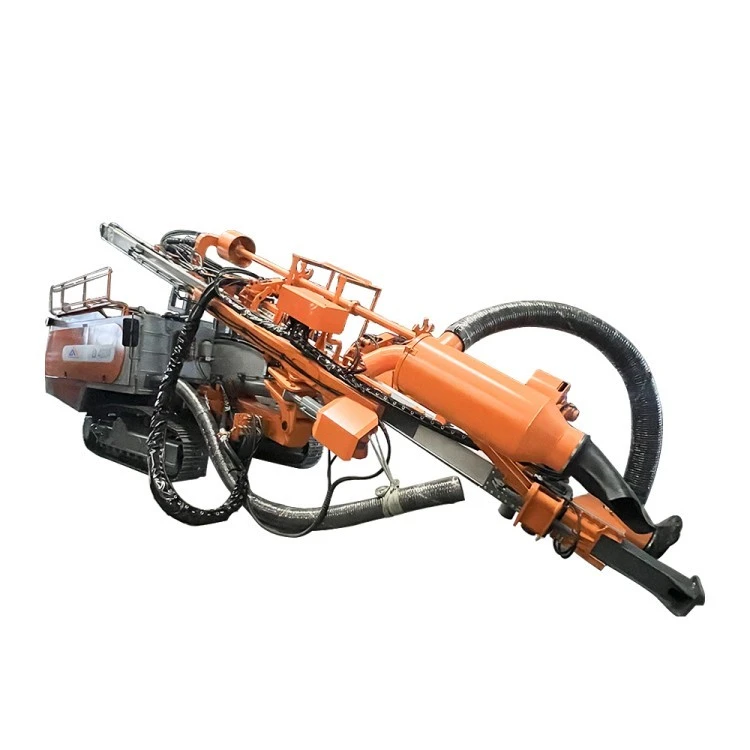

Kev sib xyaw qhib qhov Crawler Down-the-Hole Drilling Rigs yog cov tshuab ua haujlwm siab, tsim los rau kev xav tau cov chaw txua txiag zeb thiab cov mining, suav nrog D450A thiab D460A qauv. Ua rau ntawm lub platform pov thawj, cov crawler-type drilling rigs ua ke cov huab cua zoo tshaj plaws thiab lub peev xwm siab, muab kev lag luam zoo drilling thiab txhim kho cov khoom tsim tau. Engineered rau kev ua tau zoo, kev ntseeg siab, thiab kev saib xyuas yooj yim, DTH rigs yog qhov zoo tagnrho rau ntau hom kev siv drilling, suav nrog blasting qhov, pre-cracking qhov, vibration-damping qhov, thiab ultra-dub qhov kev ua haujlwm.
Nyob rau hauv lub plawv ntawm D460A thiab D450A qauv yog ib tug haib ob-theem compression cua compressor, optimized rau lub zog efficiency. Qhov no compressor, ua ke nrog lub siab-torque rotary lub taub hau xa 2,800Nm ntawm torque, ua kom ceev thiab zoo pob zeb drilling ntawm huab cua siab. Kev sib koom ua ke ntawm kev xyaum rigs kuj khav theeb tshwj xeeb roj kev lag luam, muab kev txuag hluav taws xob thiab txo kev cuam tshuam ib puag ncig. Nrog rau lawv qhov hnyav dua thiab tsim qauv tsim, cov rigs no tau txav tau yooj yim, ua rau nws yooj yim dua los hloov lawv ntawm qhov chaw tsim kho thiab chaw txua txiag zeb, ntxiv dag zog rau kev ua haujlwm yooj yim.
Nta
Cov dth drilling rig tshuab rau kev tsuas yog nruab nrog cov khoom noj khoom haus ruaj khov, ua kom yooj yim rau kev vam meej los ntawm kev tsim khoom drilling mus rau cov dej num ntxiv. Kev sib koom ua ke cov hammers khov kho nyob rau hauv qhov sib sib zog nqus nrog lub zog cua compressors lav lub rig qhov ua tau zoo, txawm tias nyob rau hauv cov xwm txheej hnyav tshaj plaws. Engineered rau endurance nyob rau hauv loj quarries, lub D450A thiab D460A khav theeb unmatched kev cia siab thiab efficiency.
Ib tug xov tooj ntawm cov qauv tsim tseem ceeb paub qhov txawv ntawm cov rigs no. Nruab nrog tus qauv 4-meter xyaum kav, cov rigs yog tsim los kom luv lub sij hawm xav tau los hloov lub laum me ntsis thiab txhim kho tus nqi ntawm perforation. Lub cav tsim rau kev ua kom qeeb qeeb kom paub meej qhov chaw thiab muaj zog braking ntau, lav qhov kev hloov kho meej hauv cov kav dej tho. Featuring ib tug yuam lubrication roj twj tso kua mis, cov ntsia hlau compressor lub taub hau lub durability thiab kev ua tau zoo yog boosted los ntawm kev txhim kho lubrication.
Lub crawler dth drilling rig txoj kev khaws cia yog yooj yim los ntawm kev tsim qauv tsim, muab qhov chaw dav dav rau kev nkag mus rau qhov chaw tu qhov tseem ceeb. Cov cim pov thawj ntawm cov kav roj thiab cov kab hluav taws xob tau lees tias kev saib xyuas tsis muaj zog. Ua ntej tus neeg teb xov tooj muaj kev nyab xeeb thiab kev nplij siab, lub kaw lus muaj cov txheej txheem los tiv thaiv yob, lub tsheb tav xis nrog kev poob siab, thiab cov yam ntxwv uas txo qis suab nrov, ua tiav los ntawm ib puag ncig iav uas ua kom pom qhov dav ntawm qhov chaw ua haujlwm.
Lub D460A thiab D450A crawler dth drilling rigs kuj tseem muaj cov kev tswj hwm zoo tshaj plaws electromechanical-hydraulic, ua haujlwm yooj yim rau tus neeg teb xov tooj. Tag nrho LCD loj-screen zaub muab cov khoom siv raws li lub sijhawm tiag tiag, thiab lub kaw lus suav nrog ntau lub tswb thiab tsis siv neeg kaw kev tiv thaiv kom muaj kev nyab xeeb thiab txhim khu kev qha. Lub tshuab nqus plua plav uas muaj lub zog siab, ua ke nrog thaj chaw lim loj, ua kom pom cov plua plav kom zoo, tswj xyuas qhov chaw ua haujlwm huv thiab nyab xeeb.
Specifications
| Qhov ntau yam: | Φ115 - 152 mm | Hydraulic lub tog raj kheej + Hlau hlua pub system | |
| Pom zoo DTH rauj loj: | 4" / 5" | Tag nrho ntev: | 9, 000 mm |
| Drill pipe tuav peev xwm: | 6+1 | Mus ncig ntev: | 5,600 hli |
| Drill yeeb nkab sab nraud txoj kab uas hla: | Φ102 hli | Feed extension: | 1,300 hli |
| Drill pipe length: | 5m (yeem 6m lossis 7m) | Qhov siab tshaj plaws pub mis: | 0.88 m / s |
| Qhov siab tshaj plaws qhov tob nrog Auto tuav: | 35 m | Qhov siab tshaj plaws pub mis: | 34.5kn ua |
| Kev sib hloov ceev: | 0 - 105 rpm | Maximum rub lub zog: | 67,6kn ua |
| Maximum torque: | 4,435 N.m | Track frame: | nrog oscillation |
| Diesel cav: | Cummins | Maximum Tramming ceev: | 3 km / h |
| L9CS4 400C | |||
| Rated zog: | 294 kW (395 hp) | Maximum Traction quab yuam: | 156.2kn ua |
| Emission txheem: | Tier Ⅳ / Euro theem ⅣA ua raws | Slope climbing peev xwm: | 25 degree |
| Roj tank peev xwm: | 750 L | Track frame oscillation angle: | ± 10 degree |
| Cua compressor: | ZEGA ZGDB 138 III OH | Av clearance: | 420 hli |
| Ua haujlwm siab tshaj plaws: | 21 bar (305 psi) | Qhov hnyav: | 22, 000 kg |
| Peev FAD: | 19 m 3 / min | Ntev: | 11,550 mm |
| Hom Boom: | Heavy luag hauj lwm ib leeg boom | Dav: | 2,700 hli |
| Feed beam: | High zog aluminium alloy | Qhov siab: | 3, 560 mm |
Daim ntawv thov
Nruab nrog tus qauv pub khoom noj, tus qauv ua haujlwm no ua tau zoo tshaj plaws hauv kev tsim khoom drilling thiab kev pabcuam drilling xws li hauv qab lub qhov drilling. Kev txhim khu kev qha down-lub-qhov rauj yog txuam nrog cov cua compressors muaj zog - ib pab neeg ua pov thawj thiab muaj txiaj ntsig txawm nyob rau hauv qhov hnyav tshaj plaws mining.
Shipping & Them Nyiaj
Txhua daim ntawm Miningwell cov cuab yeej thiab cov khoom siv drilling tau dhau los ua kev kuaj xyuas kev nyab xeeb kom ruaj ntseg ntawm cov khoom thauj hauv lub thawv.
Peb txoj kev them nyiaj: credit card, L / C, T / T, Western Union, thiab peb txhawb nqa shipping los ntawm huab cua thiab hiav txwv.
